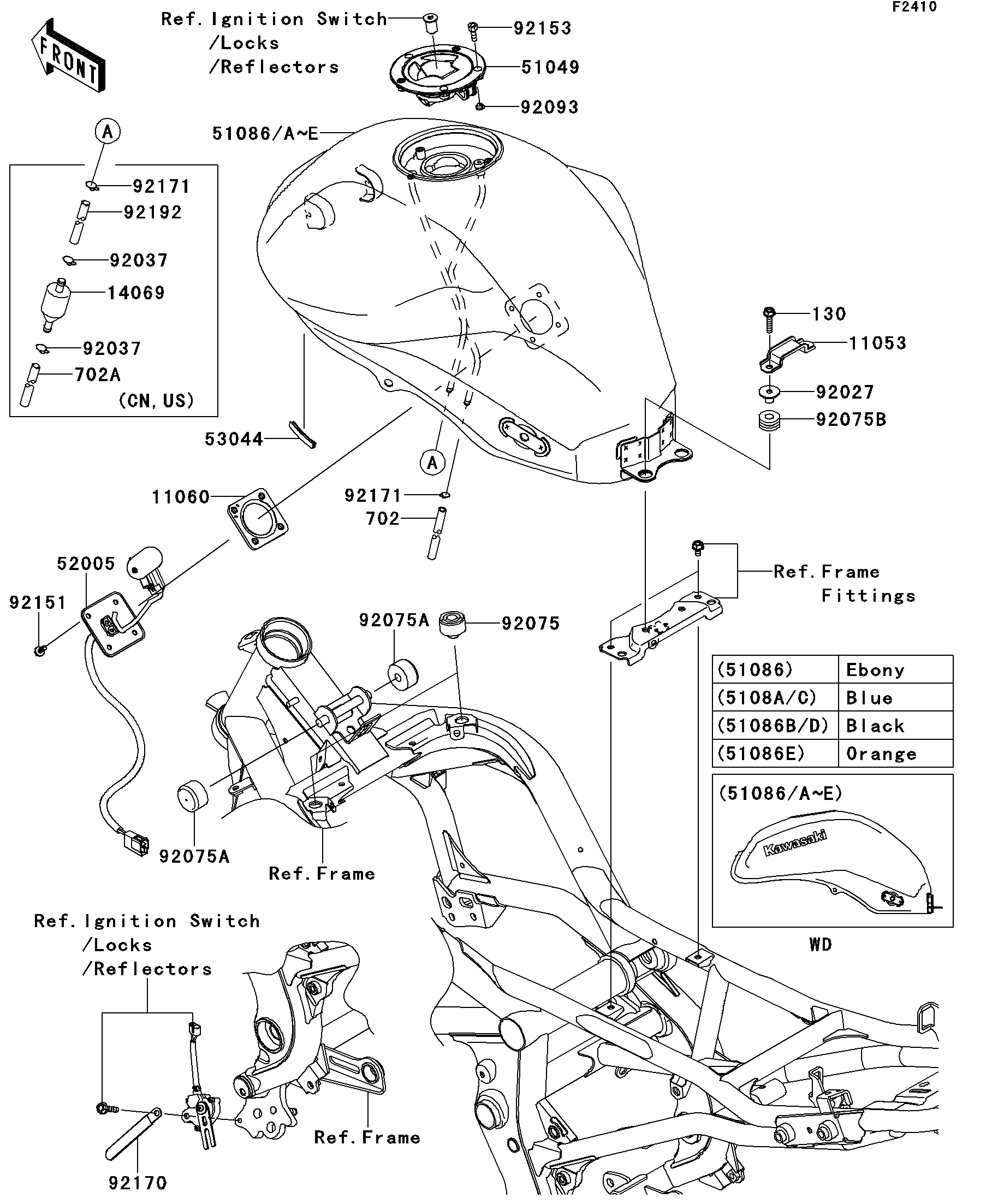

2010 ER-6n - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11060
11060
14069
14069
51049
51049
51086
51086
51086B
51086B
51086D
51086D
51086E
51086E
52005
52005
53044
53044
92027
92027
92037
92037
92037
92037
92075
92075
92075A
92075A
92075A
92075A
92075B
92075B
92093
92093
92151
92151
92153
92153
92170
92170
92171
92171
92171
92171
92192
92192
130
130
702
702
702A
702A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT 11053 11053-1812 1
GASKET,FUEL GAUGE 11060 11060-1952 1
BREATHER,FUEL TANK 14069 14069-1004 1 CN,US
CAP-TANK,FUEL 51049 51049-0039 1
TANK-COMP-FUEL,EBONY 51086 51086-5160-H8 1 CN
TANK-COMP-FUEL,M.F.S.BLACK 51086B 51086-5160-15V 1 US
TANK-COMP-FUEL,M.F.S.BLACK 51086D 51086-5161-15V 1 CA
TANK-COMP-FUEL,P.B.ORANGE 51086E 51086-5375-848 1 CN
GAUGE,FUEL 52005 52005-0076 1
TRIM,L=60 53044 53044-1249 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP,TUBE 92037 92037-147 2 CN,US
DAMPER 92075 92075-015 2
DAMPER,FUEL TANK 92075A 92075-125 2
DAMPER 92075B 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,5X12 92151 92151-1599 4
BOLT,SOCKET,5X16 92153 92153-1616 3
CLAMP 92170 92170-1925 1
CLAMP,8X0.7 92171 92171-1973 1 CA
CLAMP,8X0.7 92171 92171-1973 2 CN,US
TUBE,6X9X500 92192 92192-0733 1 CN,US
BOLT-FLANGED,6X25 130 130BB0625 2
TUBE-RUBBER,6X9X690 702 702A06690 1
TUBE-RUBBER,7X10X100 702A 702A07100 1 CN,US
