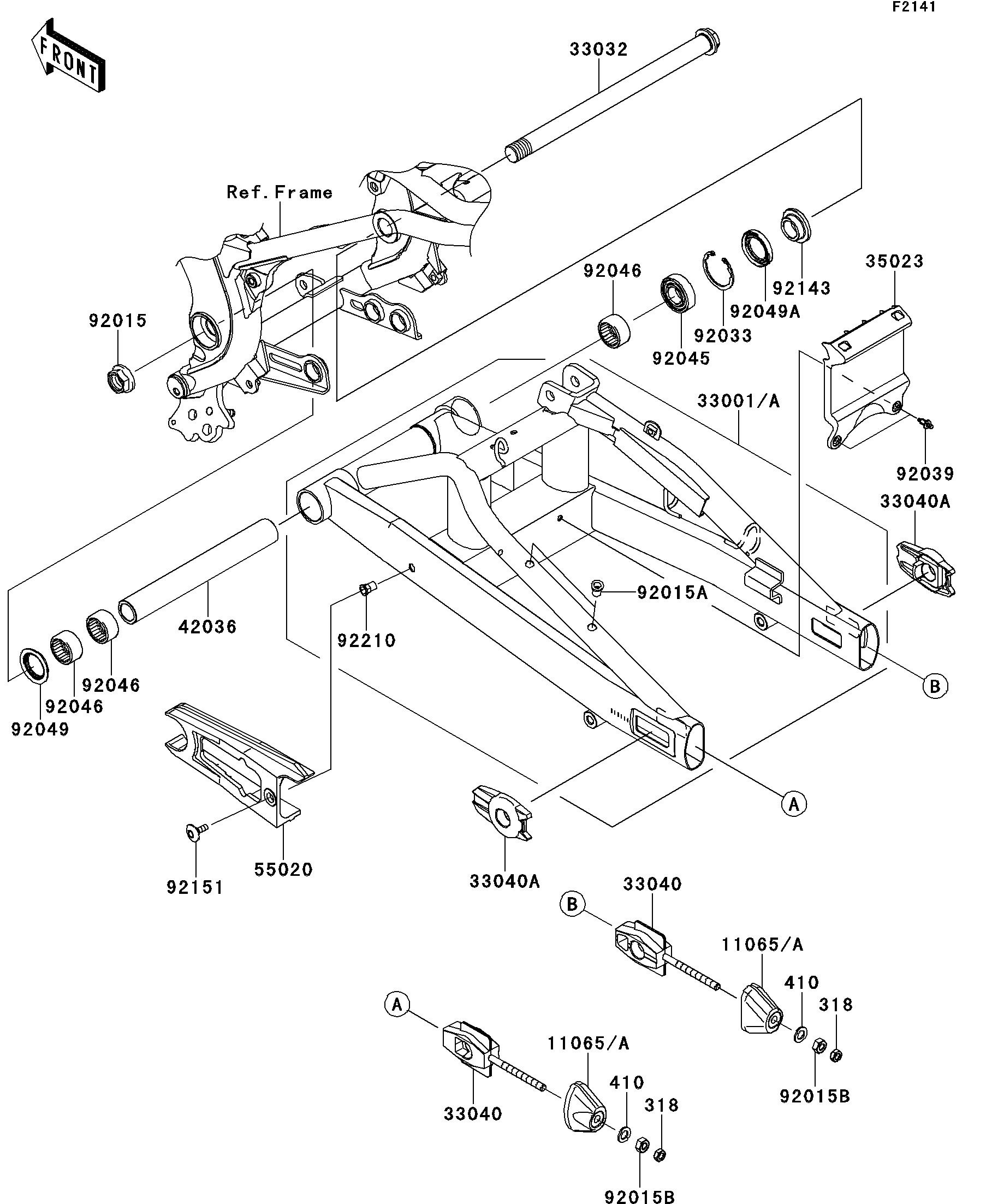

2010 ER-6n - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
33001
33032
33040
33040
33040A
33040A
35023
42036
55020
92015
92015A
92015B
92015B
92033
92039
92045
92046
92046
92046
92049
92049A
92143
92151
92210
318
318
410
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CHAIN ADJUSTER,BLACK 11065 11065-0258-10 2
ARM-COMP-SWING,BLACK 33001 33001-0161-10 1
SHAFT-SWING ARM 33032 33032-1142 1
ADJUSTER-CHAIN,INNER 33040 33040-0025 2
ADJUSTER-CHAIN,OUTER,P.SILVER 33040A 33040-0026-458 2
FENDER-REAR,SWING ARM 35023 35023-0149 1
SLEEVE,SWING ARM,L=219.5 42036 42036-0066 1
GUARD,CHAIN 55020 55020-0192 1
NUT,FLANGED,20MM 92015 92015-1724 1
NUT,POP,6MM 92015A 92015-1759 2
NUT,8MM 92015B 92015-1959 2
RING-SNAP,42MM 92033 92033-1041 1
RIVET 92039 92039-0023 2
BEARING-BALL,6004UL11 92045 92045-0017 1
BEARING-NEEDLE,7E-HVS 28X34X17 92046 92046-0008 3
SEAL-OIL 92049 92049-0132 1
SEAL-OIL 92049A 92049-0138 1
COLLAR,SWING ARM,RH,L=12.5 92143 92143-1727 1
BOLT,SOCKET,6X18 92151 92151-1149 1
NUT,POP,6MM,L=15 92210 92210-1397 1
NUT-HEX-SMALL 318 318AB0800 2
WASHER-PLAIN-SMALL,8MM,BLACK 410 410AB0800 2
