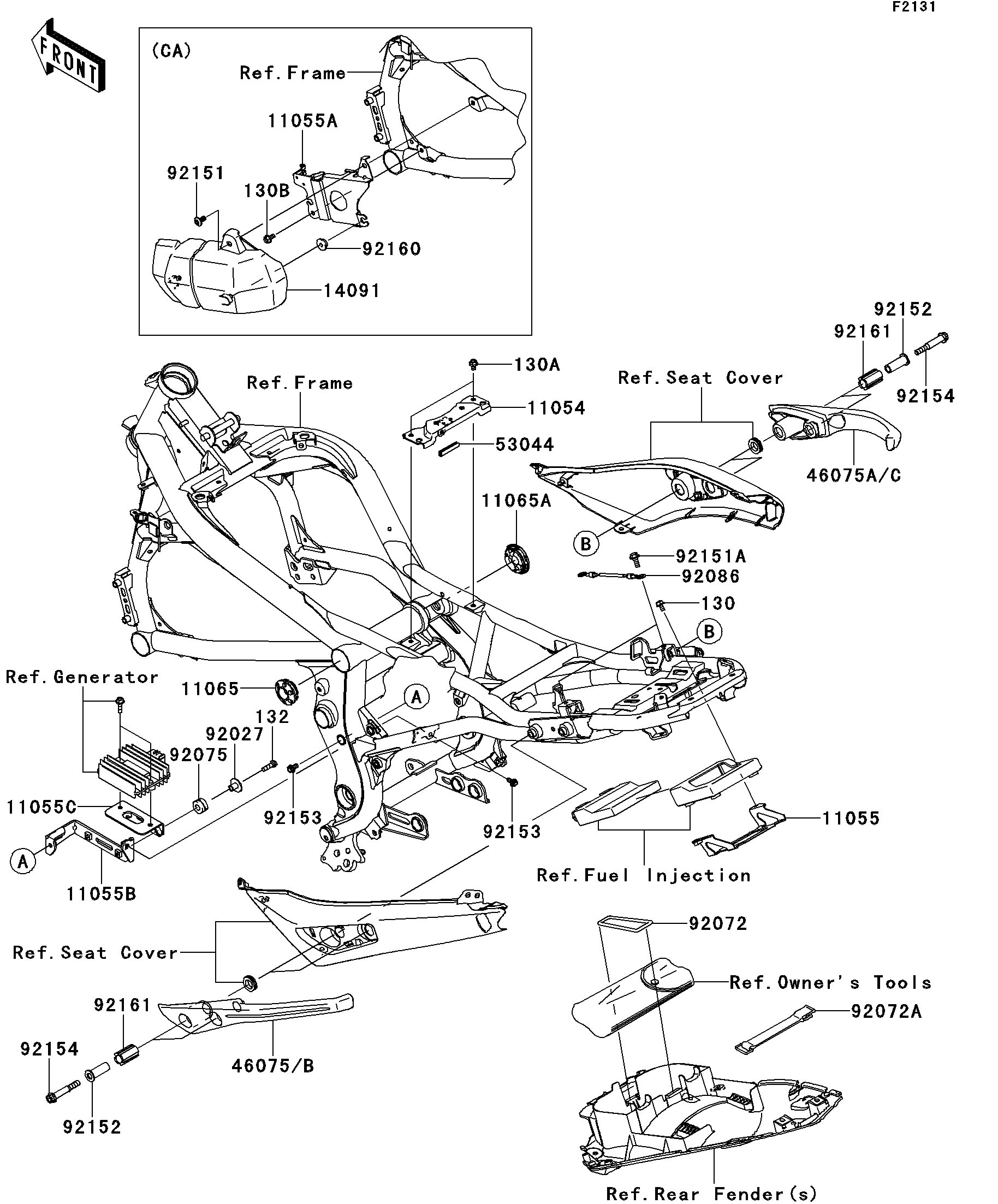

2010 ER-6n - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11054
11055
11055A
11055B
11055C
11065
11065A
14091
46075B
46075C
53044
92027
92072
92072A
92075
92086
92151
92151A
92152
92152
92153
92153
92154
92154
92160
92161
92161
130
130A
130B
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK 11054 11054-0248 1
BRACKET,ECU 11055 11055-0584 1
BRACKET,CANISTER 11055A 11055-0586 1 CA
BRACKET,REGULATOR 11055B 11055-1131 1
BRACKET,REGULATOR 11055C 11055-1137 1
CAP,PIVOT COVER,LH,P.SILVER 11065 11065-0257-458 1
CAP,PIVOT COVER,RH,P.SILVER 11065A 11065-0264-458 1
COVER,CANISTER 14091 14091-1586 1 CA
GRIP,TANDEM,LH 46075B 46075-0097 1
GRIP,TANDEM,RH 46075C 46075-0098 1
TRIM,L=40 53044 53044-1174 1
COLLAR,L=13.1,BLACK 92027 92027-1450 2
BAND,TOOL 92072 92072-0108 1
BAND,L=150 92072A 92072-1203 1
DAMPER 92075 92075-209 2
WIRE,L=150 92086 92086-1075 2
BOLT,SOCKET,6X14 92151 92151-1654 1 CA
BOLT,FLANGED,6X13 92151A 92151-1703 2
COLLAR 92152 92152-0707 4
BOLT,SOCKET,6X16 92153 92153-1517 2
BOLT,SOCKET,8X60 92154 92154-0259 4
DAMPER 92160 92160-1613 2 CA
DAMPER 92161 92161-0663 4
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED,6X10 130A 130BB0610 2
BOLT-FLANGED,6X12 130B 130BB0612 1 CA
BOLT-FLANGED-SMALL,6X22 132 132BB0622 2
