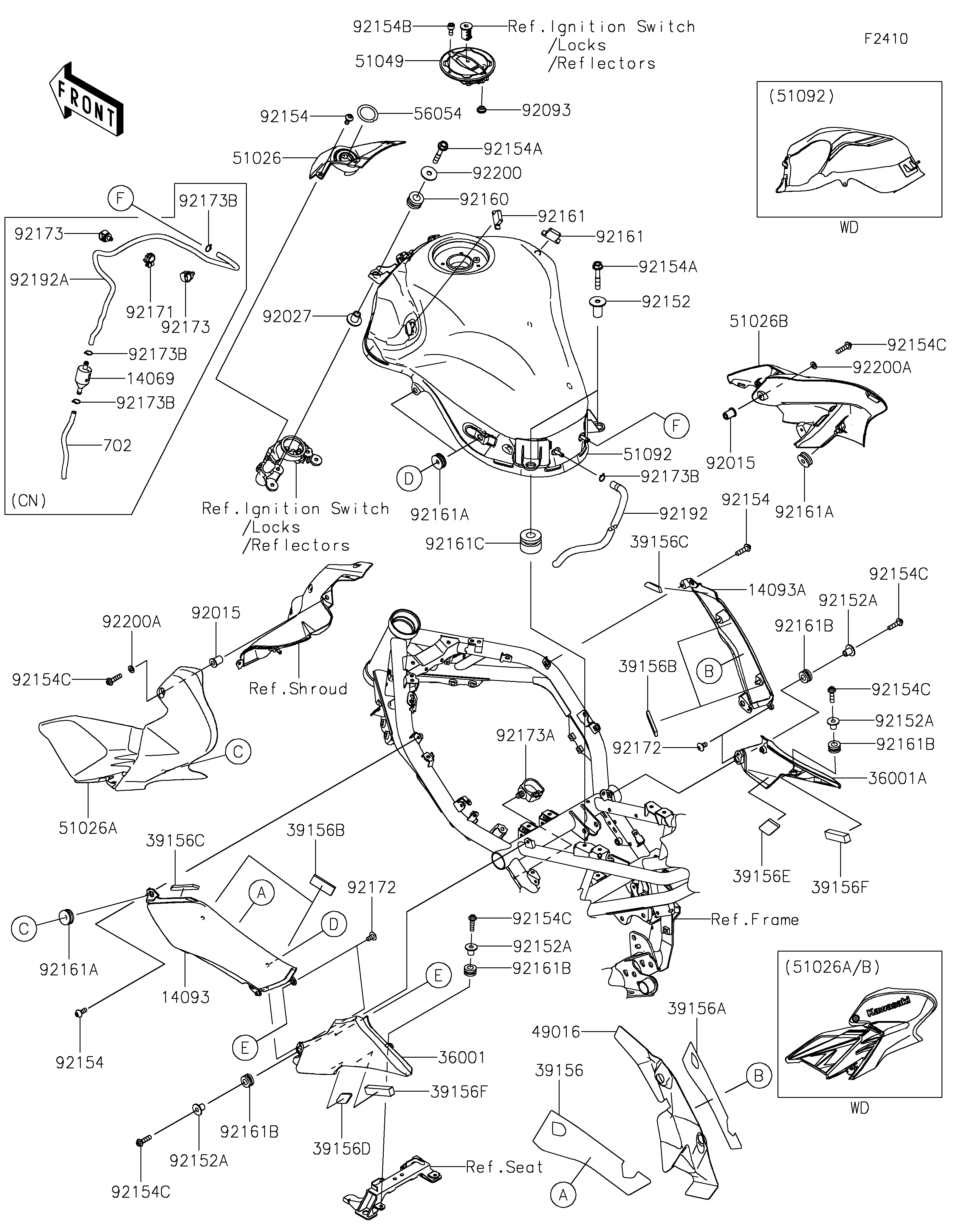

2022 Z900 SE - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
14093
14093
14093A
14093A
36001
36001
36001A
36001A
39156
39156
39156A
39156A
39156B
39156B
39156B
39156B
39156C
39156C
39156C
39156C
39156D
39156D
39156E
39156E
39156F
39156F
39156F
39156F
49016
49016
51026
51026
51026A
51026A
51026B
51026B
51049
51049
51092
51092
56054
56054
92015
92015
92015
92015
92027
92027
92093
92093
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92154
92154
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92154C
92160
92160
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161B
92161C
92161C
92172
92172
92172
92172
92173A
92173A
92192
92192
92200
92200
92200A
92200A
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,KNEE GRIP,LH 14093 14093-0667 1
COVER,KNEE GRIP,RH 14093A 14093-0668 1
COVER-SIDE,SEAT,LH,M.S.BLACK 36001 36001-0685-660 1
COVER-SIDE,SEAT,RH,M.S.BLACK 36001A 36001-0686-660 1
PAD,KNEE GRIP COVER,LH 39156 39156-2147 1
PAD,KNEE GRIP COVER,RH 39156A 39156-2148 1
PAD,20X50X5 39156B 39156-2191 4
PAD,10X76X5 39156C 39156-2192 2
PAD,20X20X5 39156D 39156-2194 1
PAD,25X50X5 39156E 39156-2195 1
PAD,15X66X10 39156F 39156-2215 2
COVER-SEAL 49016 49016-0683 1
COVER TANK,CNT 51026 51026-0013 1
COVER TANK,LH,M.S.BLACK 51026A 51026-5152-660 1
COVER TANK,RH,M.S.BLACK 51026B 51026-5153-660 1
CAP-TANK 51049 51049-0735 1
TANK-COMP-FUEL,M.S.BLACK 51092 51092-5010-660 1
MARK,IG. SWITCH 56054 56054-2963 1
NUT,WELL,5MM 92015 92015-1757 2
COLLAR,6.5X10X14.1 92027 92027-1183 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.3X12X22.6 92152 92152-2252 2
COLLAR,5.6X8X11.2 92152A 92152-2342 4
BOLT,SOCKET,5X12 92154 92154-4289 4
BOLT-FLANGED,6X35 92154A 92154-4290 4
BOLT-SOCKET,5X12 92154B 92154-4291 4
BOLT,SOCKET,5X20 92154C 92154-4301 6
DAMPER,10X20X12 92160 92160-1167 2
DAMPER 92161 92161-0365 2
DAMPER 92161A 92161-0588 6
DAMPER,8X16X8.6 92161B 92161-0685 4
DAMPER,12X28X21 92161C 92161-1468 2
SCREW,5X10 92172 92172-0864 4
CLAMP 92173A 92173-0861 1
TUBE,6X9X670/30 92192 92192-1688 1
WASHER,6.5X22X1.6 92200 92200-1087 2
WASHER,5.2X10X1 92200A 92200-2286 2
