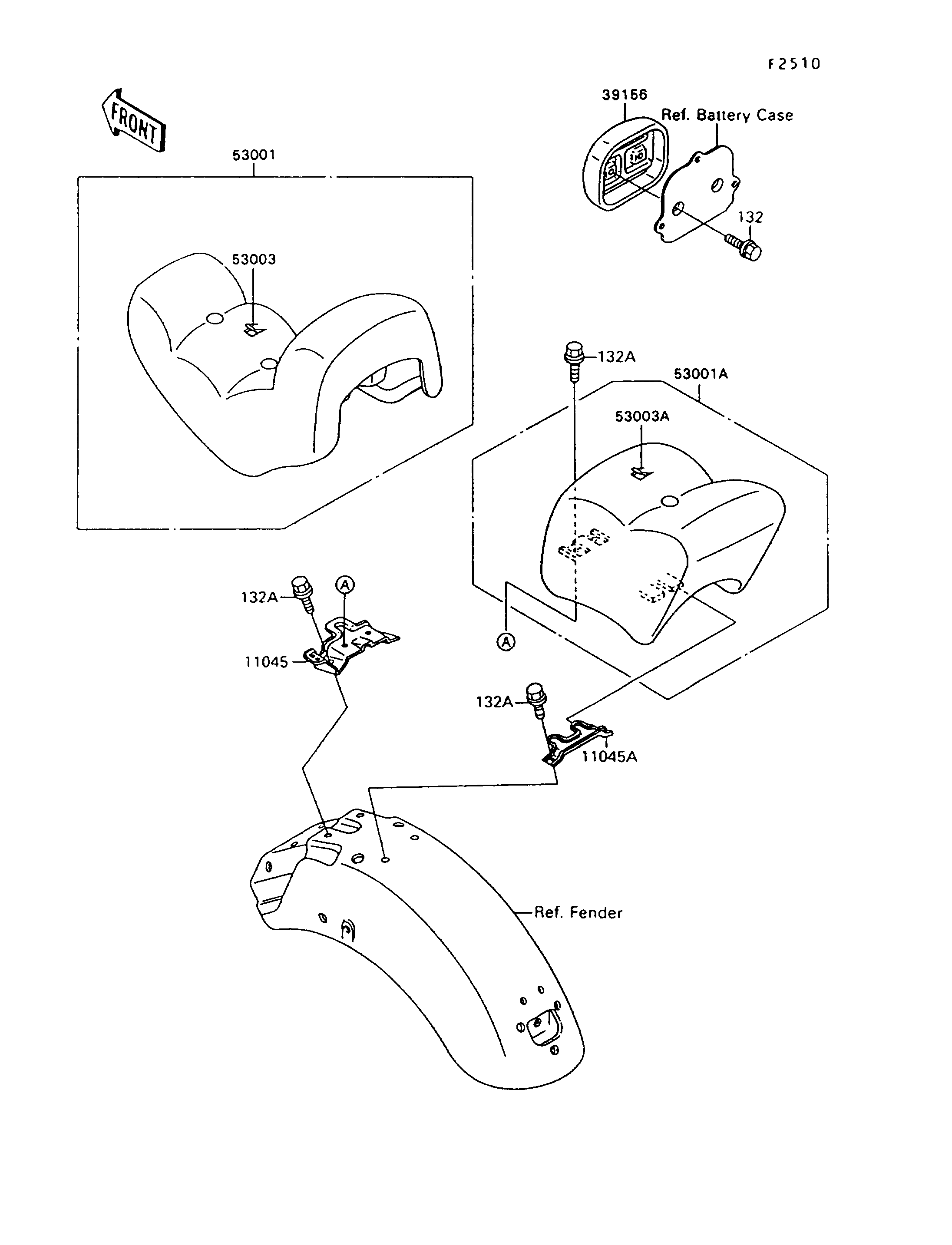

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X14 | 132 | 132E0614 | 2 | ||
| BOLT-FLANGED-SMALL | 132A | 132J0612 | 6 | ||
| BRACKET,REAR SEAT,FR | 11045 | 11045-1449 | 1 | ||
| BRACKET,REAR SEAT,RR | 11045A | 11045-1450 | 1 | ||
| PAD,BACK REST,BLACK | 39156 | 39156-1070-MA | 1 | ||
| SEAT-ASSY,FR,BLACK | 53001 | 53001-1499-MA | 1 | ||
| SEAT-ASSY,RR,BLACK | 53001A | 53001-1500-MA | 1 | ||
| LEATHER,FRONT SEAT,BLACK | 53003 | 53003-1189-MA | 1 | ||
| LEATHER,REAR SEAT,BLACK | 53003A | 53003-1190-MA | 1 |
