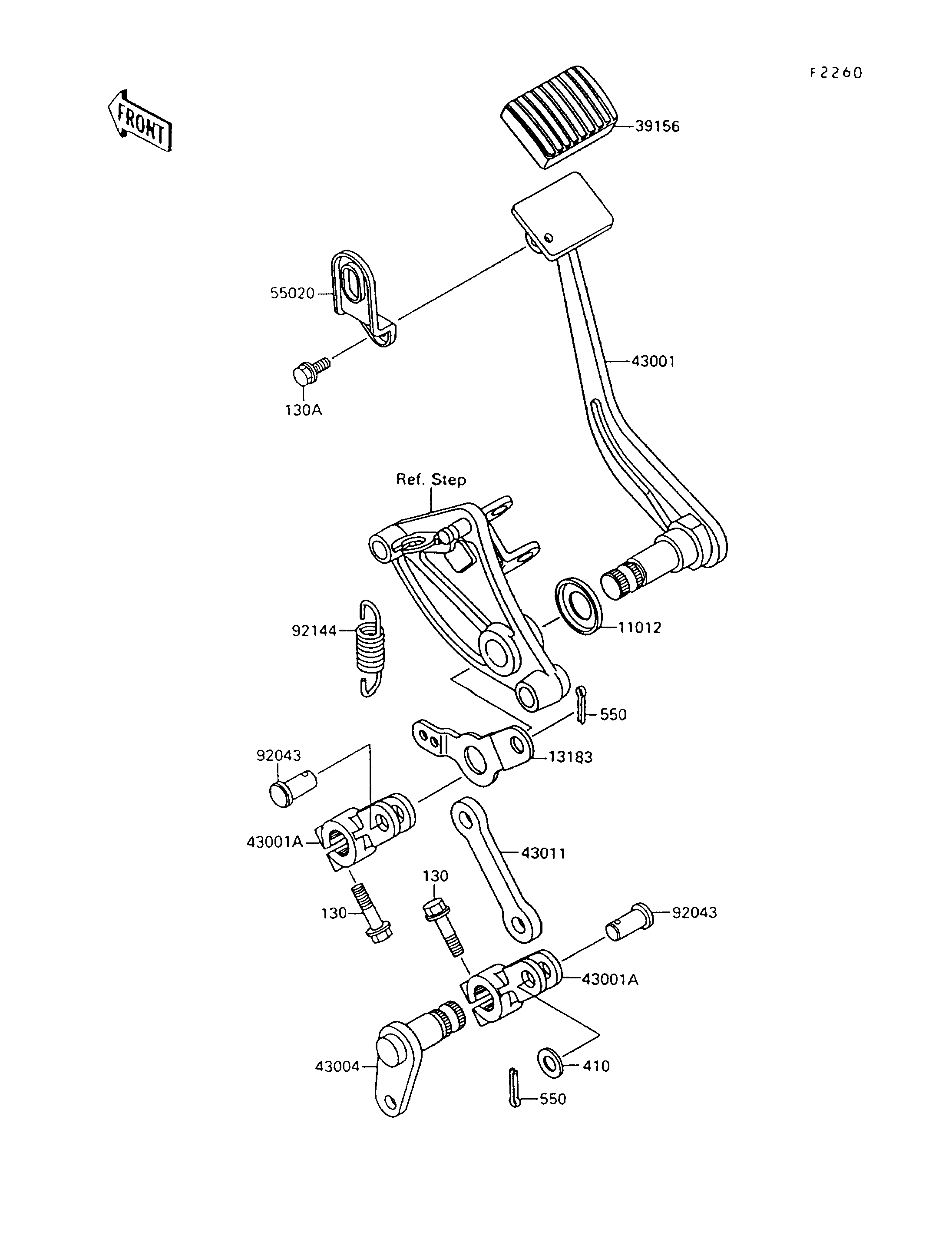

1998 Vulcan 1500 - Brake Pedal/Torque Link
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X25,BLACK | 130 | 130J0825 | 2 | ||
| BOLT-FLANGED,6X8 | 130A | 130N0608 | 1 | ||
| WASHER-PLAIN-SMALL,10MM,BLACK | 410 | 410F1000 | 1 | ||
| PIN-COTTER,2.0X15 | 550 | 550D2015 | 2 | ||
| CAP,BRAKE PEDAL | 11012 | 11012-1582 | 1 | ||
| PLATE,BRAKE PEDAL RETURN | 13183 | 13183-1099 | 1 | ||
| PAD,BRAKE PEDAL | 39156 | 39156-1071 | 1 | ||
| LEVER-BRAKE,PEDAL | 43001 | 43001-1222 | 1 | ||
| LEVER-BRAKE,LINK | 43001A | 43001-1223 | 2 | ||
| SHAFT-BRAKE | 43004 | 43004-1121 | 1 | ||
| ROD-BRAKE | 43011 | 43011-1137 | 1 | ||
| GUARD,BRAKE PEDAL | 55020 | 55020-1268 | 1 | ||
| PIN,10X20.5 | 92043 | 92043-1352 | 2 | ||
| SPRING,BRAKE PEDAL RETURN | 92144 | 92144-1169 | 1 |
