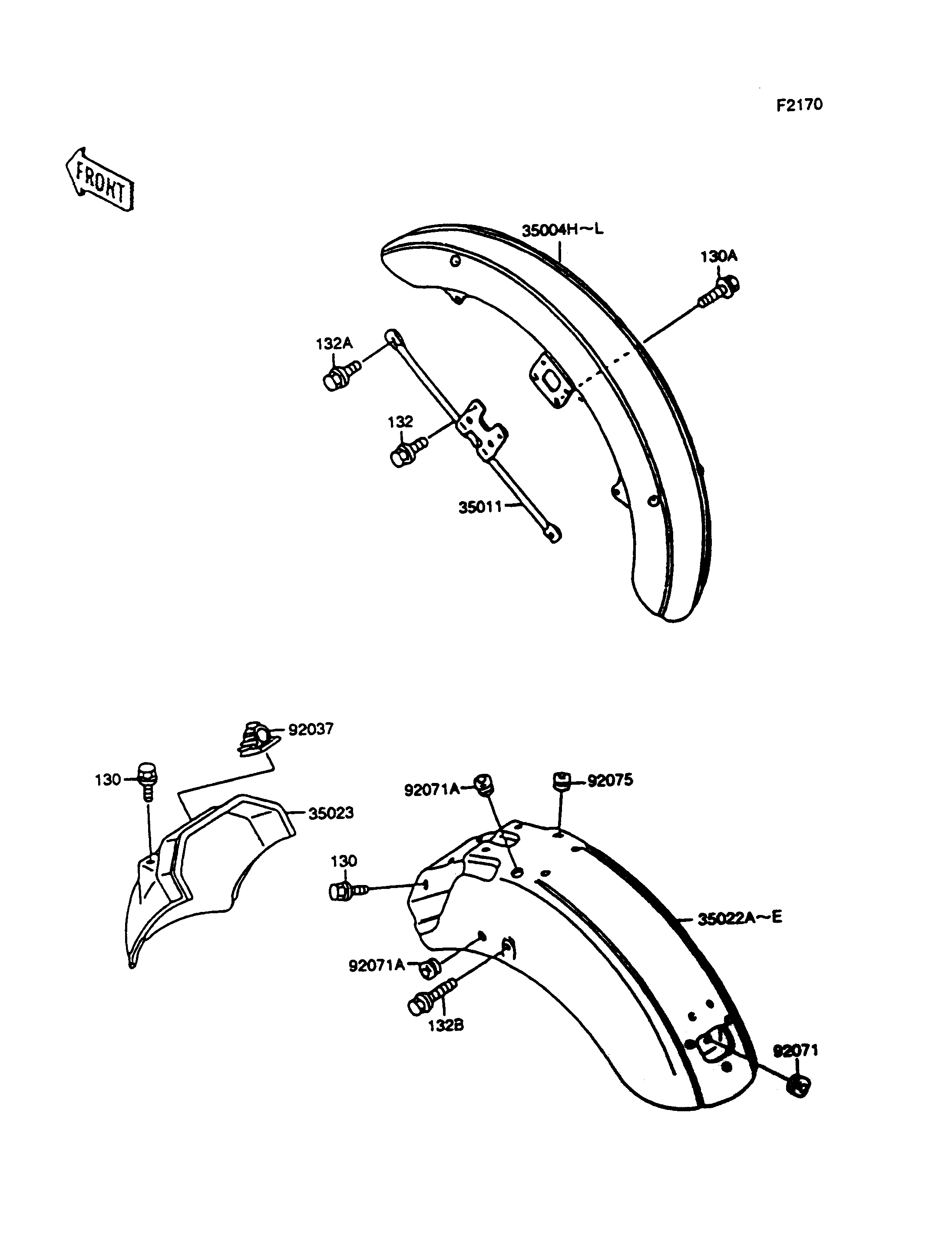

Parts Diagrams |
130
130
130
130
130A
130A
35004J
35004J
35011
35011
35022C
35022C
35023
35023
92037
92037
92071
92071
92071A
92071A
92071A
92071A
92075
92075
132
132
132A
132A
132B
132B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X12 | 130 | 130C0612 | 4 | ||
| BOLT-FLANGED | 130A | 130D0814 | 4 | ||
| FENDER-FRONT,EBONY/RED | 35004J | 35004-5110-2N | 1 | ||
| STAY,FRONT FENDER | 35011 | 35011-1333 | 2 | ||
| FENDER-COMP-REAR,RR,EBONY/RED | 35022C | 35022-5029-2N | 1 | ||
| FENDER-REAR,FR | 35023 | 35023-1189 | 1 | ||
| CLAMP,HARNESS | 92037 | 92037-1816 | 1 | ||
| GROMMET,13MM | 92071 | 92071-099 | 1 | ||
| GROMMET | 92071A | 92071-1148 | 3 | ||
| DAMPER | 92075 | 92075-294 | 1 | ||
| BOLT-FLANGED-SMALL,5X10 | 132 | 132E0510 | 4 | ||
| BOLT-FLANGED-SMALL | 132A | 132E0610 | 4 | ||
| BOLT-FLANGED-SMALL | 132B | 132E0840 | 2 |
| BOLT-FLANGED,6X12 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,EBONY/RED | |
| REF # | 35004J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,FRONT FENDER | |
| REF # | 35011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FENDER-COMP-REAR,RR,EBONY/RED | |
| REF # | 35022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,FR | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HARNESS | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,13MM | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,5X10 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
