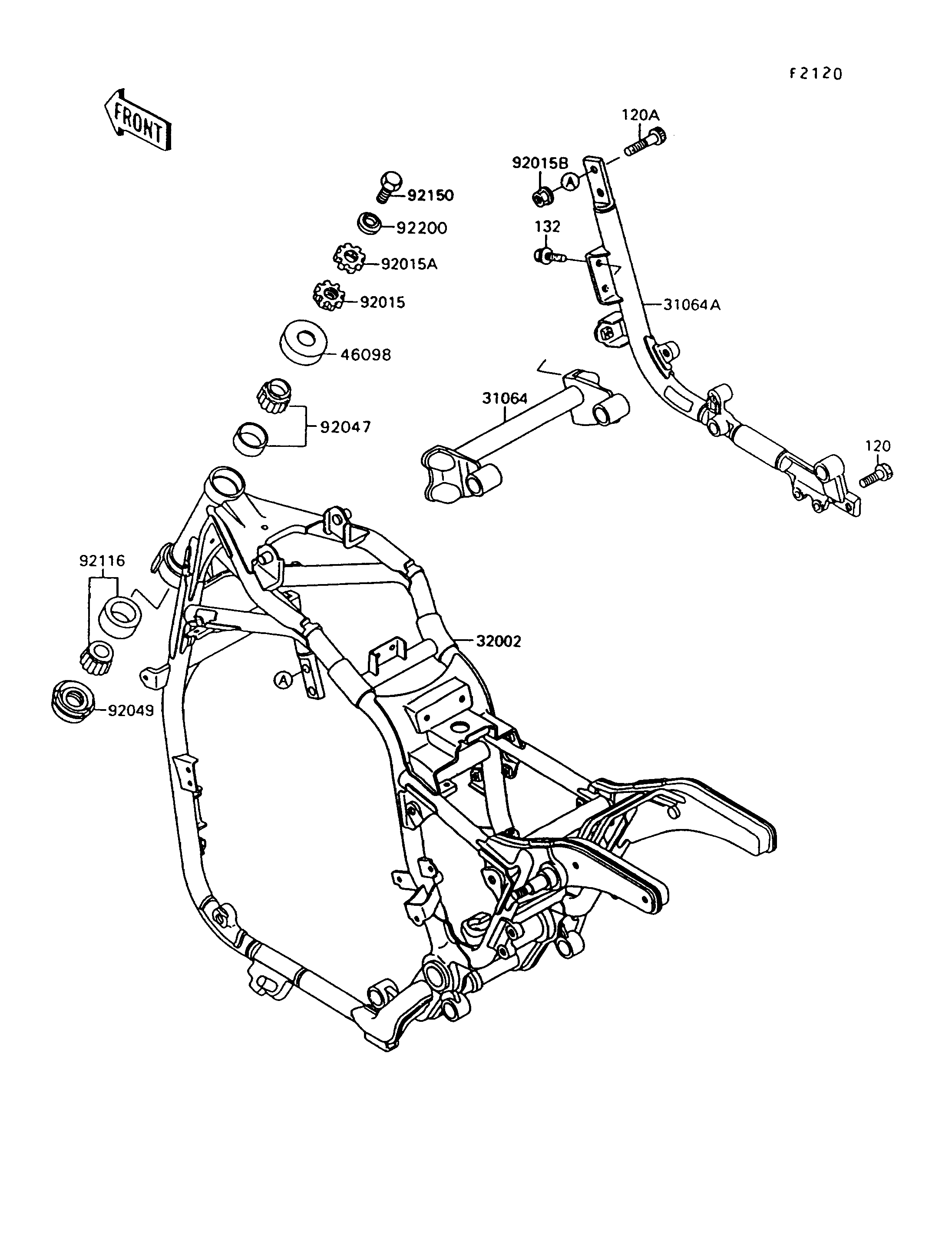

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET | 120 | 120S1020 | 2 | ||
| BOLT-SOCKET,10X30 | 120A | 120S1030 | 2 | ||
| BOLT-FLANGED-SMALL,8X16 | 132 | 132J0816 | 4 | ||
| PIPE-COMP,FRAME,CROSS | 31064 | 31064-1083 | 1 | ||
| PIPE-COMP,FRAME,RH | 31064A | 31064-1084 | 1 | ||
| FRAME-COMP | 32002 | 32002-1987 | 1 | ||
| CAP,STEERING STEM | 46098 | 46098-017 | 1 | ||
| NUT,25MM,T=10 | 92015 | 92015-1377 | 1 | ||
| NUT,25MM,T=6 | 92015A | 92015-1378 | 1 | ||
| NUT,FLANGED,10MM | 92015B | 92015-1669 | 2 | ||
| RACE,ROLLER,32005JR RS | 92047 | 92047-017 | 1 | ||
| SEAL-OIL,XMHE36X52X4J | 92049 | 92049-1162 | 1 | ||
| BEARING-ROLLER,HR320/28XJ | 92116 | 92116-1009 | 1 | ||
| BOLT,14X25 | 92150 | 92150-1672 | 1 | ||
| WASHER | 92200 | 92200-1140 | 1 |
| BOLT-SOCKET | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,10X30 | |
| REF # | 120A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,8X16 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP,FRAME,CROSS | |
| REF # | 31064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP,FRAME,RH | |
| REF # | 31064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP | |
| REF # | 32002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,STEERING STEM | |
| REF # | 46098 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,25MM,T=10 | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,25MM,T=6 | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RACE,ROLLER,32005JR RS | |
| REF # | 92047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,XMHE36X52X4J | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HR320/28XJ | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,14X25 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
