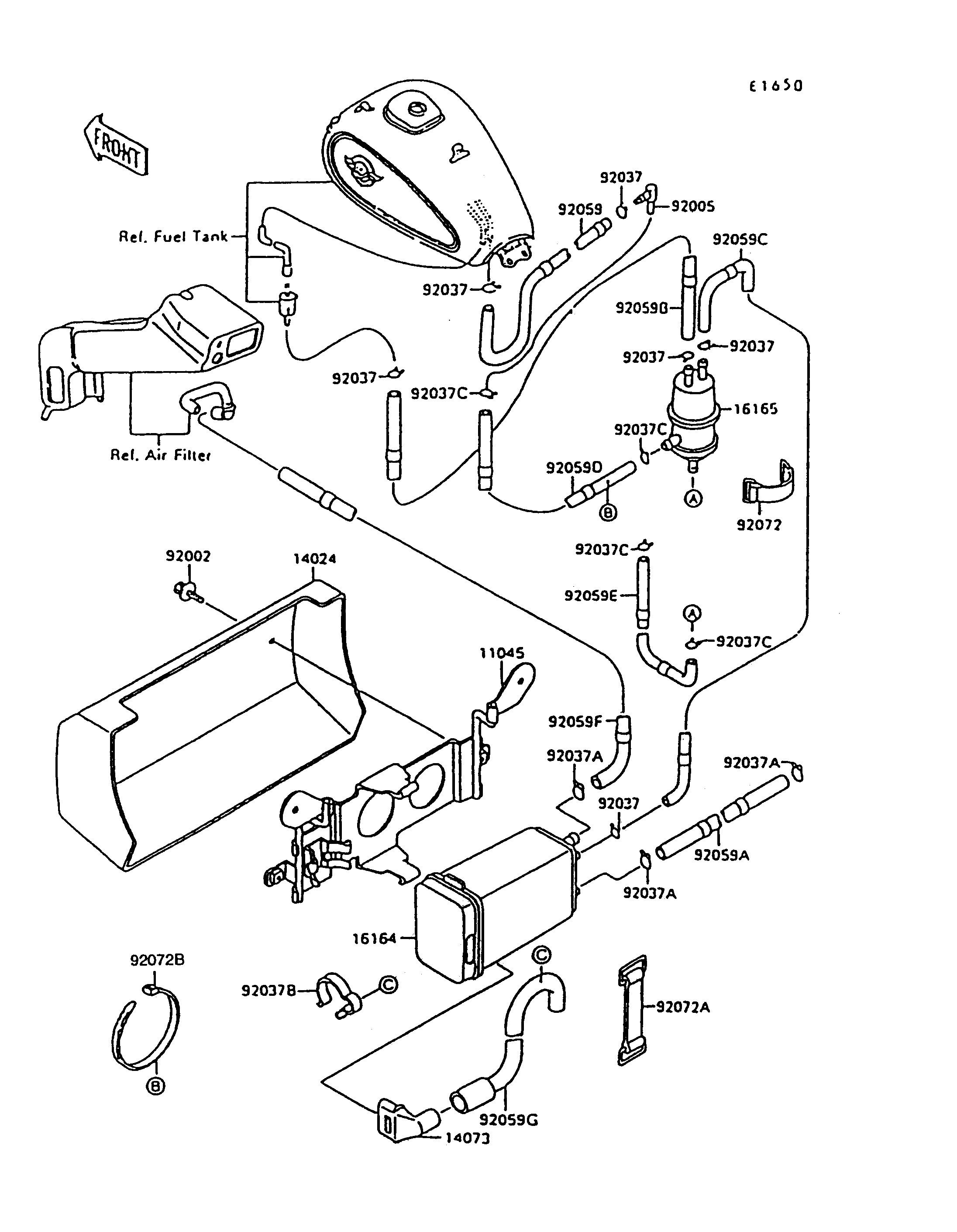

1998 Vulcan 1500 - Fuel Evaporative System
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CANISTER | 11045 | 11045-1930 | 1 | ||
| COVER,CANISTER | 14024 | 14024-1546 | 1 | ||
| DUCT,CANISTER | 14073 | 14073-1219 | 1 | ||
| CANISTER | 16164 | 16164-1070 | 1 | ||
| SEPARATOR | 16165 | 16165-1001 | 1 | ||
| BOLT,6X14 | 92002 | 92002-1108 | 2 | ||
| FITTING | 92005 | 92005-1138 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-010 | 6 | ||
| CLAMP,HOSE | 92037A | 92037-1104 | 3 | ||
| CLAMP,HOSE | 92037B | 92037-1689 | 1 | ||
| CLAMP | 92037C | 92037-1712 | 4 | ||
| TUBE,5X8X270,RED | 92059 | 92059-1401 | 1 | ||
| TUBE,7X12X940,YELLOW | 92059A | 92059-1414 | 1 | ||
| TUBE,5X8X1100,BLUE | 92059B | 92059-1442 | 1 | ||
| TUBE,CANISTER-SEPARATOR,BLUE | 92059C | 92059-1867 | 1 | ||
| TUBE,5X10X1100,RED | 92059D | 92059-1870 | 1 | ||
| TUBE,4X9X1087,WHITE | 92059E | 92059-1871 | 1 | ||
| TUBE,7X12X945,GREEN | 92059F | 92059-1872 | 1 | ||
| TUBE,CANISTER | 92059G | 92059-1876 | 1 | ||
| BAND,L=50 | 92072 | 92072-066 | 1 | ||
| BAND,L=100 | 92072A | 92072-071 | 1 | ||
| BAND,L=365 | 92072B | 92072-1197 | 1 |
