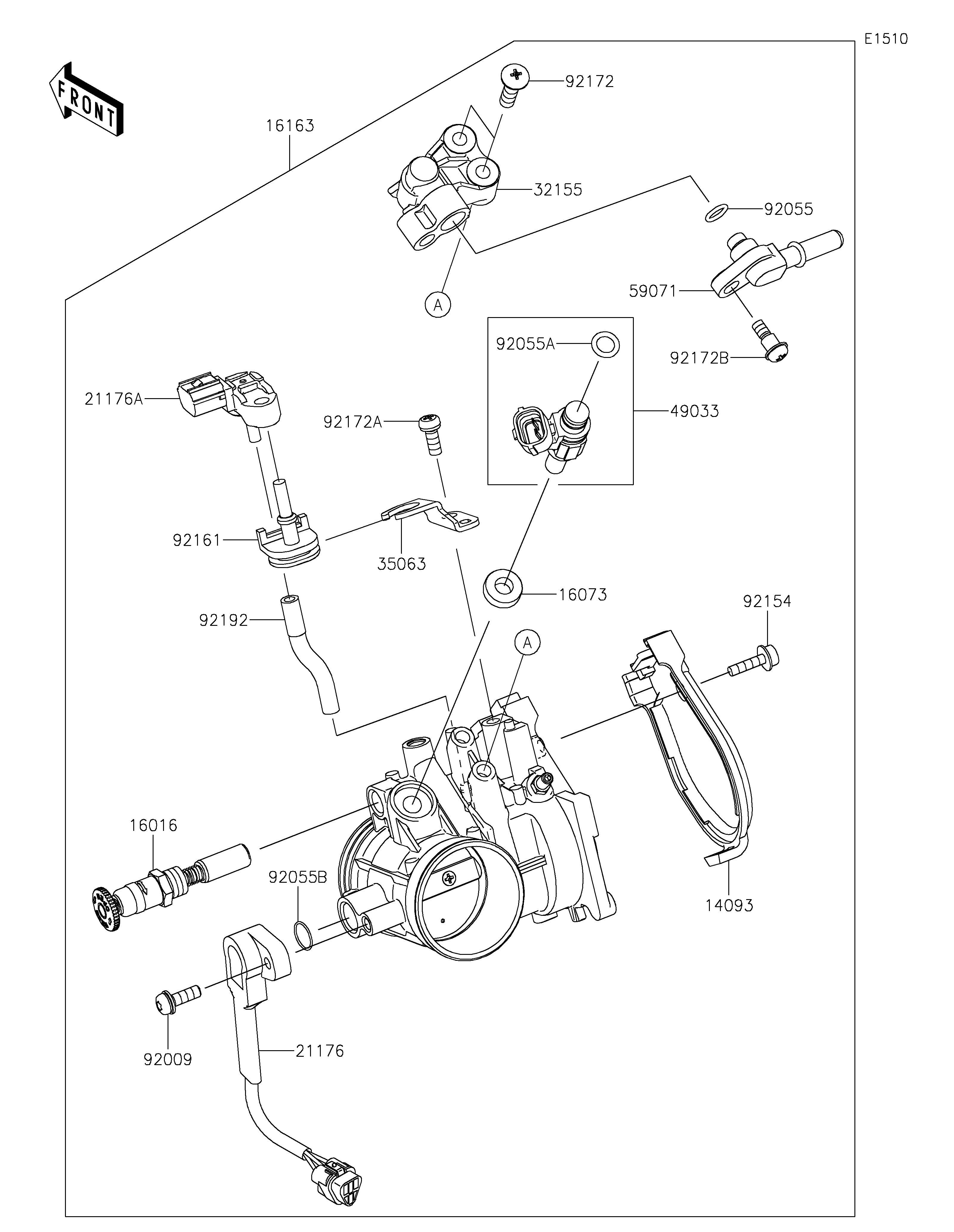

2021 KX™450X - Throttle

DOWNLOAD PDF
SELECT A NEW PART
14093
16016
16073
16163
21176
21176A
32155
35063
49033
59071
92009
92055
92055A
92055B
92154
92161
92172
92172A
92172B
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,THROTTLE DUST 14093 14093-0431 1
PLUNGER 16016 16016-0026 1
INSULATOR 16073 16073-0129 1
THROTTLE-ASSY 16163 16163-1209 1
SENSOR,THROTTLE POSITION 21176 21176-0893 1
SENSOR,PRESSURE 21176A 21176-0906 1
PIPE 32155 32155-3835 1
STAY 35063 35063-1471 1
NOZZLE-INJECTION 49033 49033-0561 1
JOINT 59071 59071-0760 1
SCREW,THROTTLE SENSOR 92009 92009-1981 1
RING-O 92055 92055-0064 1
RING-O,INJECTION NOZZLE 92055A 92055-0124 1
RING-O 92055B 92055-1671 1
BOLT 92154 92154-0133 1
DAMPER 92161 92161-0673 1
SCREW,PIPE INJECTION 92172 92172-0064 2
SCREW 92172A 92172-0393 1
SCREW 92172B 92172-0776 1
TUBE 92192 92192-1642 1
