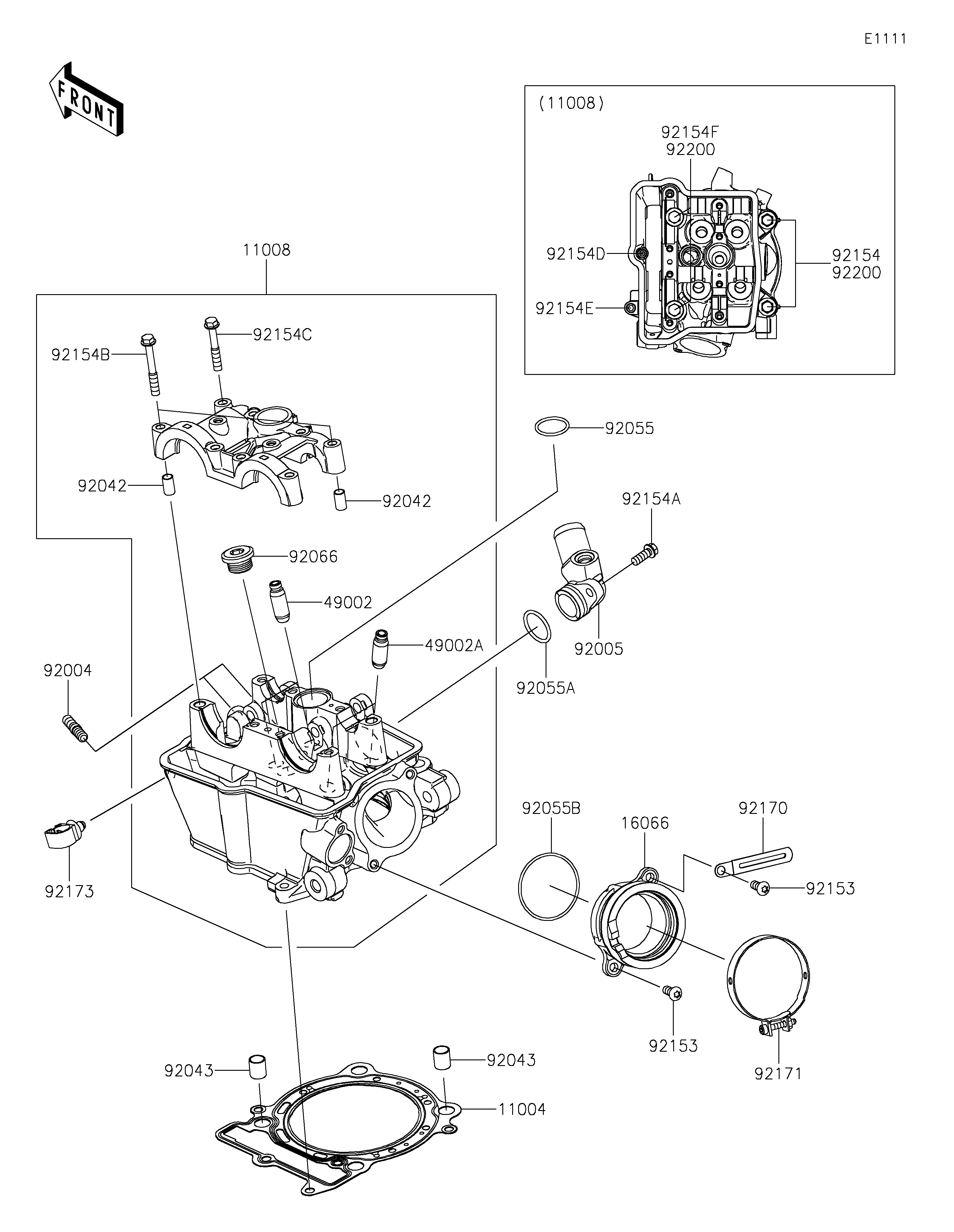

2021 KX™450X - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11008
16066
49002
49002A
92004
92005
92042
92042
92043
92043
92055
92055A
92055B
92066
92153
92153
92154
92154A
92154B
92154C
92154D
92154E
92154F
92170
92171
92173
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-0796 1
HEAD-COMP-CYLINDER 11008 11008-0975 1
HOLDER-THROTTLE BODY 16066 16066-0010 1
GUIDE-VALVE 49002 49002-0020 2
GUIDE-VALVE 49002A 49002-0042 2
STUD,8X22 92004 92004-0025 2
FITTING 92005 92005-0896 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O,23.5X2.0 92055 92055-0046 1
RING-O,22.1X2.4 92055A 92055-1081 1
RING-O,47X1.9 92055B 92055-1600 1
PLUG,18X10 92066 92066-0832 1
BOLT,TORX,6X14 92153 92153-0406 2
BOLT,FLANGED,10X127 92154 92154-2455 2
BOLT,FLANGED,6X16 92154A 92154-2965 1
BOLT,FLANGED,6X42 92154B 92154-2979 2
BOLT,FLANGED,6X35 92154C 92154-2983 6
BOLT,SOCKET,6X70 92154D 92154-3867 1
BOLT-SOCKET,6X25 92154E 92154-3960 1
BOLT,FLANGED,10X148 92154F 92154-4126 2
CLAMP 92170 92170-1514 1
CLAMP 92171 92171-1552 1
CLAMP,12MM DIA. 92173 92173-0736 1
WASHER,10.2X18.4X1.8 92200 92200-1691 4
