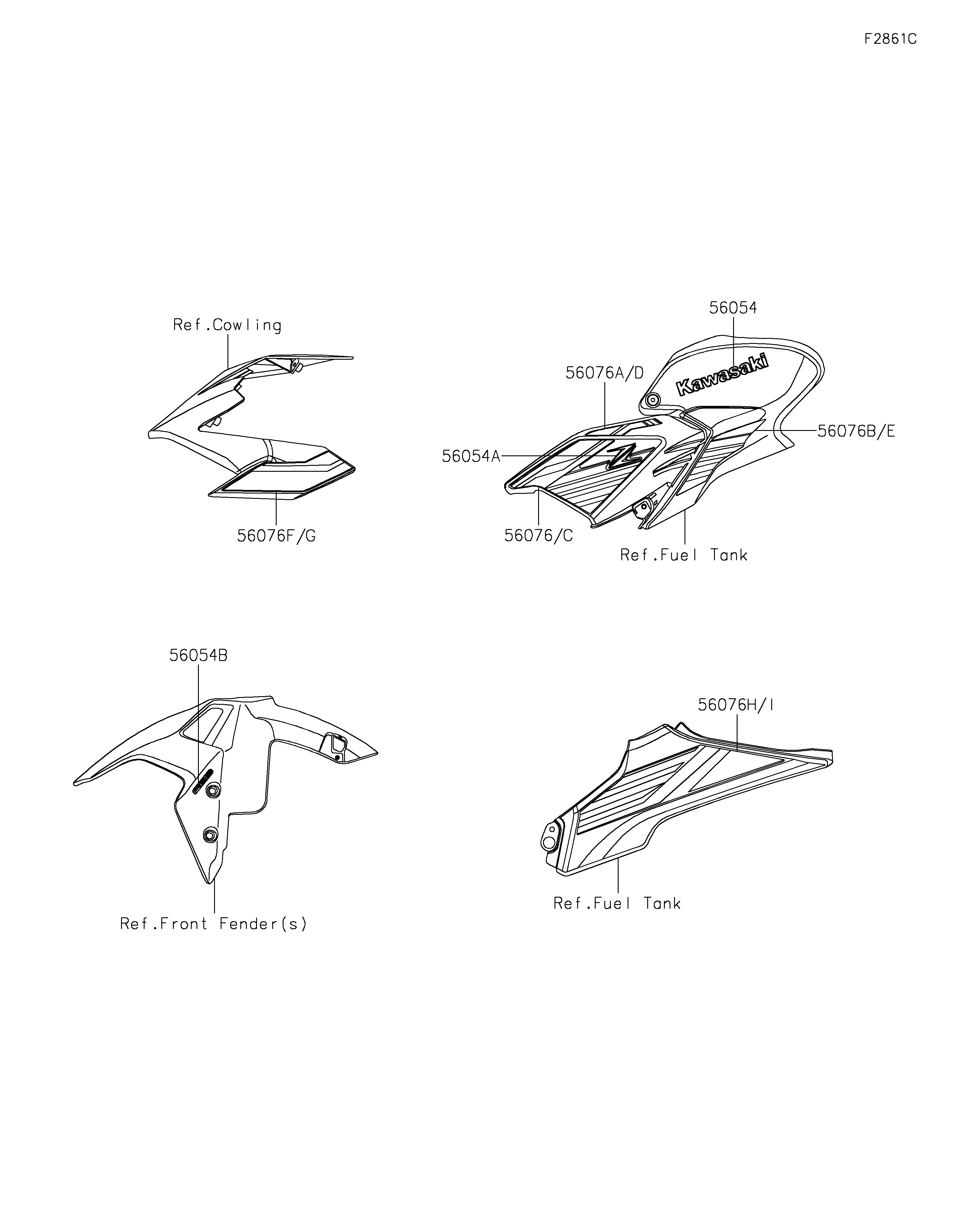

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56054 | 56054-1356 | 2 | ||
| MARK,SHROUD,Z,3D | 56054A | 56054-2369 | 2 | ||
| MARK,FR FENDER,ABS | 56054B | 56054-2699 | 2 | ||
| PATTERN,COVER TANK,LH,FR | 56076 | 56076-0879 | 1 | ||
| PATTERN,COVER TANK,LH,UPP | 56076A | 56076-0880 | 1 | ||
| PATTERN,COVER TANK,LH,RR | 56076B | 56076-0881 | 1 | ||
| PATTERN,COVER TANK,RH,FR | 56076C | 56076-0882 | 1 | ||
| PATTERN,COVER TANK,RH,UPP | 56076D | 56076-0883 | 1 | ||
| PATTERN,COVER TANK,RH,RR | 56076E | 56076-0884 | 1 | ||
| PATTERN,UPP COWL.,LH | 56076F | 56076-0885 | 1 | ||
| PATTERN,UPP COWL.,RH | 56076G | 56076-0886 | 1 | ||
| PATTERN,SIDE COVER,LH | 56076H | 56076-0887 | 1 | ||
| PATTERN,SIDE COVER,RH | 56076I | 56076-0888 | 1 |
