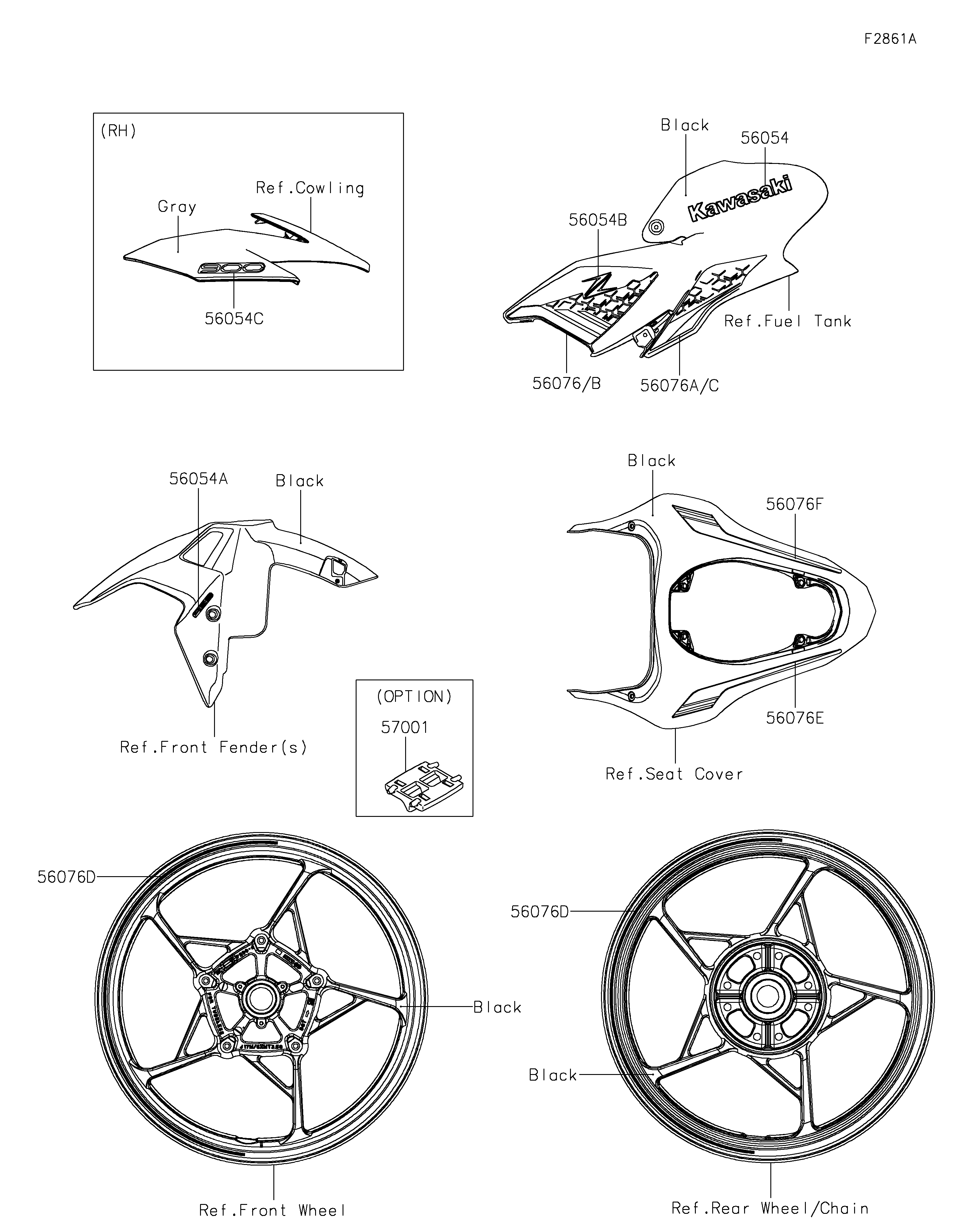

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56054 | 56054-1356 | 2 | ||
| MARK,FR FENDER,ABS | 56054A | 56054-1413 | 2 | ||
| MARK,SHROUD,Z,3D | 56054B | 56054-2369 | 2 | ||
| MARK,UPP COWL.,900 | 56054C | 56054-2694 | 1 | ||
| PATTERN,SHROUD,FR,LH | 56076 | 56076-0839 | 1 | ||
| PATTERN,SHROUD,RR,LH | 56076A | 56076-0840 | 1 | ||
| PATTERN,SHROUD,FR,RH | 56076B | 56076-0841 | 1 | ||
| PATTERN,SHROUD,RR,RH | 56076C | 56076-0842 | 1 | ||
| PATTERN,WHEEL,GRN/BLK,6X700 | 56076D | 56076-0843 | 4 | ||
| PATTERN,TAIL COVER,LH | 56076E | 56076-0869 | 1 | ||
| PATTERN,TAIL COVER,RH | 56076F | 56076-0870 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FR FENDER,ABS | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SHROUD,Z,3D | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWL.,900 | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,FR,LH | |
| REF # | 56076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,RR,LH | |
| REF # | 56076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,FR,RH | |
| REF # | 56076B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,RR,RH | |
| REF # | 56076C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GRN/BLK,6X700 | |
| REF # | 56076D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56076E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56076F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
