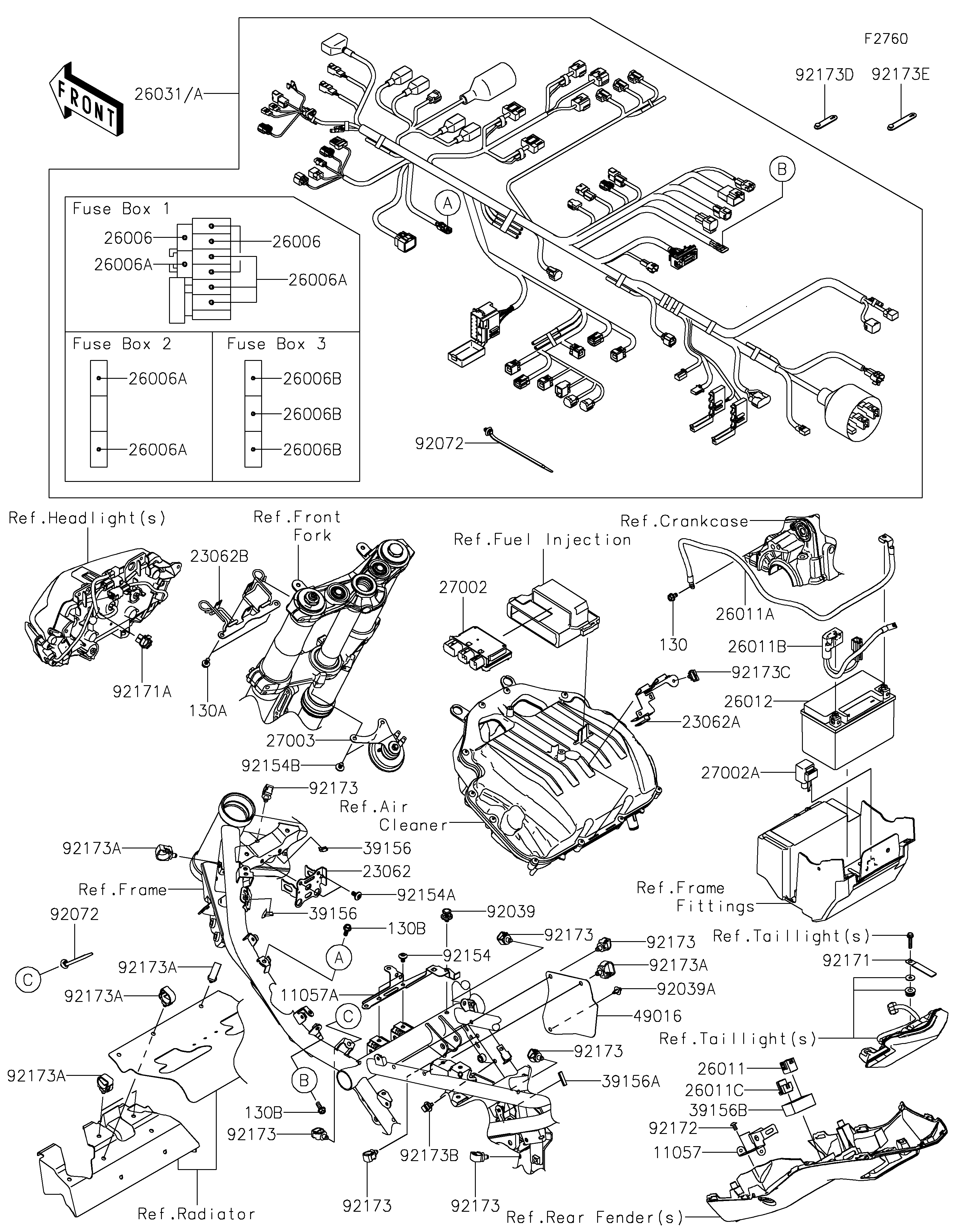

2020 Z900 ABS - Chassis Electrical Equipment
11057
11057
11057A
11057A
23062
23062
23062A
23062A
23062B
23062B
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
26031
26031
26031A
26031A
27002
27002
27002A
27002A
27003
27003
39156
39156
39156
39156
39156A
39156A
39156B
39156B
49016
49016
92039
92039
92039A
92039A
92072
92072
92072
92072
92154
92154
92154A
92154A
92154B
92154B
92171
92171
92171A
92171A
92172
92172
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173A
92173B
92173B
92173C
92173C
92173D
92173D
92173E
92173E
130
130
130A
130A
130B
130B
130B
130B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,RELAY | 11057 | 11057-0316 | 1 | ||
| BRACKET,MAIN HARNESS | 11057A | 11057-2699 | 1 | ||
| BRACKET-COMP,V.D. SENSOR | 23062 | 23062-0894 | 1 | ||
| BRACKET-COMP,A/C BOX | 23062A | 23062-1240 | 1 | ||
| BRACKET-COMP,FORK UPPER HOLDER | 23062B | 23062-1261 | 1 | ||
| FUSE,MINI BLADE,15A,BLUE | 26006 | 26006-0001 | 4 | ||
| FUSE,MINI BLADE,7.5A,BROWN | 26006A | 26006-0055 | 6 | ||
| FUSE,MINI BLADE,30A,GREEN | 26006B | 26006-1080 | 3 | ||
| WIRE-LEAD,CONNECTOR COVER | 26011 | 26011-0275 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011A | 26011-0972 | 1 | ||
| WIRE-LEAD,BATTERY(+) | 26011B | 26011-1888 | 1 | ||
| WIRE-LEAD,DIAG CONNECTOR | 26011C | 26011-1901 | 1 | ||
| BATTERY,FTX9-BS,12V 8AH | 26012 | 26012-0608 | 1 | ||
| HARNESS,MAIN | 26031 | 26031-2852 | 1 | CN,US | |
| HARNESS,MAIN | 26031A | 26031-2853 | 1 | CA | |
| RELAY-ASSY | 27002 | 27002-0042 | 1 | ||
| RELAY-ASSY,SIGNAL LAMP | 27002A | 27002-1097 | 1 | ||
| HORN | 27003 | 27003-0121 | 1 | ||
| PAD,20X20X1 | 39156 | 39156-2288 | 2 | ||
| PAD,28X17X1 | 39156A | 39156-2583 | 1 | ||
| PAD,DIAG CONNECTOR | 39156B | 39156-2584 | 1 | ||
| COVER-SEAL,ABS CONNECTOR | 49016 | 49016-0679 | 1 | ||
| RIVET,HOLE 8MM | 92039 | 92039-0014 | 1 | ||
| RIVET | 92039A | 92039-0015 | 1 | ||
| BAND,OS170-FT7(BLACK) | 92072 | 92072-1414 | AR | ||
| BOLT,SOCKET,6X10 | 92154 | 92154-0774 | 2 | ||
| BOLT,SOCKET,6X12 | 92154A | 92154-2355 | 2 | ||
| BOLT,SOCKET,6X10 | 92154B | 92154-2667 | 2 | ||
| CLAMP,L=60 | 92171 | 92171-0652 | 1 | ||
| CLAMP,EDGE CLIP | 92171A | 92171-1722 | 1 | ||
| SCREW,5X10 | 92172 | 92172-0864 | 2 | ||
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 7 | ||
| CLAMP | 92173A | 92173-0861 | 6 | ||
| CLAMP,CABLE CLIP | 92173B | 92173-1022 | 1 | ||
| CLAMP,CLIP,TAIL LAMP,ETC | 92173C | 92173-1429 | 1 | ||
| CLAMP | 92173D | 92173-2198 | 2 | ||
| CLAMP | 92173E | 92173-2199 | 2 | ||
| BOLT-FLANGED,6X10 | 130 | 130BA0610 | 1 | ||
| BOLT-FLANGED,6X12 | 130A | 130BA0612 | 2 | ||
| BOLT-FLANGED,6X16 | 130B | 130BA0616 | 2 |
