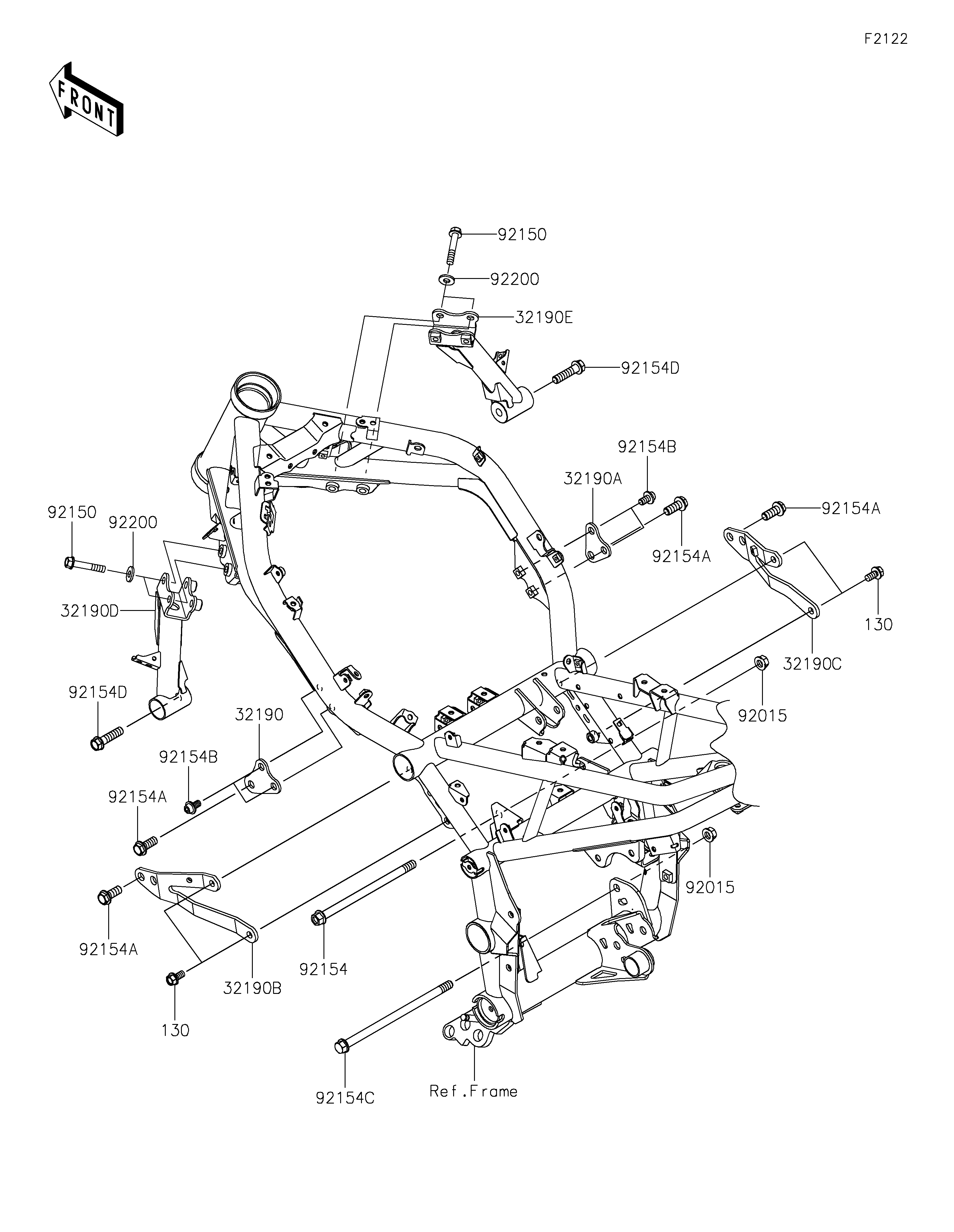

2020 Z900 ABS - Engine Mount

DOWNLOAD PDF
SELECT A NEW PART
32190
32190A
32190B
32190C
32190D
32190E
92015
92015
92150
92150
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154C
92154D
92154D
92200
92200
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,LH,F.S.BLACK 32190 32190-0723-18R 1
BRACKET-ENGINE,RH,F.S.BLACK 32190A 32190-0724-18R 1
BRACKET-ENGINE,CYL.,LH 32190B 32190-0725 1
BRACKET-ENGINE,CYL.,RH 32190C 32190-0726 1
BRACKET-ENGINE,LH,F.S.BLACK 32190D 32190-0831-18R 1
BRACKET-ENGINE,RH,F.S.BLACK 32190E 32190-0832-18R 1
NUT,FLANGED,10MM 92015 92015-1180 2
BOLT,FLANGED,8X45 92150 92150-1487 4
BOLT,FLANGED,10X170 92154 92154-0840 1
BOLT,FLANGED,10X25 92154A 92154-2251 4
BOLT,SOCKET,8X14 92154B 92154-2252 4
BOLT,FLANGED,10X195 92154C 92154-4070 1
BOLT,FLANGED,10X40 92154D 92154-4122 2
WASHER,8.5X18X2.3 92200 92200-1213 4
BOLT-FLANGED,8X16 130 130CA0816 4
