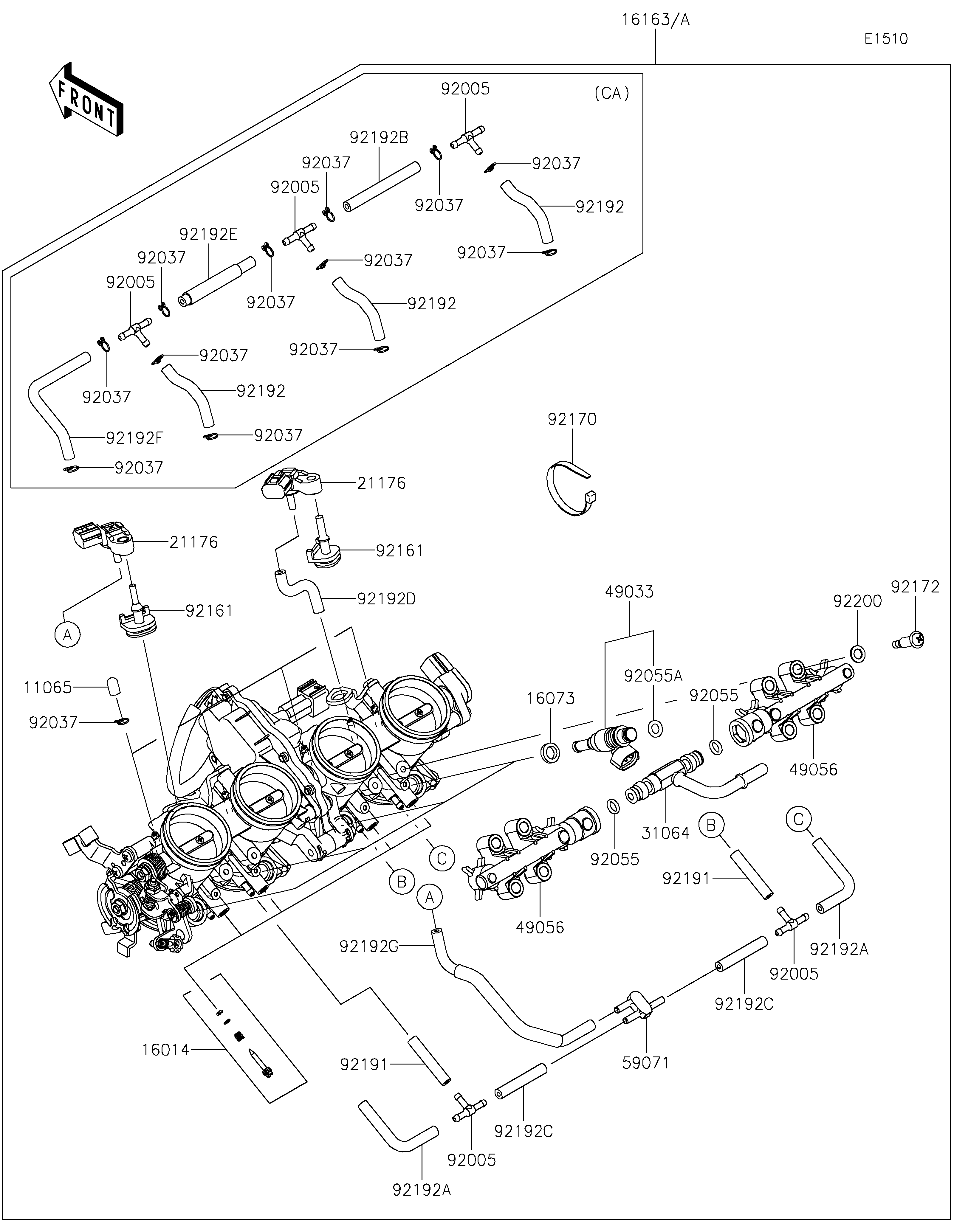

2020 Z900 ABS - Throttle

DOWNLOAD PDF
SELECT A NEW PART
11065
16014
16073
16163
16163A
21176
21176
31064
49033
49056
49056
59071
92005
92005
92005
92005
92005
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92055
92055
92055A
92161
92161
92170
92172
92191
92191
92192
92192
92192
92192A
92192A
92192B
92192C
92192C
92192D
92192E
92192F
92192G
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0072 4 CN,US
SCREW-PILOT AIR 16014 16014-0017 4
INSULATOR,INJECTER 16073 16073-1123 4
THROTTLE-ASSY 16163 16163-1203 1 CN,US
THROTTLE-ASSY 16163A 16163-1204 1 CA
SENSOR,PRESSURE 21176 21176-0906 2
PIPE-COMP 31064 31064-0692 1
NOZZLE-INJECTION 49033 49033-0034 4
PIPE-INJECTION 49056 49056-0049 2
JOINT 59071 59071-0022 1
FITTING 92005 92005-1380 5 CA
FITTING 92005 92005-1380 2 CN,US
CLAMP,TUBE 92037 92037-1124 12 CA 1
CLAMP,TUBE 92037 92037-1124 4 CN,US
RING-O 92055 92055-0761 2
RING-O,REGULATOR-FUEL 92055A 92055-2187 4
DAMPER 92161 92161-0673 2
CLAMP 92170 92170-3749 1
SCREW,PIPE INJECTION 92172 92172-0828 4
TUBE,3.2X7.4X40 92191 92191-1551 2
TUBE,3.5X7.5X55 92192 92192-1349 3 CA
TUBE,3.2X7.4X75 92192A 92192-1446 2
TUBE,3.5X7.5X70 92192B 92192-1447 1 CA
TUBE,3.2X7.4X45 92192C 92192-1617 2
TUBE,3.2X7.4X55 92192D 92192-1802 1
TUBE,3.5X7.5X70 92192E 92192-1803 1 CA
TUBE,3.5X7.5X115 92192F 92192-1804 1 CA
TUBE,3.2X7.4X175 92192G 92192-1805 1
WASHER 92200 92200-3807 4
