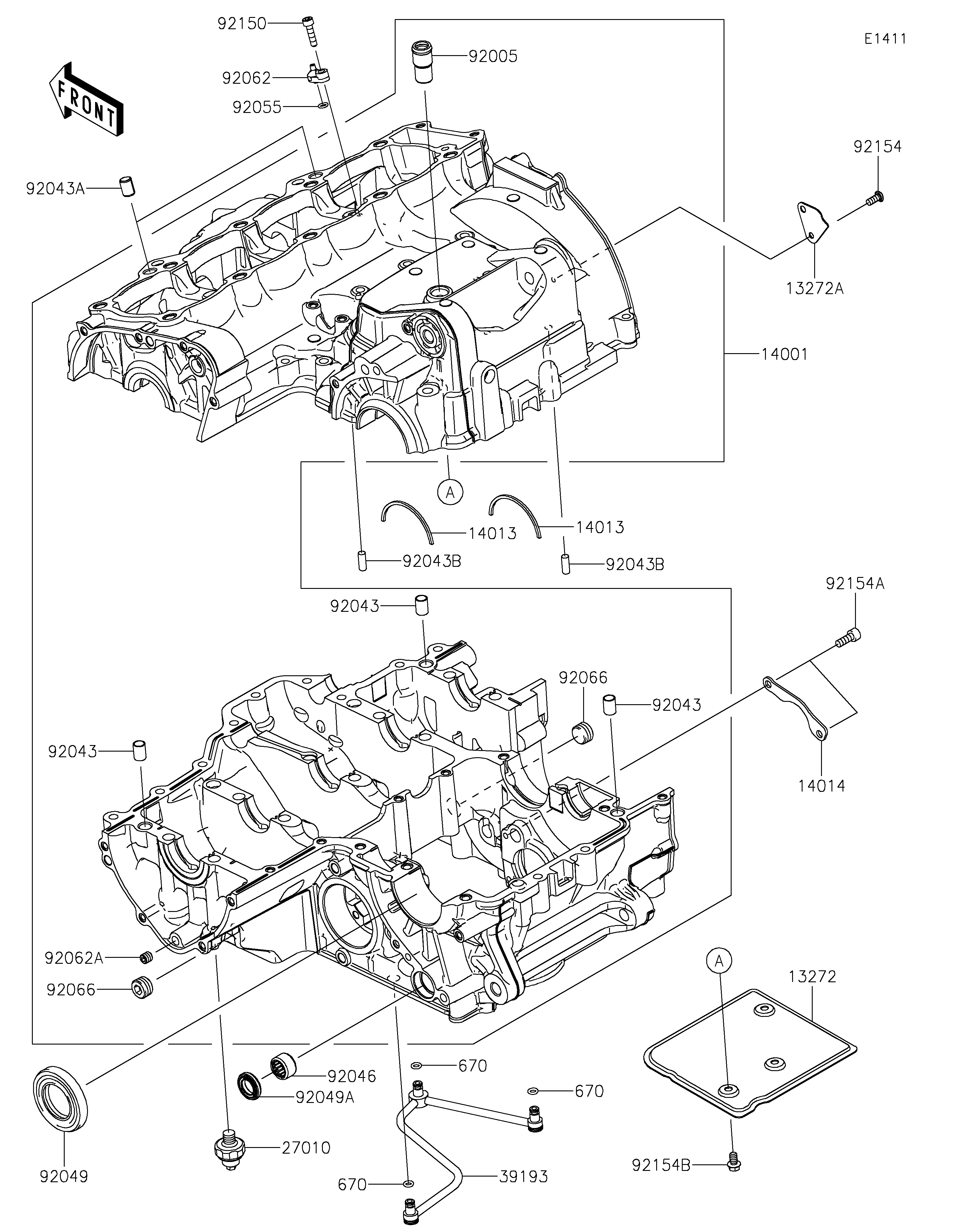

2020 Z900 ABS - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
13272
13272A
14001
14013
14013
14014
27010
39193
92005
92043
92043
92043
92043A
92043B
92043B
92046
92049
92049A
92055
92062
92062A
92066
92066
92150
92154
92154A
92154B
670
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,BREATHER,UPP 13272 13272-0698 1
PLATE,BREATHER,SIDE 13272A 13272-0699 1
SET-CRANKCASE 14001 14001-0725 1
RING-POSITION 14013 14013-1051 2
PLATE-POSITION 14014 14014-0036 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PIPE-OIL 39193 39193-0054 1
FITTING,BREATHER 92005 92005-1238 1
PIN,DOWEL,10X14 92043 92043-1037 3
PIN,8.2X10X14 92043A 92043-1264 2
PIN,6X16 92043B 92043-1690 2
BEARING-NEEDLE,HK1412FM 92046 92046-0043 1
SEAL-OIL,TC32578 92049 92049-1474 1
SEAL-OIL,TC14245 92049A 92049-1520 1
RING-O,5.5X1.5 92055 92055-1339 1
NOZZLE,OIL JET 92062 92062-0040 1
NOZZLE 92062A 92062-0046 1
PLUG 92066 92066-0836 2
BOLT,SOCKET,5X20 92150 92150-1019 1
BOLT,TORX,5X12 92154 92154-0299 1
BOLT,SOCKET,6X16 92154A 92154-0484 2
BOLT,FLANGED,6X10 92154B 92154-1887 3
O RING 670 670D1505 3
