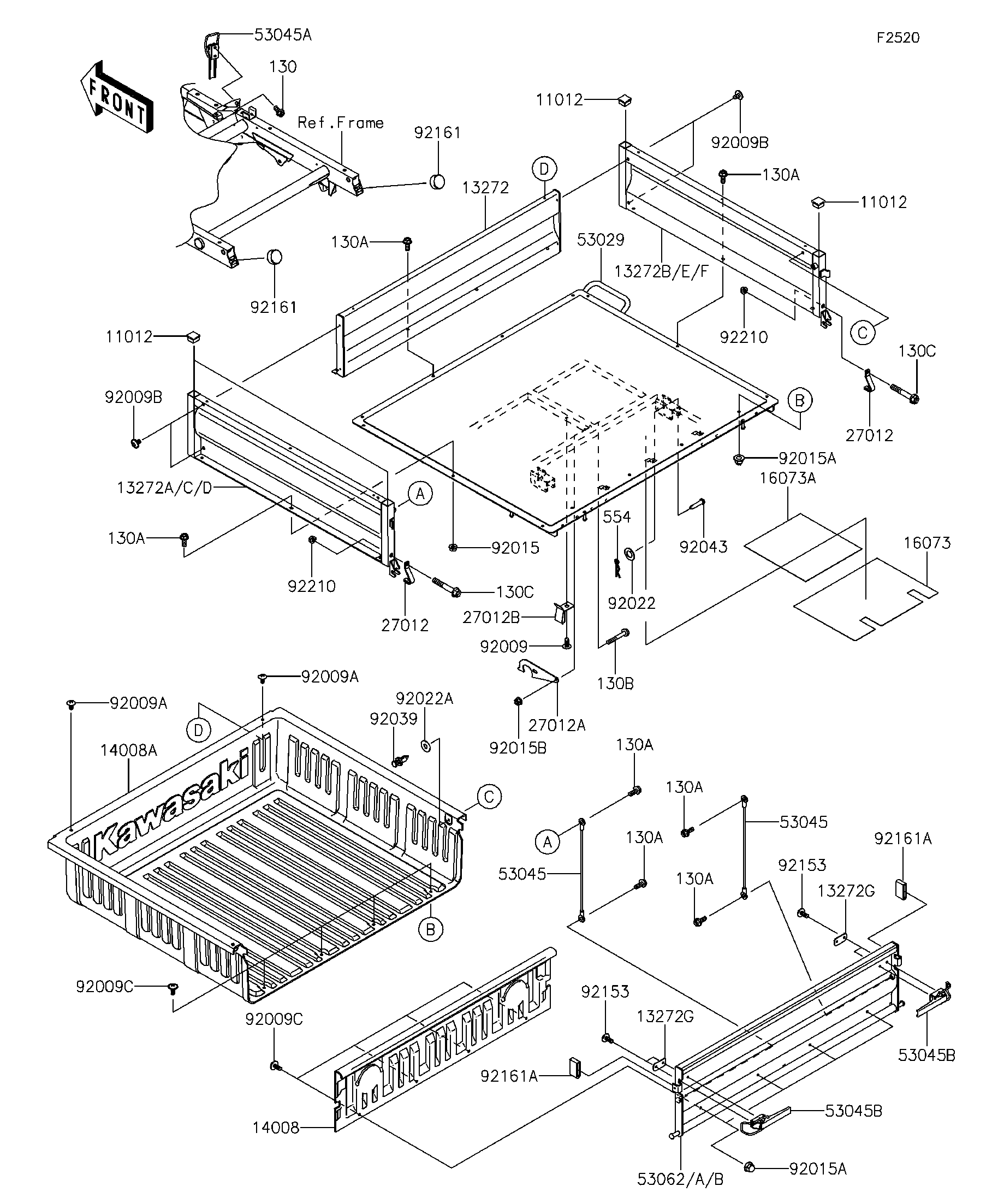

2014 MULE™ 610 4x4 XC CAMO - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11012
11012
13272
13272
13272C
13272C
13272E
13272E
13272G
13272G
13272G
13272G
14008
14008
14008A
14008A
16073
16073
16073A
16073A
27012
27012
27012
27012
27012A
27012A
27012B
27012B
53029
53029
53045
53045
53045
53045
53045A
53045A
53045B
53045B
53045B
53045B
53062A
53062A
92009
92009
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92009C
92009C
92009C
92009C
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92022
92022
92022A
92022A
92039
92039
92043
92043
92153
92153
92153
92153
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92210
92210
92210
92210
130
130
130A
130A
130A
130A
130A
130A
130A
130A
130A
130A
130A
130A
130A
130A
130B
130B
130C
130C
130C
130C
554
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1784 4
PLATE,CARRIER,SIDE,FR,BLACK 13272 13272-0541-10 1
PLATE,CARRIER,LH,CAMOUFLAGE 13272C 13272-1138-16N 1
PLATE,CARRIER,RH,CAMOUFLAGE 13272E 13272-1139-16N 1
PLATE 13272G 13272-7516 2
LINER,TAILGATE 14008 14008-0019 1
LINER,CARRIER BASE 14008A 14008-0020 1
INSULATOR,CARRIER 16073 16073-0040 1
INSULATOR 16073A 16073-7501 1
HOOK,TAIL GATE 27012 27012-0022 2
HOOK 27012A 27012-0044 1
HOOK,CARRIER 27012B 27012-1445 1
CARRIER,BLACK 53029 53029-0089-10 1
HOOK-ASSY,TAIL GATE 53045 53045-0006 2
HOOK-ASSY 53045A 53045-1063 1
HOOK-ASSY 53045B 53045-7503 2
GATE-TAIL,CAMOUFLAGE 53062A 53062-0304-16N 1
SCREW,TAPPING,6X16 92009 92009-1166 1
SCREW,6X12 92009A 92009-1480 2
SCREW,6X10 92009B 92009-1661 4
SCREW,6X14 92009C 92009-1662 8
NUT,FLANGED,6MM,BLACK 92015 92015-1233 10
NUT,LOCK 6MM 92015A 92015-1262 8
NUT,LOCK,FLANGED,6MM 92015B 92015-1675 1
WASHER,12.5X22X1.2 92022 92022-072 2
WASHER,8.5X20X1.6,BLACK 92022A 92022-1317 2
RIVET 92039 92039-1229 2
PIN,12X54 92043 92043-1451 2
BOLT,SOCKET,6X14 92153 92153-1361 4
DAMPER,SEAT 92161 92161-1065 2
DAMPER 92161A 92161-7519 2
NUT,FLANGED,8MM 92210 92210-0555 2
BOLT-FLANGED,6X14 130 130BA0614 2
BOLT-FLANGED,6X16 130A 130BB0616 14
BOLT-FLANGED,6X40 130B 130BB0640 1
BOLT-FLANGED,8X50 130C 130BB0850 2
PIN-SNAP,12MM 554 554DA1200 2
