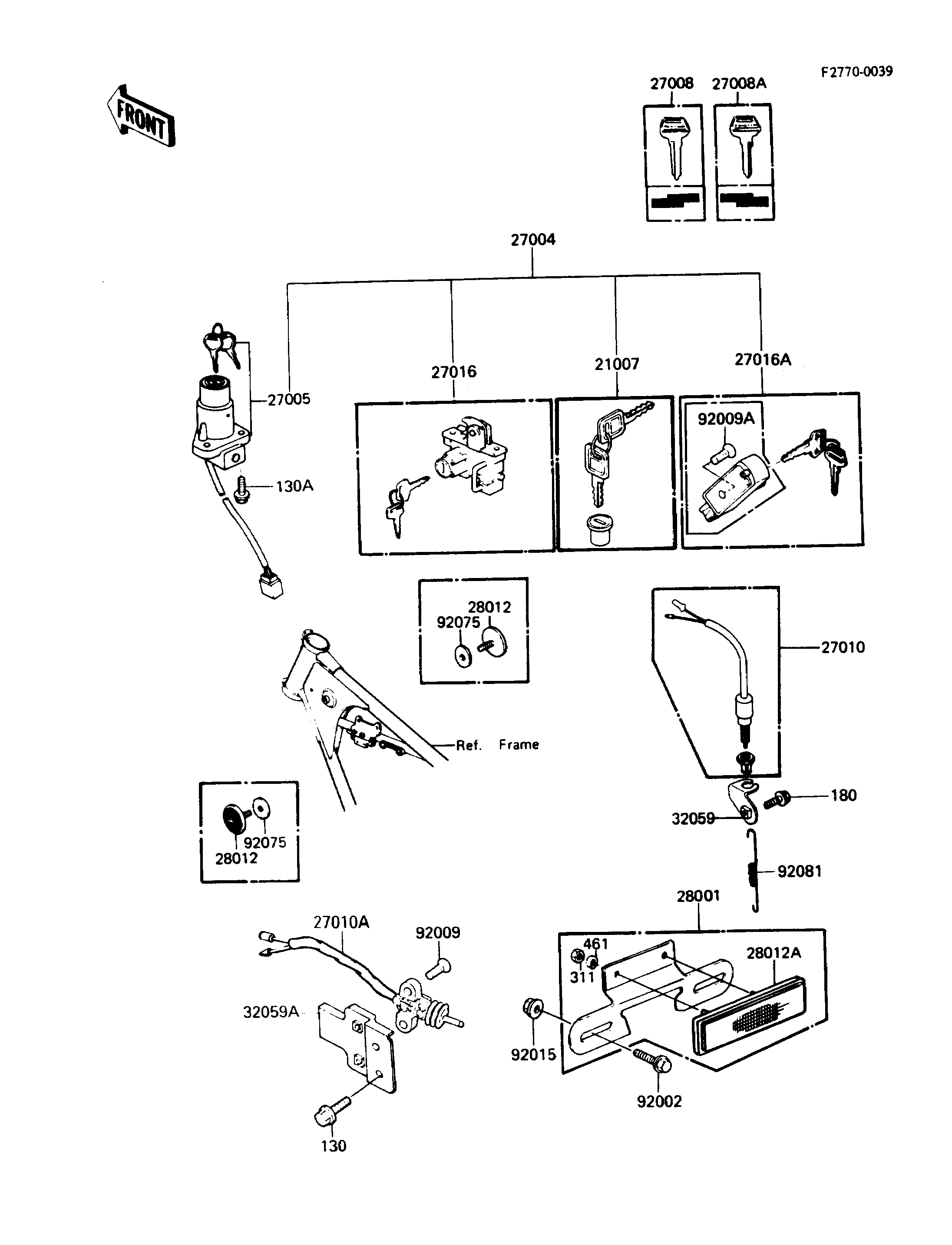

1987 LTD - Ignition Switch/Locks/Reflectors
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ROTOR,LOCK,TANK CAP | 21007 | 21007-5022 | 1 | ||
| SWITCH-ASSY | 27004 | 27004-5323 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-1029 | 1 | ||
| KEY-LOCK,BLANK,#A | 27008 | 27008-1034 | 1 | (OPTION) | |
| KEY-LOCK,BLANK,#B | 27008A | 27008-1035 | 1 | (OPTION) | |
| SWITCH,REAR BRAKE | 27010 | 27010-1019 | 1 | ||
| SWITCH,SIDE STAND | 27010A | 27010-1222 | 1 | ||
| LOCK-ASSY,SEAT&HELMET | 27016 | 27016-5028 | 1 | ||
| LOCK-ASSY,HELMET | 27016A | 27016-5029 | 1 | ||
| REFLECTOR-ASSY-REFLEX | 28001 | 28001-1012 | 1 | ||
| REFLECTOR-REFLEX,FR | 28012 | 28012-016 | 2 | ||
| REFLECTOR-REFLEX,RR | 28012A | 28012-1005 | 1 | ||
| BRACKET-SWITCH,BRAKE LAMP | 32059 | 32059-1006 | 1 | ||
| BRACKET-SWITCH | 32059A | 32059-1085 | 1 | ||
| BOLT,6X12 | 92002 | 92002-1132 | 2 | ||
| SCREW,5X20 | 92009 | 92009-1459 | 2 | ||
| SCREW,5X18 | 92009A | 92009-1547 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1193 | 2 | ||
| DAMPER,REFLECTOR | 92075 | 92094-011 | 2 | ||
| SPRING,BRAKE LAMP SWITCH | 92081 | 27011-011 | 1 | ||
| BOLT-FLANGED | 130 | 130C0510 | 2 | ||
| BOLT-FLANGED,6X14 | 130A | 130D0614 | 2 | ||
| BOLT-UPSET-WS | 180 | 180B0618 | 1 | ||
| NUT-HEX | 311 | 311B0500 | 2 | ||
| WASHER-SPRING,5MM | 461 | 461F0500 | 2 |
