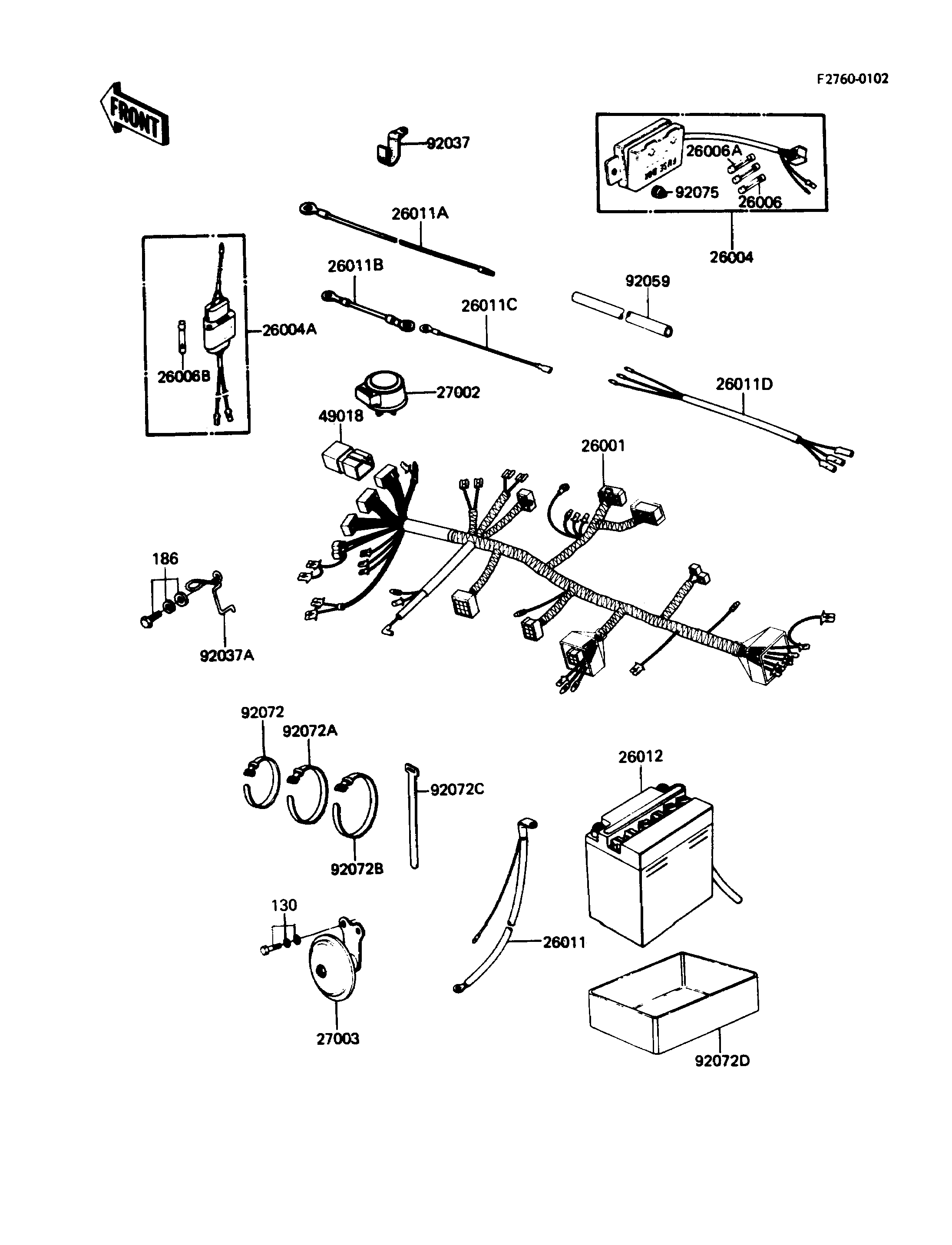

1987 LTD - Chassis Electrical Equipment
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HARNESS,MAIN | 26001 | 26001-1832 | 1 | ||
| FUSE-ASSY | 26004 | 26004-035 | 1 | ||
| FUSE-ASSY,ACCESSORY | 26004A | 26004-1014 | 1 | ||
| FUSE,10A,L=25 | 26006 | 26006-003 | 3 | ||
| FUSE,20A,L=25 | 26006A | 26006-005 | 2 | ||
| FUSE,10A,L=30 | 26006B | 26006-1002 | 3 | ||
| WIRE-LEAD,BATTERY GROUND | 26011 | 26010-052 | 1 | ||
| WIRE-LEAD,L=285 | 26011A | 26011-095 | 2 | ||
| WIRE-LEAD,CRANKCASE GROUND | 26011B | 26011-1034 | 1 | ||
| WIRE-LEAD,ACCESSORY FUSE,L=100 | 26011C | 26011-1110 | 1 | ||
| WIRE-LEAD,TAIL LAMP | 26011D | 26011-1176 | 1 | ||
| BATTERY,12V 11AH,YB10L-A2 | 26012 | 26012-1170 | 1 | ||
| RELAY-ASSY,TURN SIGNAL | 27002 | 27002-011 | 1 | ||
| HORN | 27003 | 27003-1060 | 1 | ||
| DIODE | 49018 | 49018-1052 | 1 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 4 | ||
| CLAMP | 92037A | 92037-1379 | 1 | ||
| TUBE,8X9X200 | 92059 | 92059-1150 | 2 | ||
| BAND,L=123 | 92072 | 92072-030 | 6 | ||
| BAND,L=149 | 92072A | 92072-031 | 3 | ||
| BAND,L=218 | 92072B | 92072-032 | 2 | ||
| BAND,L=95 | 92072C | 92072-067 | 1 | ||
| BAND,BATTERY | 92072D | 92072-1020 | 1 | ||
| DAMPER,FUSE | 92075 | 92075-279 | 1 | ||
| BOLT-FLANGED,6X14 | 130 | 130D0614 | 2 | ||
| BOLT-UPSET-WP | 186 | 186B0612 | 1 |
| HARNESS,MAIN | |
| REF # | 26001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE-ASSY | |
| REF # | 26004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE-ASSY,ACCESSORY | |
| REF # | 26004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE,10A,L=25 | |
| REF # | 26006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| FUSE,20A,L=25 | |
| REF # | 26006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FUSE,10A,L=30 | |
| REF # | 26006B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BATTERY GROUND | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,L=285 | |
| REF # | 26011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,CRANKCASE GROUND | |
| REF # | 26011B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,ACCESSORY FUSE,L=100 | |
| REF # | 26011C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,TAIL LAMP | |
| REF # | 26011D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BATTERY,12V 11AH,YB10L-A2 | |
| REF # | 26012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELAY-ASSY,TURN SIGNAL | |
| REF # | 27002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HORN | |
| REF # | 27003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIODE | |
| REF # | 49018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,8X9X200 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,L=123 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BAND,L=149 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BAND,L=218 | |
| REF # | 92072B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,L=95 | |
| REF # | 92072C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,BATTERY | |
| REF # | 92072D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUSE | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WP | |
| REF # | 186 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
