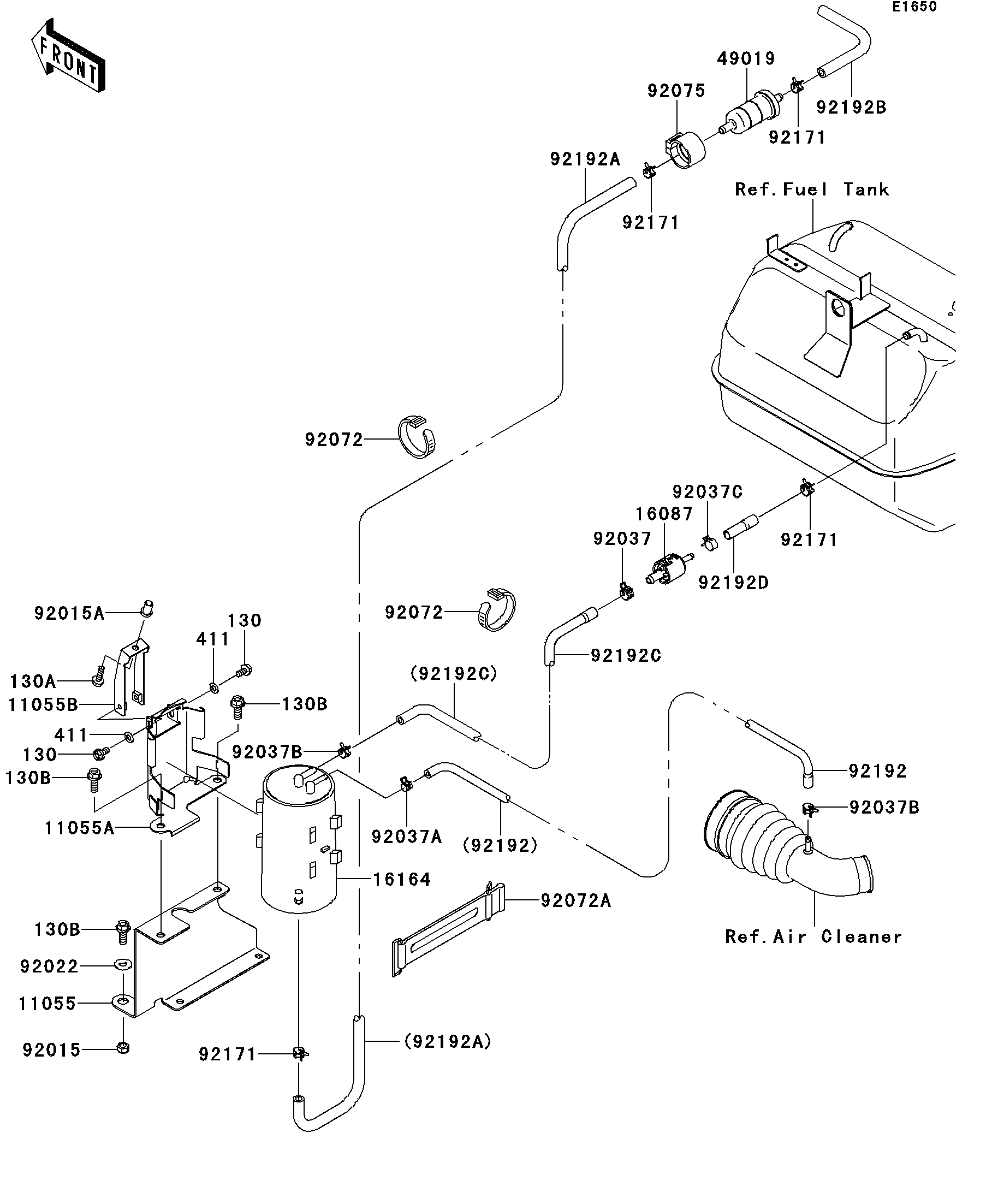

2011 MULE™ 610 4x4 XC - Fuel Evaporative System(DAF/DBF)

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
11055A
11055A
11055B
11055B
16087
16087
16164
16164
49019
49019
92015
92015
92015A
92015A
92022
92022
92037
92037
92037A
92037A
92037B
92037B
92037B
92037B
92037C
92037C
92072
92072
92072
92072
92072A
92072A
92075
92075
92171
92171
92171
92171
92171
92171
92171
92171
92192
92192
92192A
92192A
92192B
92192B
92192C
92192C
92192D
92192D
130
130
130
130
130A
130A
130B
130B
130B
130B
130B
130B
411
411
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR 11055 11055-0262 1 _________________________________________CA
BRACKET,UPP 11055A 11055-0263 1 _________________________________________CA
BRACKET,FIX UPP 11055B 11055-0401 1 _________________________________________CA
VALVE-CHECK 16087 16087-0002 1 _________________________________________CA
CANISTER 16164 16164-0007 1 _________________________________________CA
FILTER-FUEL 49019 49019-1055 1 _________________________________________CA
NUT,LOCK,8MM 92015 92015-1124 1 _________________________________________CA
NUT,POP,6MM 92015A 92015-1759 1 _________________________________________CA
WASHER,8.5X20X1.6,BLACK 92022 92022-1317 1 _________________________________________CA
CLAMP,HOSE CLIP 92037 92037-1181 1 _________________________________________CA
CLAMP,TUBE 92037A 92037-1461 1 _________________________________________CA
CLAMP,TUBE 92037B 92037-1505 2 _________________________________________CA
CLAMP 92037C 92037-2113 1 _________________________________________CA
BAND,L=186 92072 92072-056 2 _________________________________________CA
BAND,L=168 92072A 92072-1306 1 _________________________________________CA
DAMPER,FUEL FILTER 92075 92075-1853 1 _________________________________________CA
CLAMP 92171 92171-0515 4 _________________________________________CA
TUBE,CANISTER-DUCT 92192 92192-0591 1 _________________________________________CA
TUBE,CANISTER-FILTER 92192A 92192-0592 1 _________________________________________CA
TUBE,FILTER-AIR 92192B 92192-0609 1 _________________________________________CA
TUBE,CHECK VALVE-CANISTER 92192C 92192-0768 1 _________________________________________CA
TUBE,TANK-CHECK VALVE 92192D 92192-0769 1 _________________________________________CA
BOLT-FLANGED,6X12 130 130BB0612 2 _________________________________________CA
BOLT-FLANGED,6X18 130A 130BB0618 1 _________________________________________CA
BOLT-FLANGED,8X20 130B 130BB0820 3 _________________________________________CA
WASHER-PLAIN,6.5X13X1 411 411AB0600 2 _________________________________________CA
