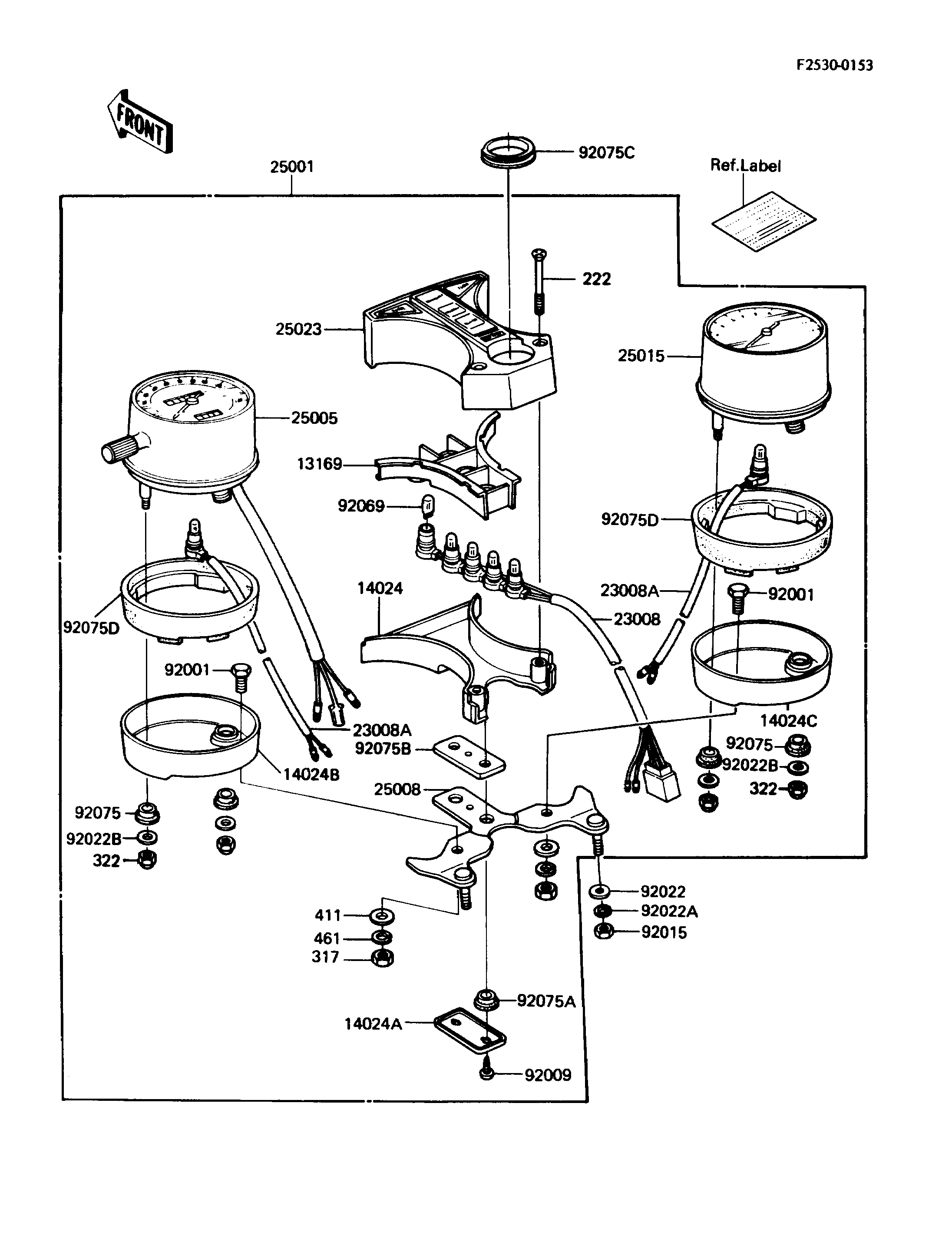

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,SOCKET | 13169 | 13169-1133 | 1 | ||
| COVER,PILOT BOX,LWR | 14024 | 14025-1093 | 1 | ||
| COVER,PILOT BOX,DAMPER | 14024A | 14025-1096 | 1 | ||
| COVER,SPEEDOMETER,CR-PLATED | 14024B | 14025-1322 | 1 | ||
| COVER,TACHOMETER,CR-PLATED | 14024C | 14025-1323 | 1 | ||
| SOCKET-ASSY,PILOT BOX | 23008 | 23008-1119 | 1 | ||
| SOCKET-ASSY,METER | 23008A | 23008-1158 | 2 | ||
| METER-ASSY,MPH | 25001 | 25001-1683 | 1 | ||
| SPEEDOMETER,MPH | 25005 | 25005-1353 | 1 | ||
| BRACKET-METER | 25008 | 25008-1021 | 1 | ||
| TACHOMETER,X1000R/MIN | 25015 | 25015-1036 | 1 | ||
| COVER,PILOT BOX,UPP | 25023 | 25023-1008 | 1 | ||
| BOLT,8X16 | 92001 | 92001-1154 | 2 | ||
| SCREW,TAPPING,4X10 | 92009 | 92009-1040 | 2 | ||
| NUT,6MM | 92015 | 92015-1391 | 2 | ||
| WASHER,6.5X13X1 | 92022 | 92022-1544 | 2 | ||
| WASHER,SPRING,6MM | 92022A | 92022-1580 | 2 | ||
| WASHER,5.2X18X1.2 | 92022B | 92022-285 | 4 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 6 | ||
| DAMPER,METER | 92075 | 25019-013 | 4 | ||
| DAMPER,METER | 92075A | 25019-023 | 2 | ||
| DAMPER,PILOT BOX | 92075B | 92075-1136 | 1 | ||
| DAMPER,PILOT BOX | 92075C | 92075-1204 | 1 | ||
| DAMPER,METER | 92075D | 92075-1498 | 2 | ||
| SCREW-CSK-RD-CROS,4X45 | 222 | 222C0445 | 2 | ||
| NUT-HEX-SMALL,8MM | 317 | 317B0800 | 2 | ||
| NUT-CAP,5MM | 322 | 322N0500 | 4 | ||
| WASHER-PLAIN,8MM | 411 | 411B0800 | 2 | ||
| WASHER-SPRING,8MM | 461 | 461F0800 | 2 |
