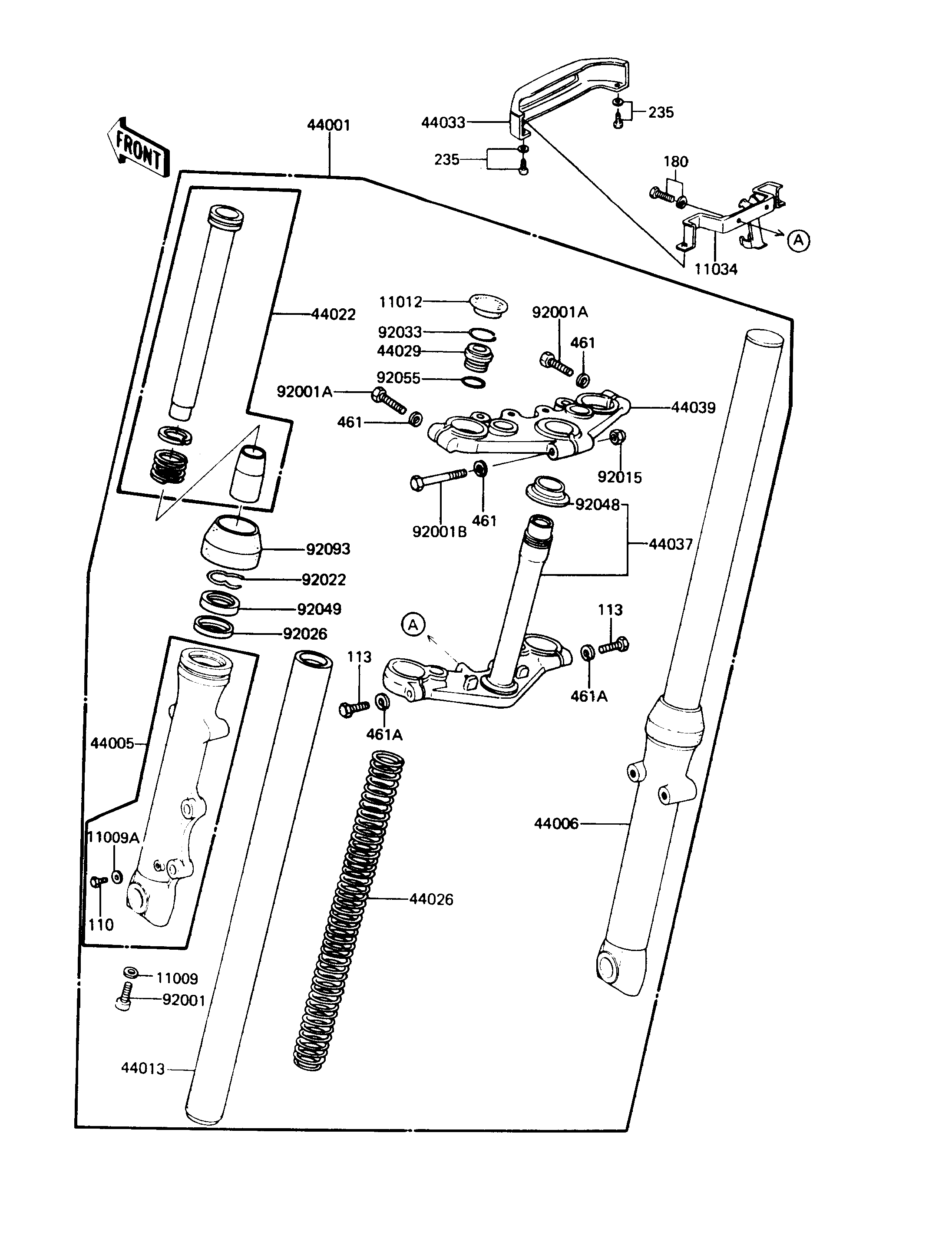

1987 LTD - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 44045-051 2
GASKET,DRAIN PLUG 11009A 44045-052 2
CAP,RUBBER,FORK TOP 11012 11012-1021 2
BRACKET,FORK COVER 11034 11034-1758 1
FORK-FRONT 44001 44001-1400 1
PIPE-LEFT FORK OUTER 44005 44005-1109 1
PIPE-RIGHT FORK OUTER 44006 44006-1109 1
PIPE-FORK INNER 44013 44013-1025 2
CYLINDER-FORK 44022 44022-1048 2
SPRING-FRONT FORK 44026 44026-1102 2
SEAT-FORK SPRING 44029 44029-022 2
COVER-FORK 44033 44033-1062 1
HOLDER-FORK UNDER 44037 44037-1014 1
HOLDER-FORK UPPER 44039 44039-1012 1
BOLT,FORK CYLINDER 92001 44041-078 2
BOLT,8X40 92001A 92001-1739 2
BOLT,8X55 92001B 92001-1740 1
NUT,8MM 92015 92015-1235 1
RING,OIL SEAL STOPPER 92022 44043-057 2
SPACER,FORK 92026 92026-1119 2
RING-SNAP 92033 44044-023 2
RACE,STEERING STEM BEARING 92048 92047-006 1
SEAL-OIL,FORK 92049 92049-1077 2
RING-O 92055 44046-025 2
SEAL,FORK 92093 92093-1063 2
BOLT,6X8 110 110B0608 2
BOLT-SMALL-FINE,10X35 113 113B1035 2
BOLT-UPSET-WS,6X12 180 180B0612 2
SCREW-PAN-WP-CROS 235 235B0410 2
WASHER-SPRING,8MM 461 461F0800 3
WASHER-SPRING,10MM 461A 461F1000 2
