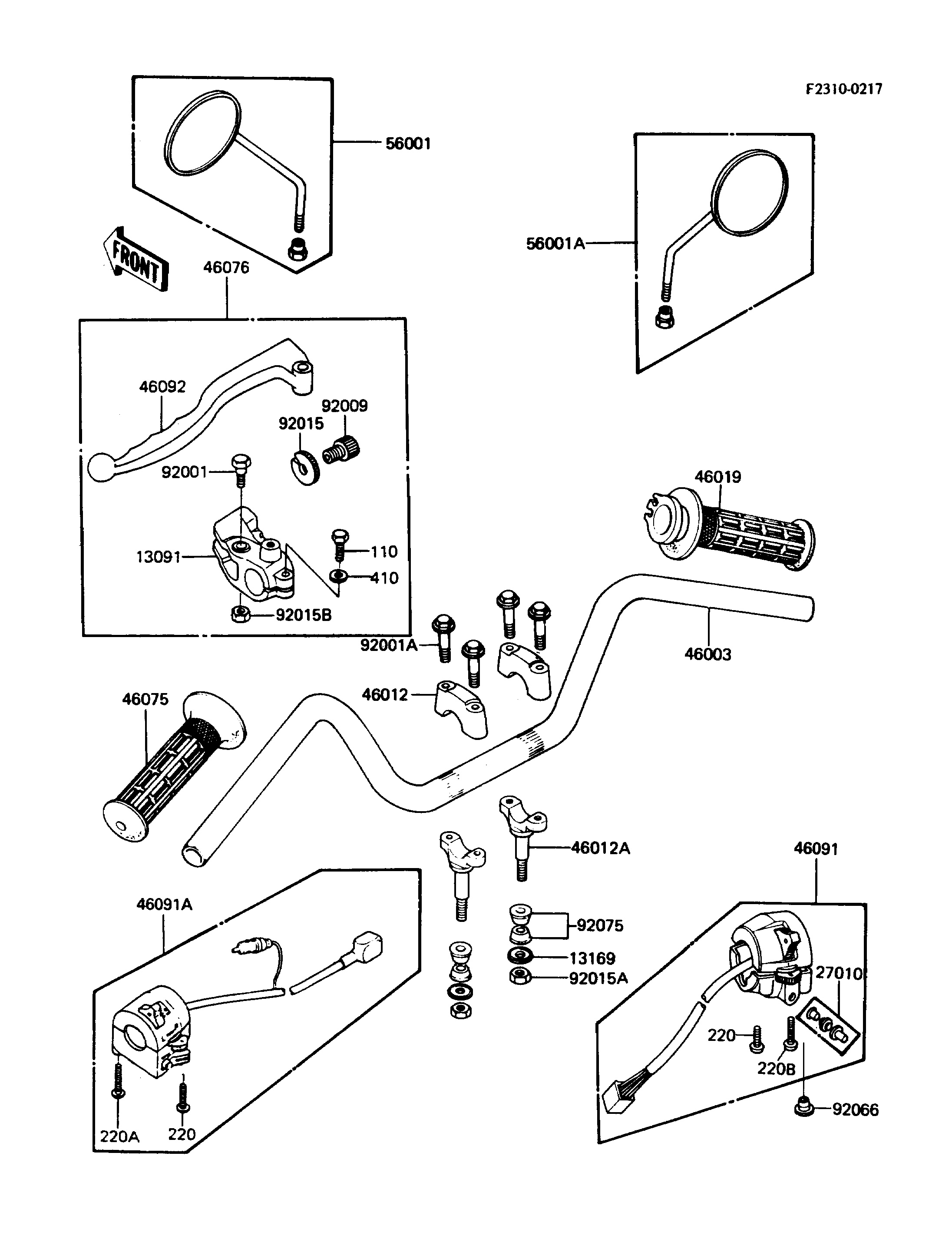

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,CLUTCH LEVER,F.BLACK | 13091 | 13091-1046 | 1 | ||
| PLATE,HANDLE HOLDER | 13169 | 46016-003 | 2 | ||
| SWITCH,PUSH BUTTON | 27010 | 27010-1009 | 1 | ||
| HANDLE | 46003 | 46003-1088 | 1 | ||
| HOLDER-HANDLE,UPP | 46012 | 46012-008 | 2 | ||
| HOLDER-HANDLE,LWR | 46012A | 46012-010 | 2 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1017 | 1 | ||
| GRIP,LH | 46075 | 46075-1022 | 1 | ||
| LEVER-ASSY-GRIP,CLUTCH | 46076 | 46076-1146 | 1 | ||
| HOUSING-ASSY-CONTROL,RH | 46091 | 46091-1259 | 1 | ||
| HOUSING-ASSY-CONTROL,LH | 46091A | 46091-1438 | 1 | ||
| LEVER-GRIP,CLUTCH | 46092 | 46092-023 | 1 | ||
| MIRROR-ASSY,LH | 56001 | 56001-1007 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-1008 | 1 | ||
| BOLT,CLUTCH LEVER | 92001 | 92001-1075 | 1 | ||
| BOLT,FLANGED,8X35 | 92001A | 92001-1910 | 4 | ||
| SCREW,CABLE ADJUST,8MM | 92009 | 46055-003 | 1 | ||
| NUT,CABLE ADJUST LOCK | 92015 | 46056-005 | 1 | ||
| NUT,LOCK,10MM | 92015A | 92015-1429 | 2 | ||
| NUT,LOCK,6MM | 92015B | 92019-008 | 1 | ||
| PLUG,9.5X8,POLYETHYLENE | 92066 | 92066-1077 | 1 | ||
| DAMPER,HANDLE HOLDER | 92075 | 92075-039 | 4 | ||
| BOLT,6X22 | 110 | 110N0622 | 1 | ||
| SCREW-PAN-CROS | 220 | 220B0530 | 2 | ||
| SCREW-PAN-CROS | 220A | 220B0535 | 1 | ||
| SCREW-PAN-CROS | 220B | 220B0540 | 1 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 1 |
