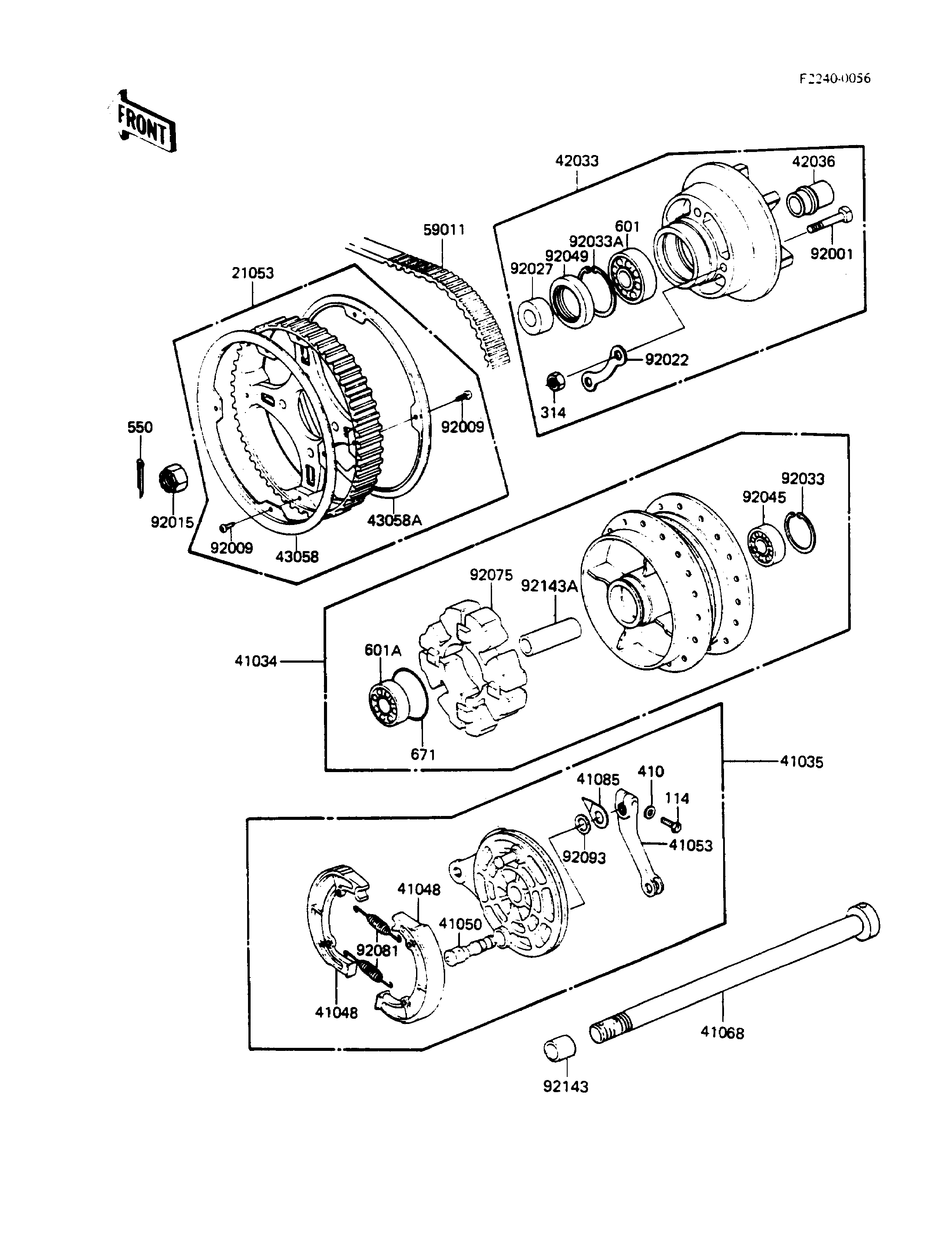

1987 LTD - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET-ASSY,REAR HUB,50T 21053 21053-1007 1
DRUM-ASSY,REAR BRAKE 41034 41034-1159 1
PANEL-ASSY-BRAKE,RR 41035 41035-1089 1
SHOE-BRAKE 41048 41048-020 2
CAM-BRAKE 41050 41050-1001 1
LEVER-BRAKE CAM 41053 41053-1001 1
AXLE,RR 41068 41068-1083 1
INDICATOR,BRAKE SHOE 41085 41085-004 1
COUPLING-ASSY,REAR HUB 42033 42033-1044 1
SLEEVE,RR HUB COUPLING 42036 42036-1002 1
RING,REAR HUB SPROCKET,OUTER 43058 43058-1016 1
RING,REAR HUB SPROCKET,INNER 43058A 43058-1024 1
BELT,DRIVE,121T 59011 59011-1002 1
BOLT,HUB SPROCKET,10X55 92001 92003-156 4
SCREW,5X10 92009 92009-1167 8
NUT,16MM 92015 92015-055 1
WASHER,SPROCKET LOCK 92022 92088-005 2
COLLAR,REAR AXLE,LH,L=23.5 92027 92027-1368 1
RING-SNAP,47MM 92033 92033-1042 1
RING-SNAP,52MM 92033A 92033-1043 1
BEARING-BALL,#6303NS 92045 92045-034 1
SEAL-OIL,TWC35527 92049 92052-006 1
DAMPER,SHOCK,RR HUB 92075 92075-1008 1
SPRING,BRAKE SHOE 92081 42020-004 2
SEAL,BRAKE CAM 92093 41051-003 1
COLLAR 92143 92027-1487 1
COLLAR,17.2X25X61 92143A 92143-1101 1
BOLT-SMALL,8X28 114 114G0828 1
NUT-HEX-FINE,10MM 314 314B1000 4
WASHER-PLAIN-SMALL,8MM 410 410B0800 1
PIN-COTTER,4.0X35 550 550D4035 1
BEARING-BALL,#6205C3 601 601B6205 1
BEARING-BALL,#6303C3 601A 601B6303 1
O RING,60MM 671 671B2560 1
