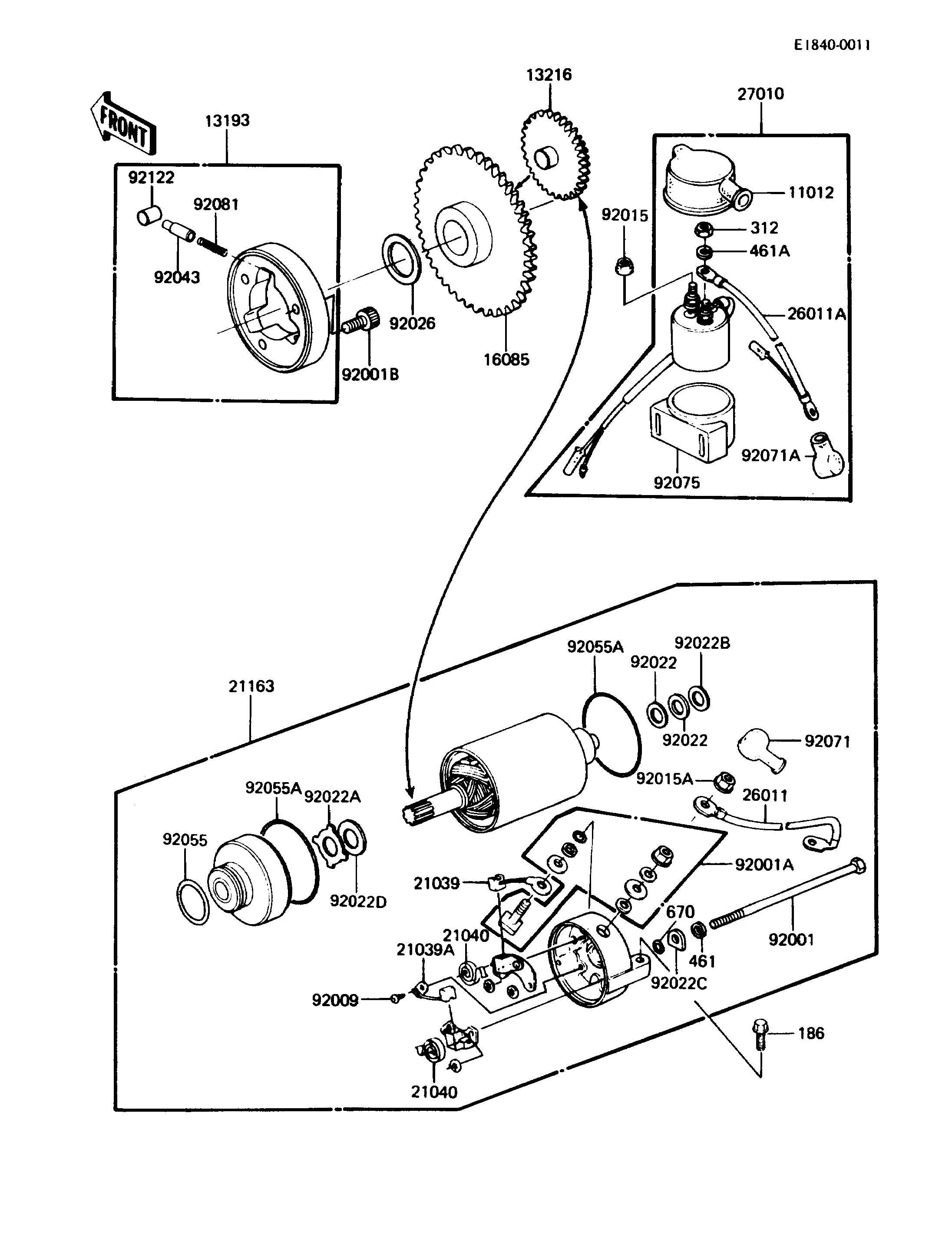

1987 LTD - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,MAGNETIC SWITCH 11012 21141-004 1
CLUTCH-ASSY-ONEWAY 13193 13193-1002 1
GEAR-COMP,STARTER IDLE 13216 13216-1009 1
GEAR,ONEWAY CLUTCH 16085 16085-1032 1
BRUSH,CARBON(+) 21039 21039-1001 1
BRUSH,CARBON(-) 21039A 21039-1002 1
SPRING-BRUSH 21040 21040-1001 2
STARTER-ELECTRIC 21163 21163-1131 1
WIRE-LEAD,STARTER MOTOR 26011 26011-1049 1
WIRE-LEAD,MAGNETIC SWITCH 26011A 26011-1128 1
SWITCH,MAGNETIC 27010 27010-1050 1
BOLT,PAN HEAD,5X108.5 92001 92001-1156 2
BOLT,TERMINAL 92001A 92001-1204 1
BOLT,SOCKET,8X10 92001B 92001-1424 3
SCREW,TAPPING,3.5X8 92009 92009-1058 1
NUT,FLANGED,6MM 92015 92015-1193 1
NUT,STARTER MOTOR 92015A 92015-1476 1
WASHER,9.1X18X0.2 92022 21025-011 2
WASHER,THRUST SUPPORT 92022A 92022-1130 1
WASHER,9.1X18X0.8 92022B 92022-1132 1
WASHER,LOCK,T=3.2 92022C 92022-1133 2
WASHER,22X12.2X0.5 92022D 92022-1714 1
SPACER,22X35.5X1.0 92026 92026-092 1
PIN 92043 92043-132 3
RING-O 92055 92055-1303 1
RING-O 92055A 92055-1418 2
GROMMET,STARTER TERMINAL 92071 21017-017 1
GROMMET,MAGNETIC SWITCH 92071A 21017-023 1
DAMPER,MAGNETIC SWITCH 92075 21064-002 1
SPRING,COIL 92081 92081-159 3
ROLLER 92122 92122-006 3
BOLT-UPSET-WP 186 186B0620 2
NUT-HEX,6MM 312 312B0600 1
WASHER-SPRING,5MM 461 461F0500 2
WASHER-SPRING,6MM 461A 461F0600 1
O RING,5MM 670 670B1505 2
