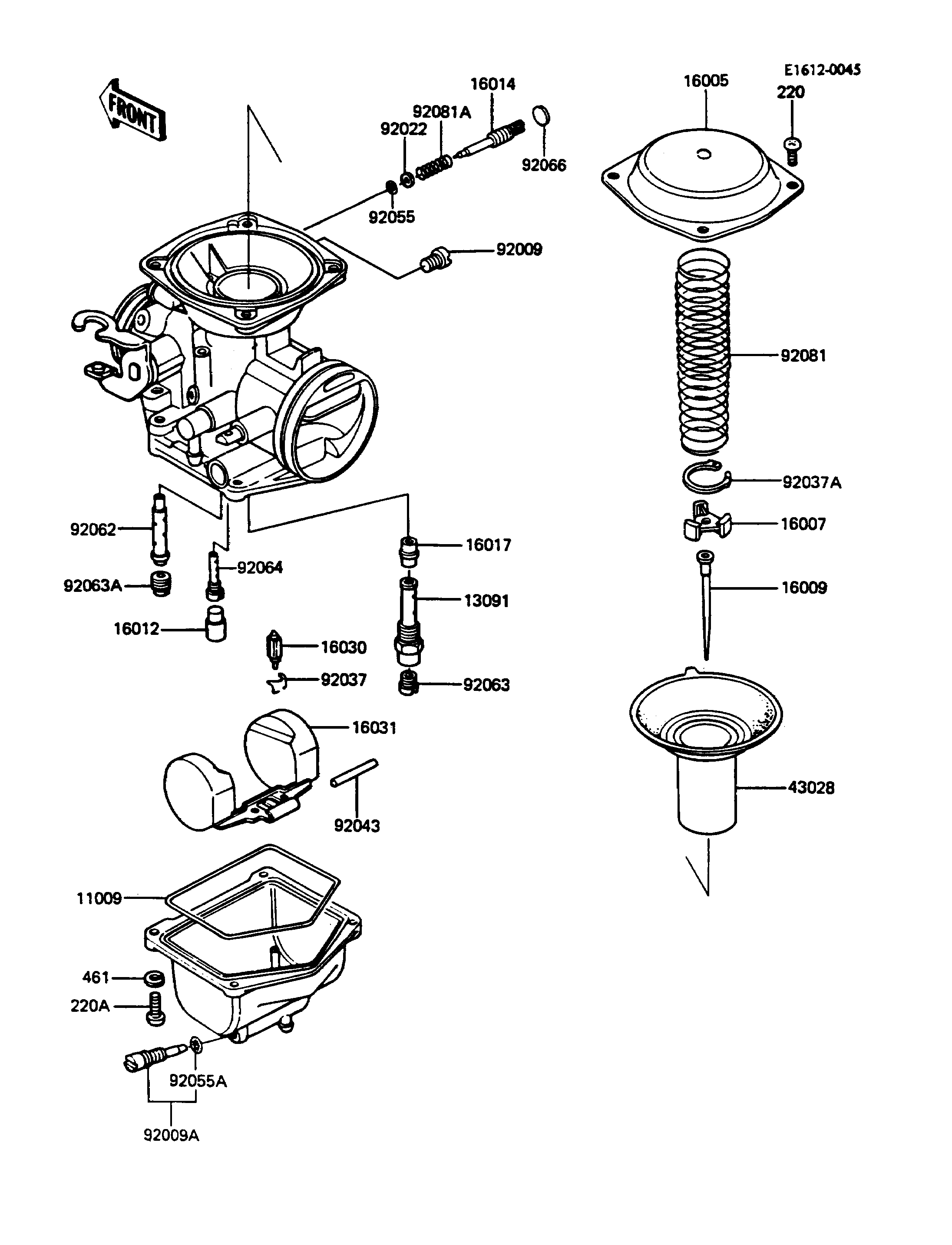

1987 LTD - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,FLOAT CHAMBER 11009 16019-024 2 US
HOLDER,NEEDLE JET,N413-02E00 13091 13091-1050 2 US
TOP-CHAMBER,MIXING 16005 16005-1001 2 US
SEAT-SPRING,THROTTLE VALVE 16007 16007-1001 2 US
NEEDLE-JET,#N05C 16009 16009-1081 2 US
CAP,RUBBER 16012 16012-1001 2 US
SCREW-PILOT AIR 16014 16014-1029 2 US
JET-NEEDLE 16017 16017-1079 2 US
VALVE-FLOAT 16030 16030-1007 2 US
FLOAT 16031 16031-1001 2 US
DIAPHRAGM 43028 43028-1023 2 US
SCREW,PLUG 92009 92009-1004 2 US
SCREW,DRAIN,M6X1.0 92009A 92009-1095 2 US
WASHER,PLAIN 92022 92022-1003 2 US
CLAMP,FLOAT VALVE 92037 16044-007 2 US
CLAMP 92037A 92037-1005 2 US
PIN,FLOAT 92043 92043-1002 2 US
RING-O,PILOT ADJUST 92055 92055-1002 2 US
RING-O,DRAIN SCREW 92055A 92055-1053 4 US
NOZZLE,MAIN 92062 92062-1018 2 US
JET-MAIN,2ND,#85 92063 92063-1023 2 US
JET-MAIN,PRI,#62 92063A 92063-1070 2 US
JET-PILOT,#35 92064 92064-1001 2 US
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 2 US
SPRING 92081 92081-1001 2 US
SPRING,PILOT ADJUST SCREW 92081A 92081-1002 2 US
SCREW-PAN-CROS 220 220B0408 7 US
SCREW-PAN-CROS,4X12 220A 220B0412 8 US
WASHER-SPRING,4MM 461 461F0400 8 US
