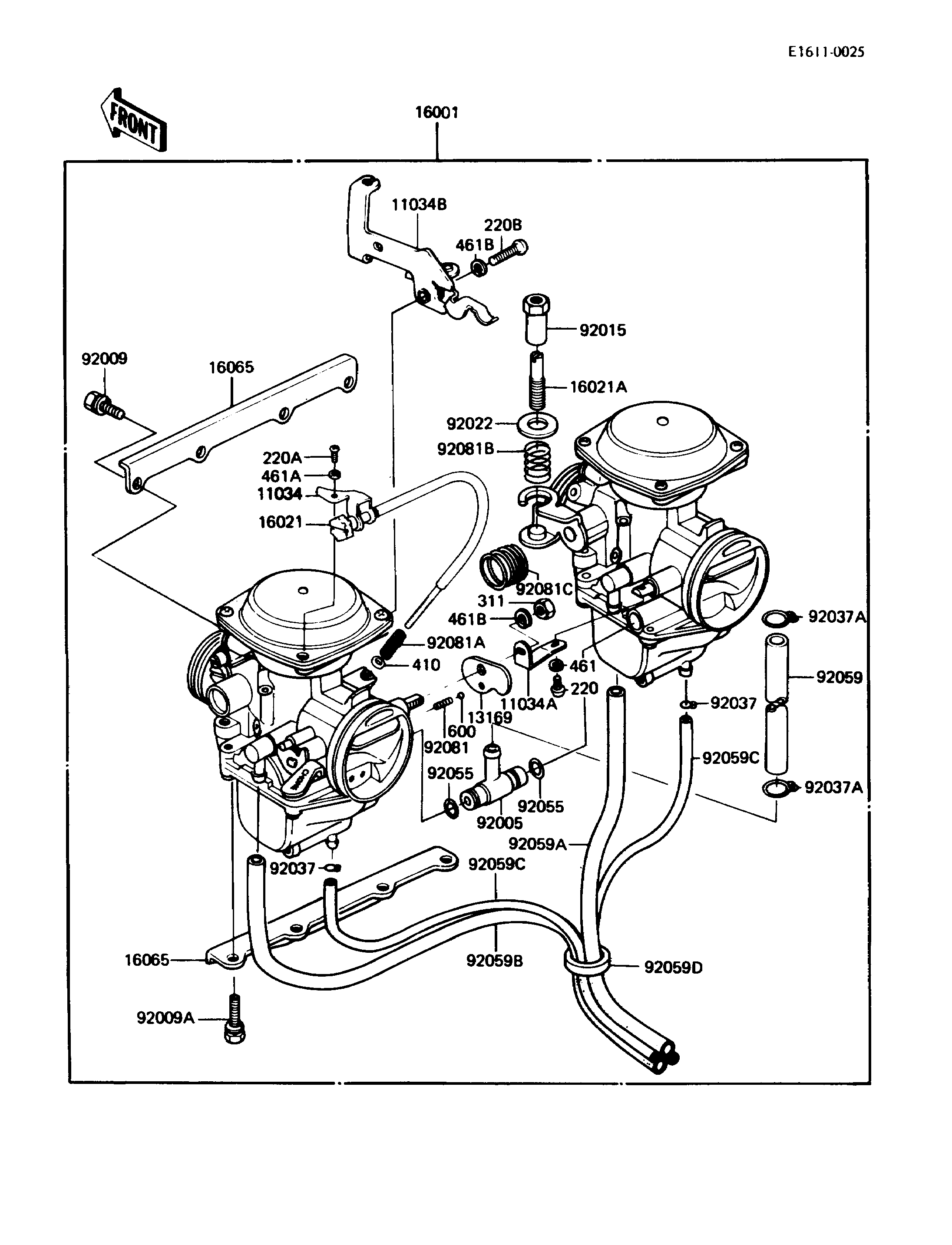

1987 LTD - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STOP SCREW 11034 11034-1202 1 US
BRACKET,CHOKE LEVER 11034A 11034-1203 1 US
BRACKET,THROTTLE CABLE 11034B 11034-1826 1 US
PLATE,CHOKE LINK 13169 13169-1151 1 US
CARBURETOR 16001 16001-1363 1 US
SCREW-THROTTLE STOP 16021 16021-1007 1 US
SCREW-THROTTLE STOP 16021A 16021-1027 1 US
PLATE,STAY 16065 16065-1012 2 US
FITTING,FUEL HOSE 92005 92005-1032 1 US
BOLT,6X16 92009 92009-1005 4 US
BOLT,6X22 92009A 92009-1006 4 US
NUT,5MM 92015 92015-1118 1 US
WASHER 92022 92022-1204 1 US
CLAMP,TUBE 92037 92037-1142 2 US
CLAMP,TUBE 92037A 92037-1194 2 US
RING-O 92055 92055-1004 2 US
TUBE,5.3X10.5X200 92059 92059-1001 1 US
TUBE,4.5X8X380 92059A 92059-110 1 US
TUBE,4.5X8X450 92059B 92059-1106 1 US
TUBE,3.5X6.5X330 92059C 92059-111 2 US
TUBE,CLAMP 92059D 92059-1114 1 US
SPRING 92081 92081-1004 1 US
SPRING,STOP SCREW 92081A 92081-1062 1 US
SPRING 92081B 92081-1252 1 US
SPRING,THROTTLE RETURN 92081C 92081-1453 1 US
SCREW-PAN-CROS 220 220B0306 1 US
SCREW-PAN-CROS 220A 220B0410 1 US
SCREW-PAN-CROS 220B 220B0520 1 US
NUT-HEX 311 311B0500 1 US
WASHER-PLAIN-SMALL,5MM 410 410B0500 1 US
WASHER-SPRING,3MM 461 461F0300 1 US
WASHER-SPRING,4MM 461A 461F0400 1 US
WASHER-SPRING,5MM 461B 461F0500 2 US
BALL-STEEL,1/8" 600 600A0400 1 US
