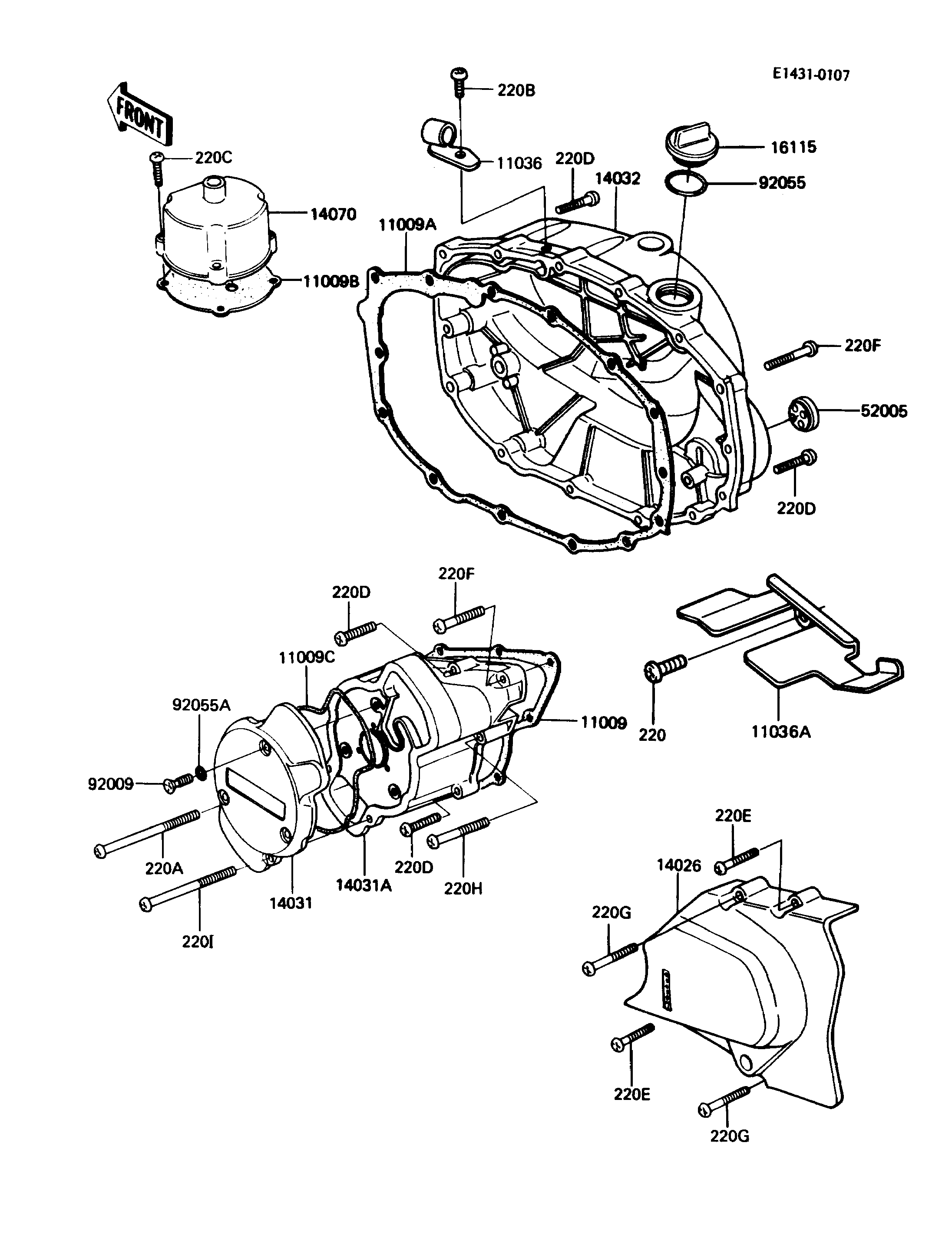

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,GENERATOR COVER | 11009 | 11009-1070 | 1 | ||
| GASKET,CLUTCH COVER | 11009A | 11009-1071 | 1 | ||
| GASKET,BREATHER BODY | 11009B | 11009-1239 | 1 | ||
| GASKET,GENERATOR COVER | 11009C | 11009-1309 | 1 | ||
| BRACKET-A,CLUTCH CABLE | 11036 | 11036-1124 | 1 | ||
| BRACKET-A,HARNESS | 11036A | 11036-1862 | 1 | ||
| COVER-CHAIN | 14026 | 14026-1102 | 1 | ||
| COVER-GENERATOR,"B" | 14031 | 14031-1101 | 1 | ||
| COVER-GENERATOR,"A" | 14031A | 14031-1112 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-1070 | 1 | ||
| BODY-BREATHER | 14070 | 14070-1002 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| SCREW,6X30 | 92009 | 92009-1013 | 3 | ||
| RING-O,31.5X2.6 | 92055 | 92055-049 | 1 | ||
| RING-O,5.28X1.78 | 92055A | 92055-109 | 3 | ||
| SCREW-PAN-CROS,6X14 | 220 | 220B0614 | 1 | ||
| SCREW-PAN-CROS | 220A | 220X06100 | 1 | ||
| SCREW-PAN-CROS | 220B | 220X0612 | 1 | ||
| SCREW-PAN-CROS | 220C | 220X0625 | 4 | ||
| SCREW-PAN-CROS | 220D | 220X0630 | 15 | ||
| SCREW-PAN-CROS | 220E | 220X0635 | 2 | ||
| SCREW-PAN-CROS | 220F | 220X0640 | 3 | ||
| SCREW-PAN-CROS | 220G | 220X0645 | 2 | ||
| SCREW-PAN-CROS | 220H | 220X0655 | 2 | ||
| SCREW-PAN-CROS | 220I | 220X0690 | 1 |
