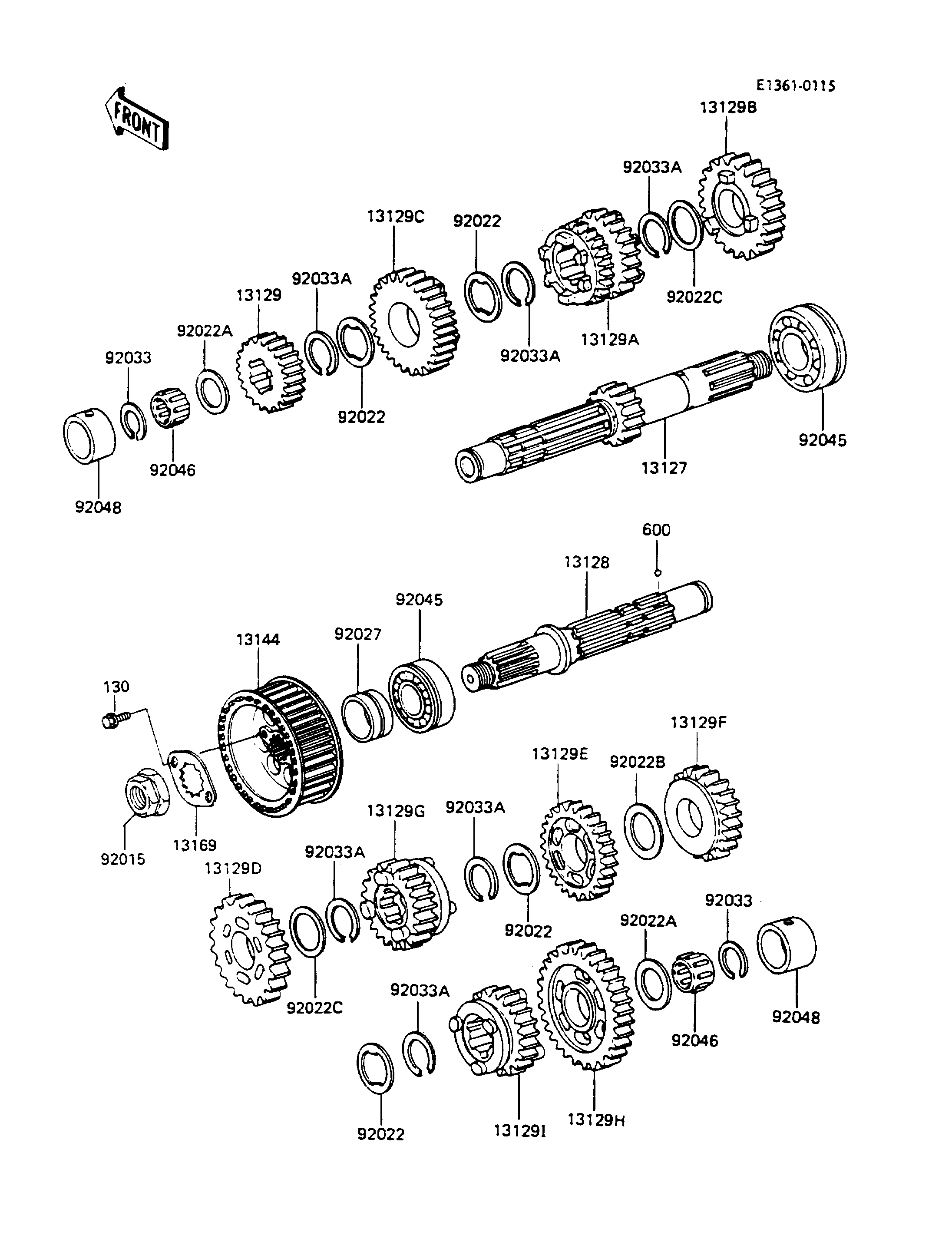

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT | 13127 | 13127-1056 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1053 | 1 | ||
| GEAR,INPUT 2ND,19T | 13129 | 13129-1086 | 1 | ||
| GEAR,INPUT 3RD&4TH,22T&25T | 13129A | 13129-1087 | 1 | ||
| GEAR,INPUT 5TH,27T | 13129B | 13129-1088 | 1 | ||
| GEAR,INPUT TOP,28T | 13129C | 13129-1089 | 1 | ||
| GEAR,OUTPUT 2ND,34T | 13129D | 13129-1091 | 1 | ||
| GEAR,OUTPUT 3RD,31T | 13129E | 13129-1092 | 1 | ||
| GEAR,OUTPUT 4TH,29T | 13129F | 13129-1093 | 1 | ||
| GEAR,OUTPUT TOP,25T | 13129G | 13129-1095 | 1 | ||
| GEAR,OUTPUT LOW,39T | 13129H | 13129-1254 | 1 | ||
| GEAR,OUTPUT 5TH,27T | 13129I | 13129-1255 | 1 | ||
| SPROCKET-OUTPUT,23T | 13144 | 13144-1138 | 1 | ||
| PLATE,LOCK | 13169 | 13169-1742 | 1 | ||
| NUT,20MM | 92015 | 92015-1254 | 1 | ||
| WASHER,TOOTHED,25.3X30X1 | 92022 | 92022-1072 | 4 | ||
| WASHER,20.5X30X1,STEEL | 92022A | 92022-112 | 2 | ||
| WASHER,25.5X38X1 | 92022B | 92022-145 | 1 | ||
| WASHER,25.3X30X0.5 | 92022C | 92022-159 | 2 | ||
| COLLAR,ENGINE SPROCKET | 92027 | 92027-1662 | 1 | ||
| RING-SNAP,20MM | 92033 | 92033-015 | 2 | ||
| RING-SNAP,24MM | 92033A | 92033-026 | 6 | ||
| BEARING-BALL,#6205NX3 | 92045 | 92045-1013 | 2 | ||
| BEARING-NEEDLE,20R2513P | 92046 | 92046-044 | 2 | ||
| RACE,NEEDLE BEARING | 92048 | 92048-1003 | 2 | ||
| BOLT-FLANGED,6X12 | 130 | 130G0612 | 2 | ||
| BALL-STEEL,5/32" | 600 | 600A0500 | 3 |
