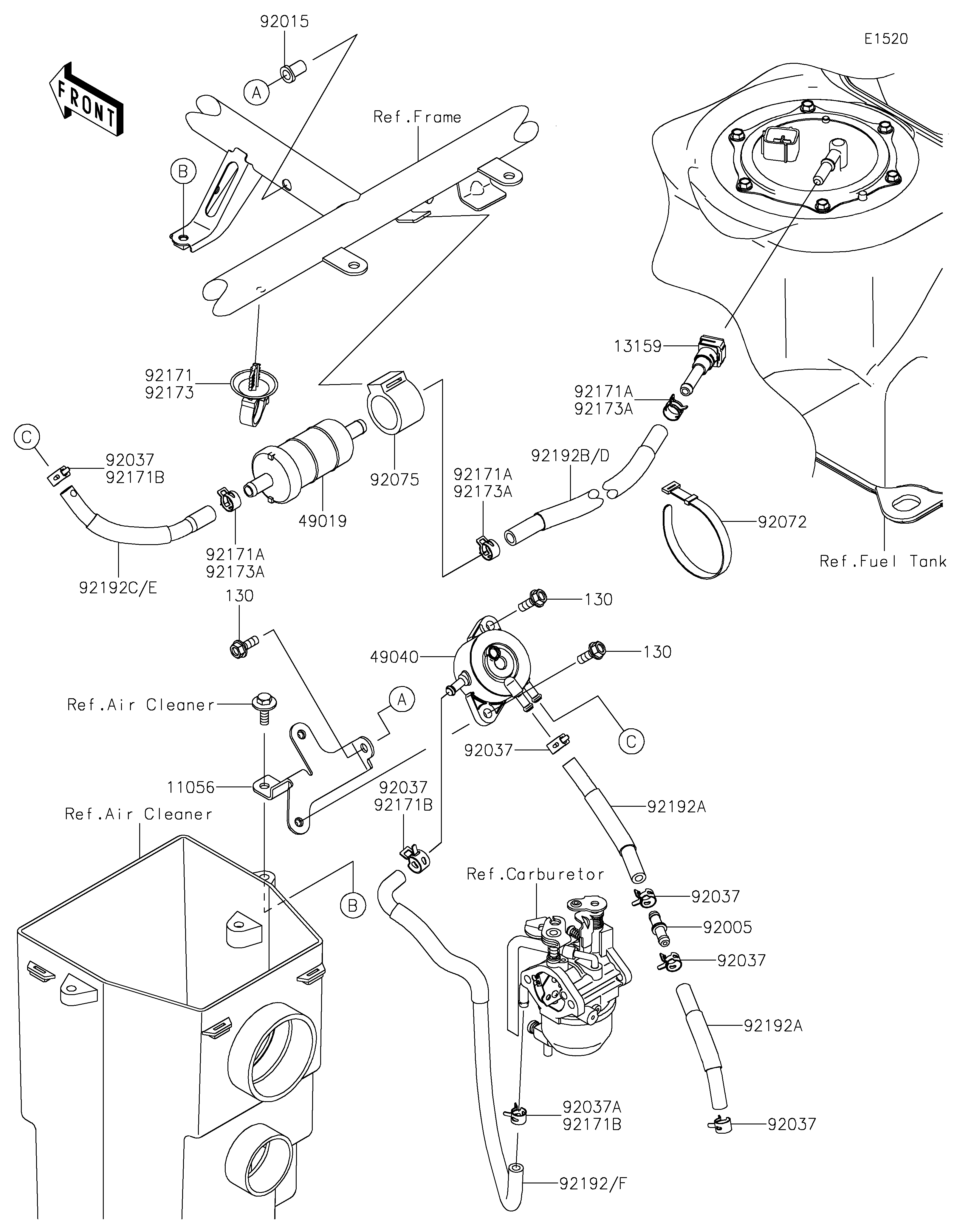

2020 MULE SX™ - Fuel Pump

DOWNLOAD PDF
SELECT A NEW PART
11056
13159
49019
49040
92005
92015
92037
92037
92037
92037
92037
92037
92037A
92072
92075
92171
92171A
92171A
92171A
92171B
92171B
92171B
92173
92173A
92173A
92173A
92192
92192A
92192A
92192B
92192C
92192D
92192E
92192F
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,PUMP-FUEL 11056 11056-4297 1
CONNECTOR 13159 13159-0022 1
FILTER-FUEL 49019 49019-0032 1
PUMP-FUEL 49040 49040-0769 1
FITTING 92005 92005-0856 1
NUT,POP,6MM 92015 92015-1759 1
CLAMP,TUBE 92037 92037-1505 4
CLAMP 92037A 92037-2113 1
BAND,L=186 92072 92072-056 1
DAMPER,FUEL FILTER 92075 92075-1853 1
CLAMP 92171 92171-0453 1
CLAMP 92171A 92171-0515 3
CLAMP 92171B 92171-3712 3
CLAMP,HOLDER CLIP 92173 92173-0868 1
CLAMP 92173A 92173-2314 3
TUBE,CARB.-PUMP FUEL 92192 92192-0826 1
TUBE,CRAB.INSULATOR-PUMP 92192A 92192-1613 2
TUBE,TANK-FUEL FILTER 92192B 92192-1689 1
TUBE,FUEL FILTER-FUEL PUMP 92192C 92192-1750 1
TUBE,TANK-FILTER 92192D 92192-2260 1
TUBE,FILTER-PUMP 92192E 92192-2261 1
TUBE,PUMP-CARB. 92192F 92192-2262 1
BOLT-FLANGED,6X16 130 130BA0616 3
