Parts Diagrams |

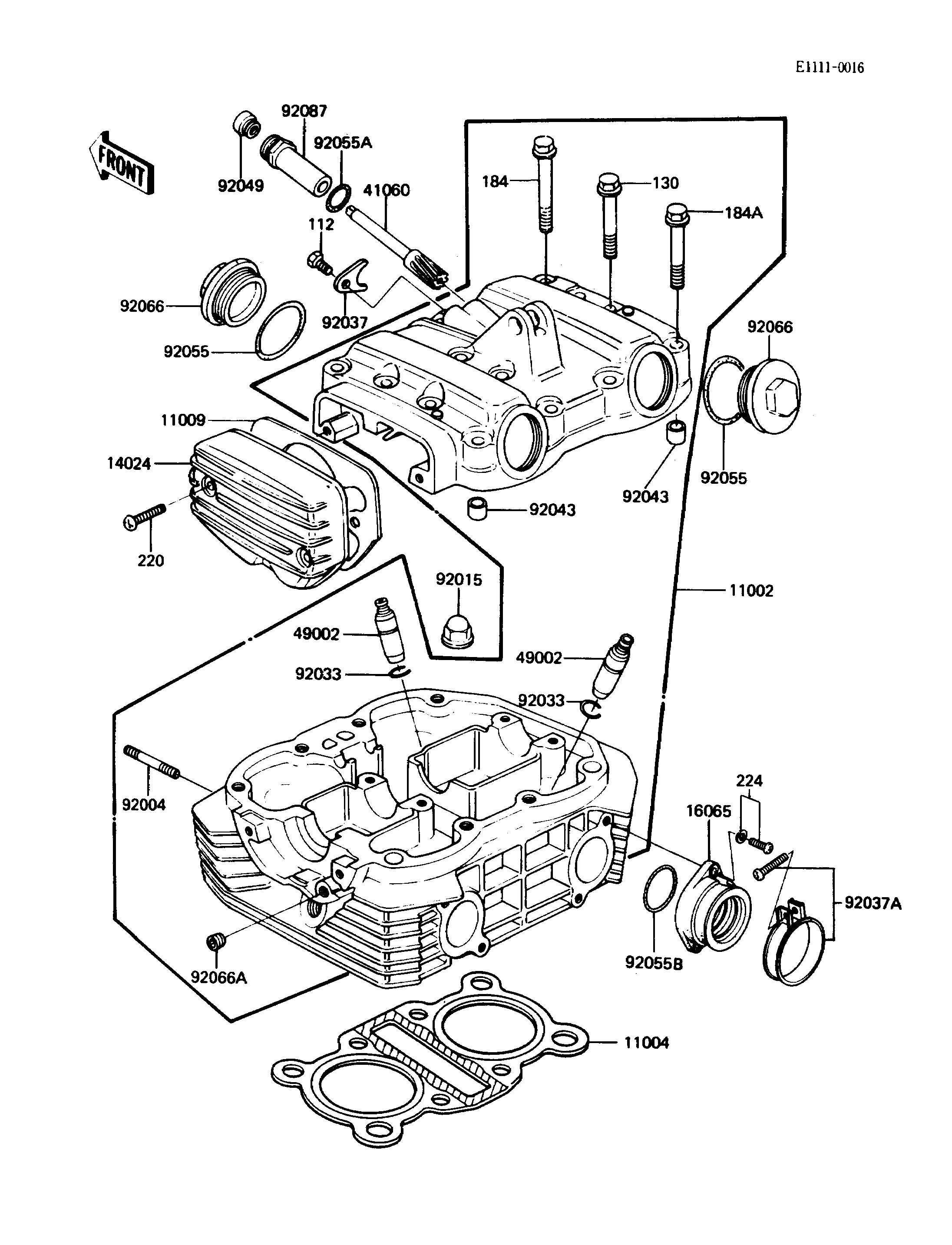

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HEAD-ASSY-CYLINDER | 11002 | 11002-1172 | 1 | ||
| GASKET-HEAD | 11004 | 11004-1036 | 1 | ||
| GASKET,BREAKER | 11009 | 11009-1067 | 1 | ||
| COVER,BREAKER,BARREL | 14024 | 14025-1208 | 1 | ||
| HOLDER-CARBURETOR | 16065 | 16065-1069 | 2 | ||
| GEAR-METER SCREW | 41060 | 41060-1020 | 1 | ||
| GUIDE-VALVE | 49002 | 49002-1021 | AR | ||
| STUD,6X30 | 92004 | 92004-1128 | 4 | ||
| NUT,CAP,8MM | 92015 | 92015-1151 | 8 | ||
| RING-SNAP | 92033 | 92036-023 | 4 | ||
| CLAMP,METER GEAR | 92037 | 92037-1030 | 1 | ||
| CLAMP,ID=53,BLACK | 92037A | 92037-1304 | 2 | ||
| PIN,9.2X12X14 | 92043 | 92043-1265 | 2 | ||
| SEAL-OIL | 92049 | 92050-075 | 1 | ||
| RING-O,36MM | 92055 | 92055-1005 | 4 | ||
| RING-O,13X1.9 | 92055A | 92055-1021 | 1 | ||
| RING-O,33.2MM | 92055B | 92055-1155 | 2 | ||
| PLUG,36X7.5 | 92066 | 92066-1006 | 4 | ||
| PLUG,1/8X7 | 92066A | 92066-1173 | 1 | ||
| BUSHING-METER GEAR | 92087 | 92087-1001 | 1 | ||
| BOLT-UPSET | 112 | 112X0614 | 1 | ||
| BOLT-FLANGED | 130 | 130Y0650 | 5 | ||
| BOLT-UPSET-WP-SMALL | 184 | 184Y0850 | 6 | ||
| BOLT-UPSET-WP-SMALL | 184A | 184Y0860 | 2 | ||
| SCREW-PAN-CROS | 220 | 220X0625 | 2 | ||
| SCREW-PAN-WP-CROS | 224 | 224X0618 | 4 |
| HEAD-ASSY-CYLINDER | |
| REF # | 11002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-HEAD | |
| REF # | 11004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,BREAKER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,BREAKER,BARREL | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-CARBURETOR | |
| REF # | 16065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GEAR-METER SCREW | |
| REF # | 41060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-VALVE | |
| REF # | 49002 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| STUD,6X30 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,METER GEAR | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,ID=53,BLACK | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,9.2X12X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,36MM | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING-O,13X1.9 | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,33.2MM | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG,36X7.5 | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG,1/8X7 | |
| REF # | 92066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-METER GEAR | |
| REF # | 92087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 112 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WP-SMALL | |
| REF # | 184 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WP-SMALL | |
| REF # | 184A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WP-CROS | |
| REF # | 224 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
