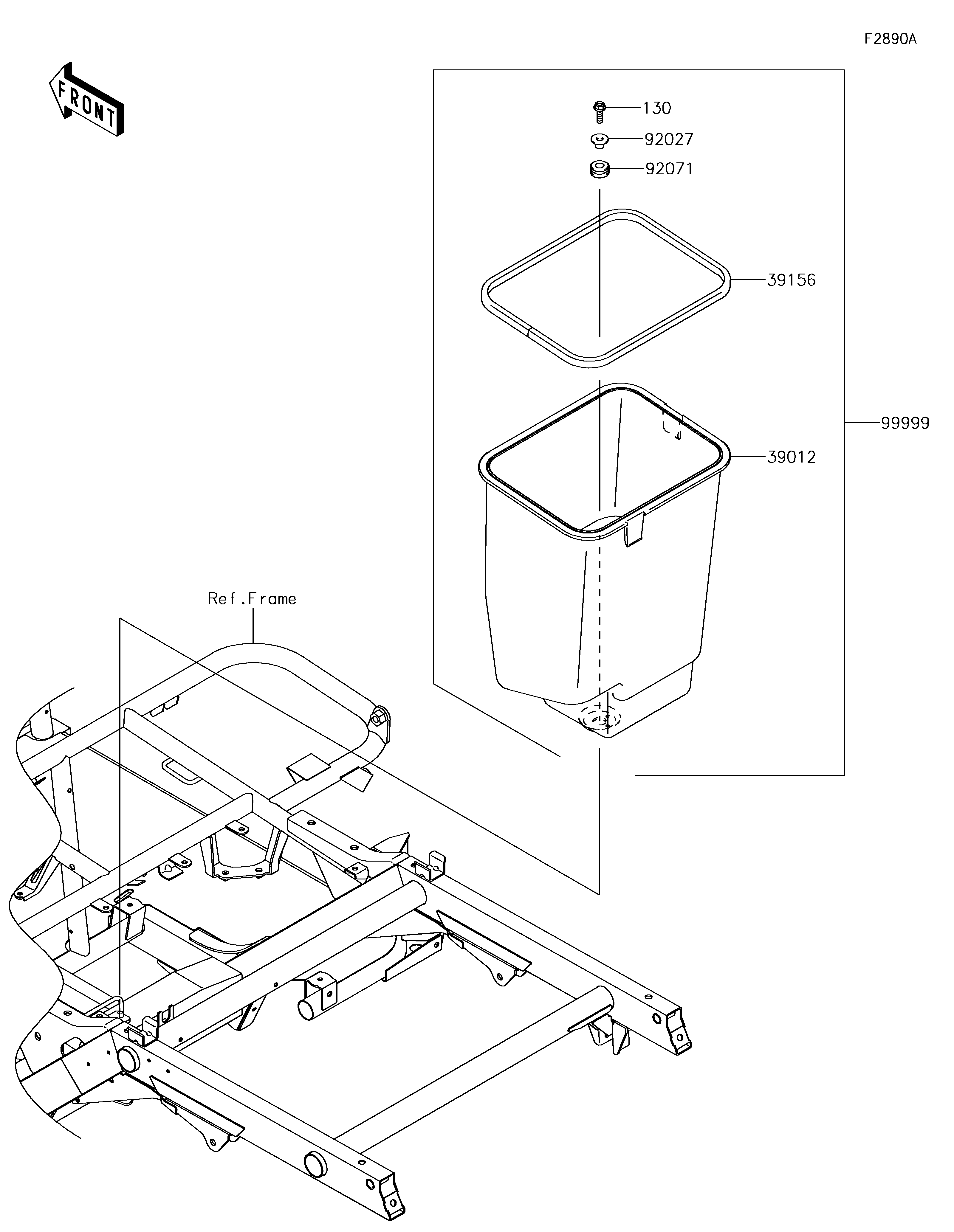

2018 MULE SX™ 4x4 SE - Optional Parts(Frame)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-STORAGE | 39012 | 39012-0006 | 1 | (OPTION) | |
| PAD,STORAGE CASE | 39156 | 39156-0052 | 1 | (OPTION) | |
| COLLAR | 92027 | 92027-1767 | 1 | (OPTION) | |
| GROMMET | 92071 | 92071-1010 | 1 | (OPTION) | |
| KIT.,STORAGE BOX | 99999 | 99999-0054 | 1 | (OPTION) | |
| BOLT-FLANGED,6X20 | 130 | 130BB0620 | 1 | (OPTION) |
| CASE-STORAGE | |
| REF # | 39012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PAD,STORAGE CASE | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| KIT.,STORAGE BOX | |
| REF # | 99999 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| BOLT-FLANGED,6X20 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
