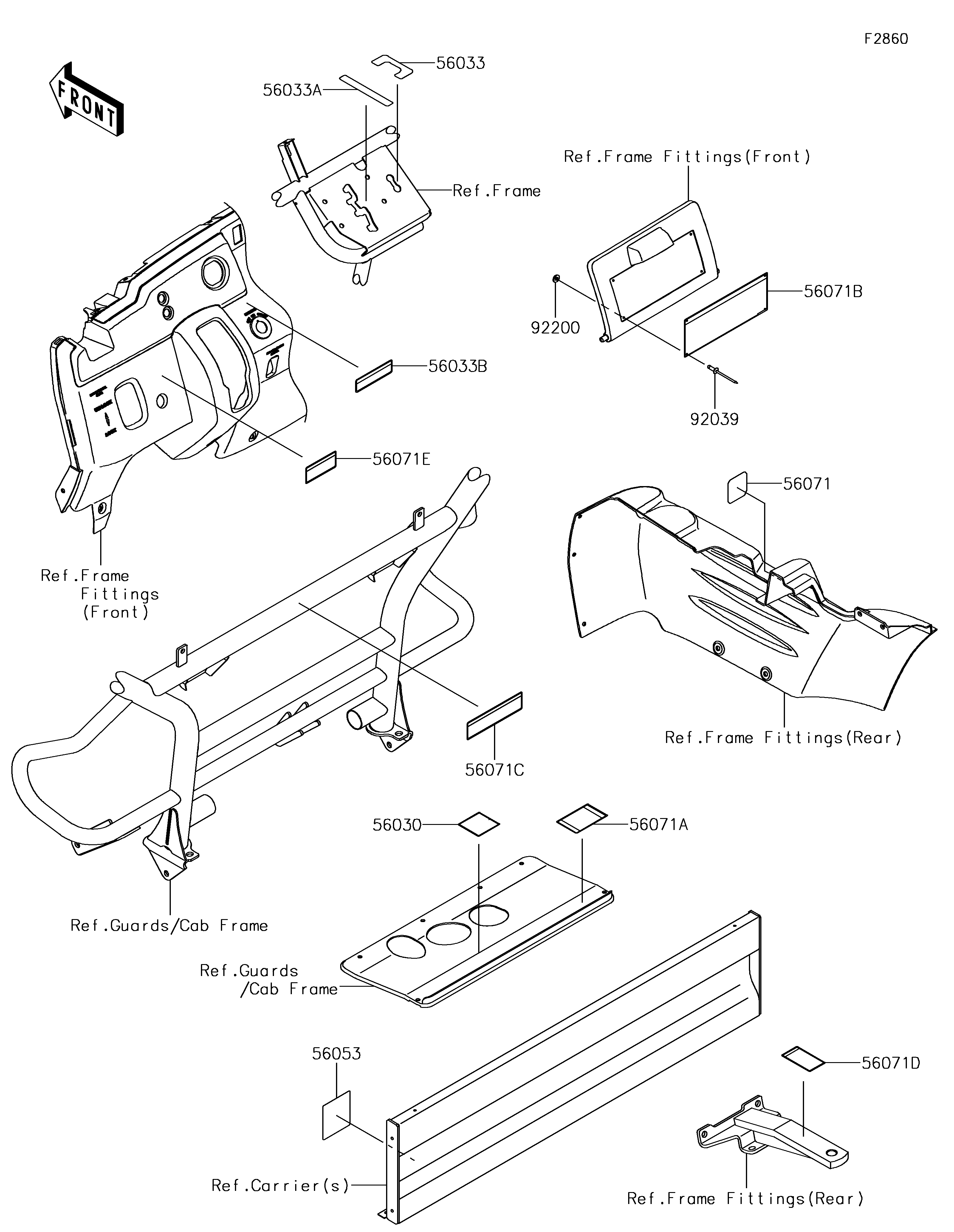

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,OIL GAUGE | 56030 | 56030-0984 | 1 | ||
| LABEL-MANUAL,2/4WD | 56033 | 56033-0052 | 1 | ||
| LABEL-MANUAL,SHIFT | 56033A | 56033-0056 | 1 | ||
| LABEL-MANUAL,SHIFT NOTICE | 56033B | 56033-0822 | 1 | ||
| LABEL-SPECIFICATION,TIRE&LOAD | 56053 | 56053-1337 | 1 | ||
| LABEL-WARNING,GASOLINE | 56071 | 56071-0588 | 1 | ||
| LABEL-WARNING,HOT SURFACE | 56071A | 56071-0596 | 1 | ||
| LABEL-WARNING,GENERAL | 56071B | 56071-0597 | 1 | ||
| LABEL-WARNING,CARGO BED | 56071C | 56071-0599 | 1 | ||
| LABEL-WARNING,TRAILER WEIGHT | 56071D | 56071-0607 | 1 | ||
| LABEL-WARNING,CARGO BED | 56071E | 56071-0638 | 1 | ||
| RIVET,3.2X8 | 92039 | 92039-3763 | 4 | ||
| WASHER,3.5X8X1 | 92200 | 92200-1251 | 4 |
