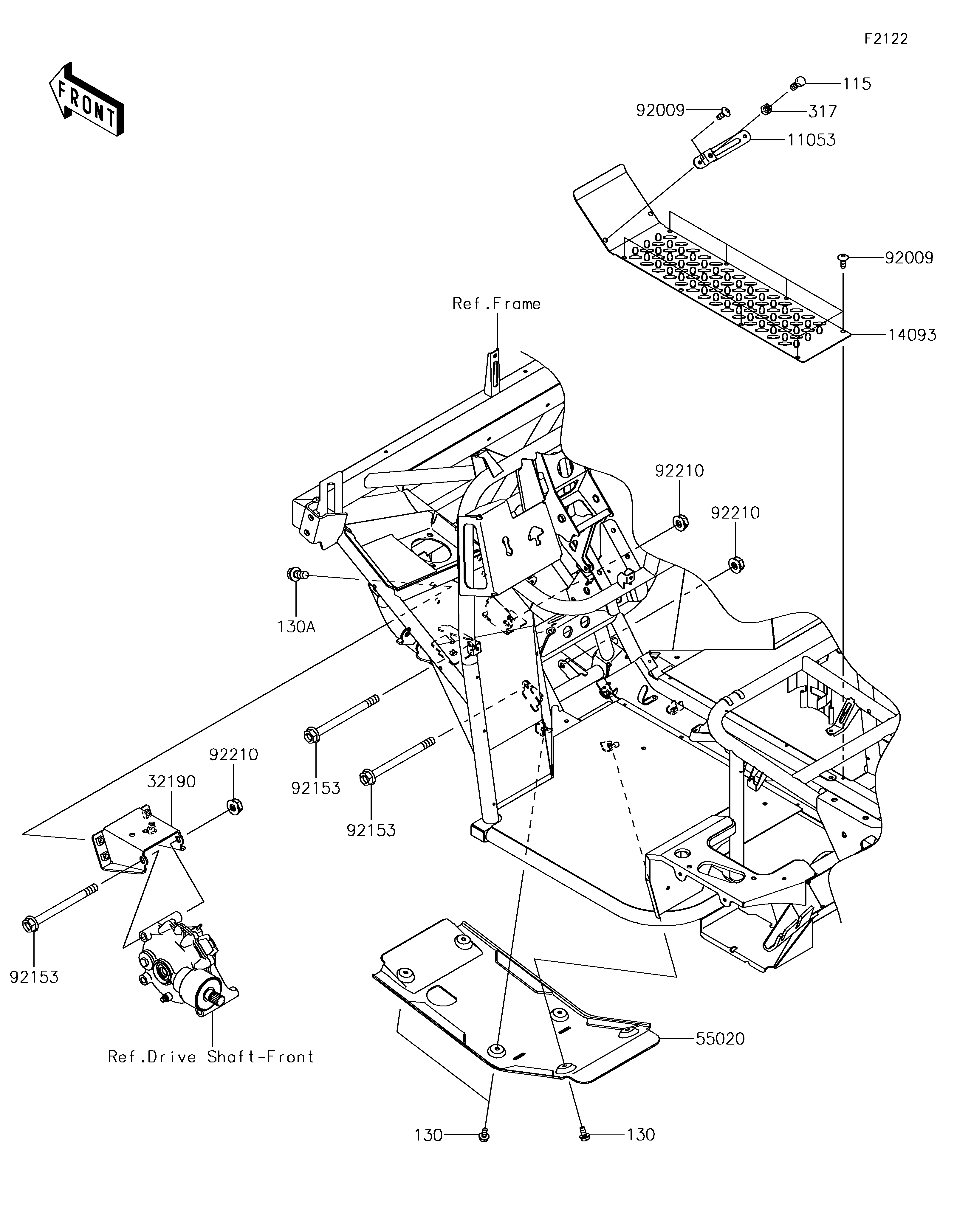

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,THROTTLE LEVER | 11053 | 11053-1670 | 1 | ||
| COVER,FLOOR,CNT | 14093 | 14093-0469 | 1 | ||
| BRACKET-ENGINE | 32190 | 32190-0639 | 1 | ||
| GUARD,FRONT DIFF | 55020 | 55020-0165 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 9 | ||
| BOLT,FLANGED,10X120 | 92153 | 92153-7502 | 3 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 3 | ||
| BOLT-SMALL-UPSET,8X20 | 115 | 115BA0820 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 6 | ||
| BOLT-FLANGED,10X20 | 130A | 130BA1020 | 4 | ||
| NUT-HEX-SMALL,8MM | 317 | 317BA0800 | 1 |
