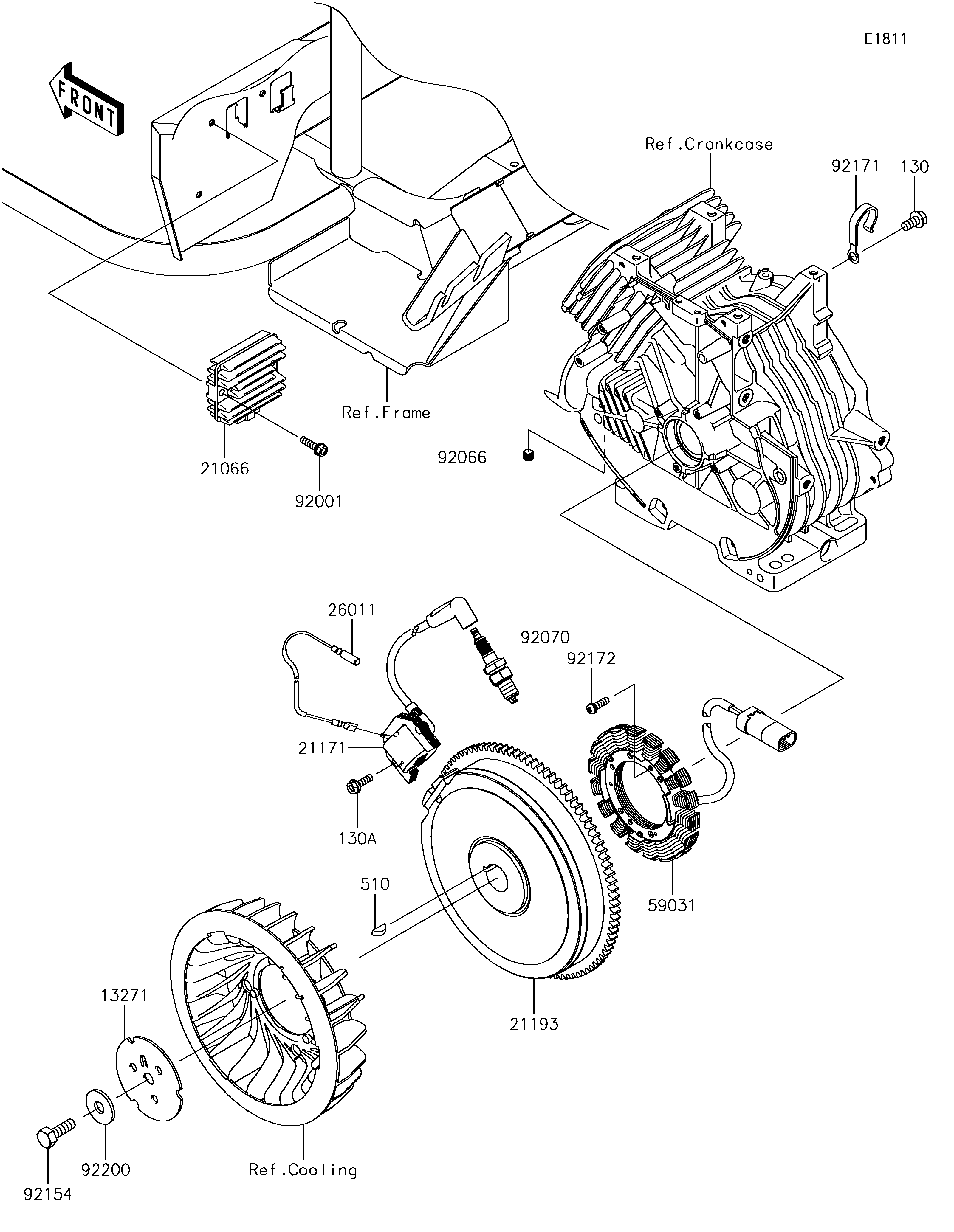

2018 MULE SX™ 4x4 SE - Generator/Ignition Coil
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,FAN | 13271 | 13271-7029 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-0039 | 1 | ||
| COIL-ASSY-IGNITION | 21171 | 21171-7035 | 1 | ||
| FLYWHEEL-ASSY | 21193 | 21193-0025 | 1 | ||
| WIRE-LEAD | 26011 | 26011-7014 | 1 | ||
| COIL-CHARGING | 59031 | 59031-2132 | 1 | ||
| BOLT,FLANGED,6X22 | 92001 | 92001-1352 | 2 | ||
| PLUG | 92066 | 92066-0762 | 1 | ||
| PLUG-SPARK,BPR5ES(NGK),SOLID | 92070 | 92070-2088 | 1 | ||
| BOLT,12X30 | 92154 | 92154-7003 | 1 | ||
| CLAMP | 92171 | 92171-7005 | 1 | ||
| SCREW,5X20 | 92172 | 92172-7018 | 4 | ||
| WASHER | 92200 | 92200-7002 | 1 | ||
| BOLT-FLANGED,8X16 | 130 | 130AA0816 | 1 | ||
| BOLT-FLANGED,6X20 | 130A | 130BA0620 | 2 | ||
| KEY-WOODRUFF | 510 | 510A5100 | 1 |
| PLATE,FAN | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REGULATOR-VOLTAGE | |
| REF # | 21066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-ASSY-IGNITION | |
| REF # | 21171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLYWHEEL-ASSY | |
| REF # | 21193 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-CHARGING | |
| REF # | 59031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X22 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,BPR5ES(NGK),SOLID | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,12X30 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X20 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X20 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KEY-WOODRUFF | |
| REF # | 510 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
