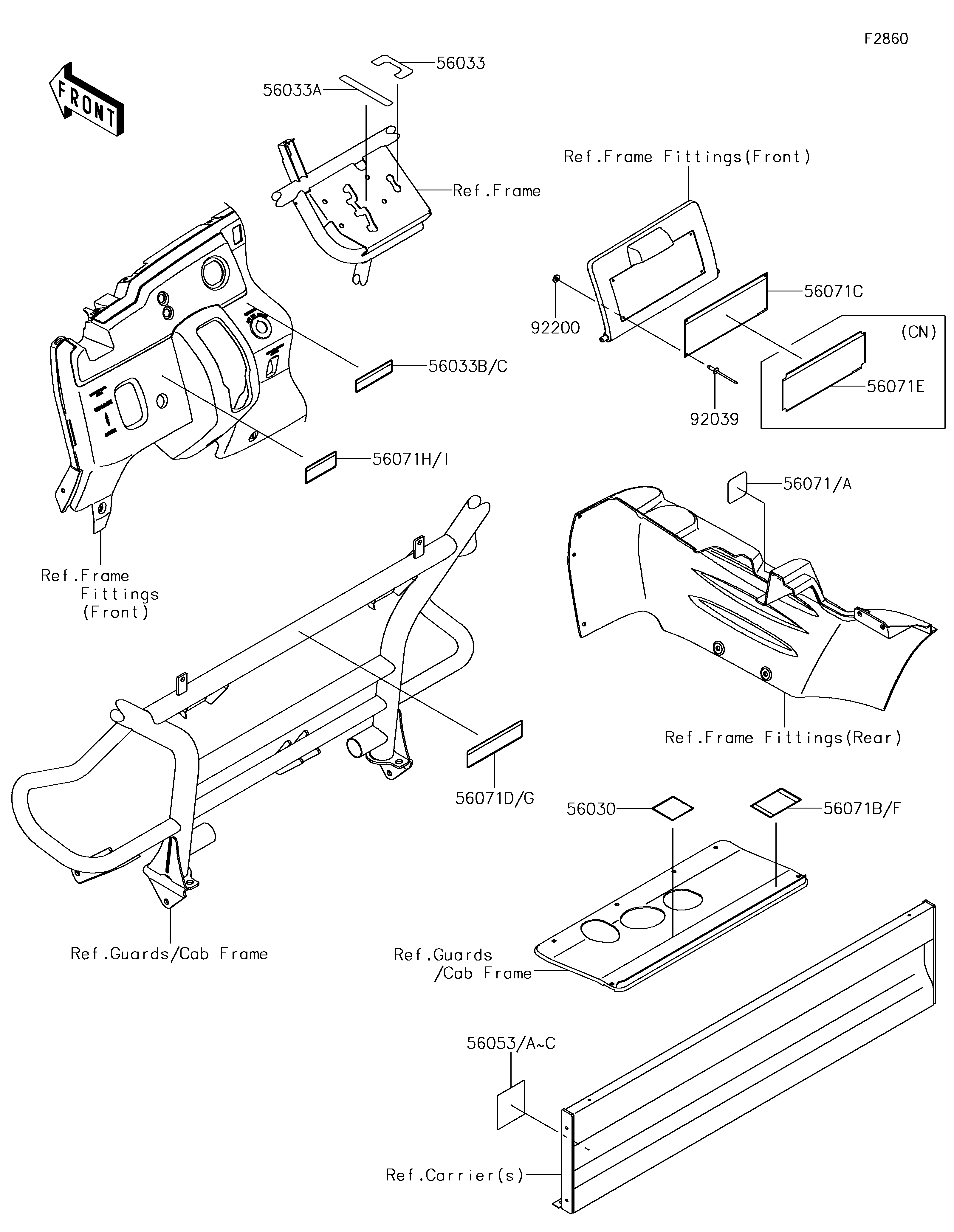

Parts Diagrams |
56030
56033
56033A
56033B
56033C
56053B
56053C
56071
56071A
56071B
56071C
56071D
56071E
56071F
56071G
56071H
56071I
92039
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,OIL GAUGE | 56030 | 56030-0984 | 1 | ||
| LABEL-MANUAL,2/4WD | 56033 | 56033-0052 | 1 | ||
| LABEL-MANUAL,SHIFT | 56033A | 56033-0056 | 1 | ||
| LABEL-MANUAL,SHIFT NOTICE | 56033B | 56033-0822 | 1 | ||
| LABEL-MANUAL,SHIFT NOTICE | 56033C | 56033-0826 | 1 | CN | |
| LABEL-SPECIFICATION,TIRE&LOAD | 56053B | 56053-1507 | 1 | ||
| LABEL-SPECIFICATION,TIRE&LOAD | 56053C | 56053-1511 | 1 | CN | |
| LABEL-WARNING,GASOLINE | 56071 | 56071-0588 | 1 | ||
| LABEL-WARNING,GASOLINE | 56071A | 56071-0593 | 1 | CN | |
| LABEL-WARNING,HOT SURFACE | 56071B | 56071-0596 | 1 | ||
| LABEL-WARNING,GENERAL | 56071C | 56071-0597 | 1 | ||
| LABEL-WARNING,CARGO BED | 56071D | 56071-0599 | 1 | ||
| LABEL-WARNING,GENERAL | 56071E | 56071-0601 | 1 | CN | |
| LABEL-WARNING,HOT SURFACE | 56071F | 56071-0603 | 1 | CN | |
| LABEL-WARNING,CARGO BED | 56071G | 56071-0605 | 1 | CN | |
| LABEL-WARNING,CARGO BED | 56071H | 56071-0638 | 1 | ||
| LABEL-WARNING,CARGO BED | 56071I | 56071-0639 | 1 | CN | |
| RIVET,3.2X8 | 92039 | 92039-3763 | 4 | ||
| WASHER,3.5X8X1 | 92200 | 92200-1251 | 4 |
