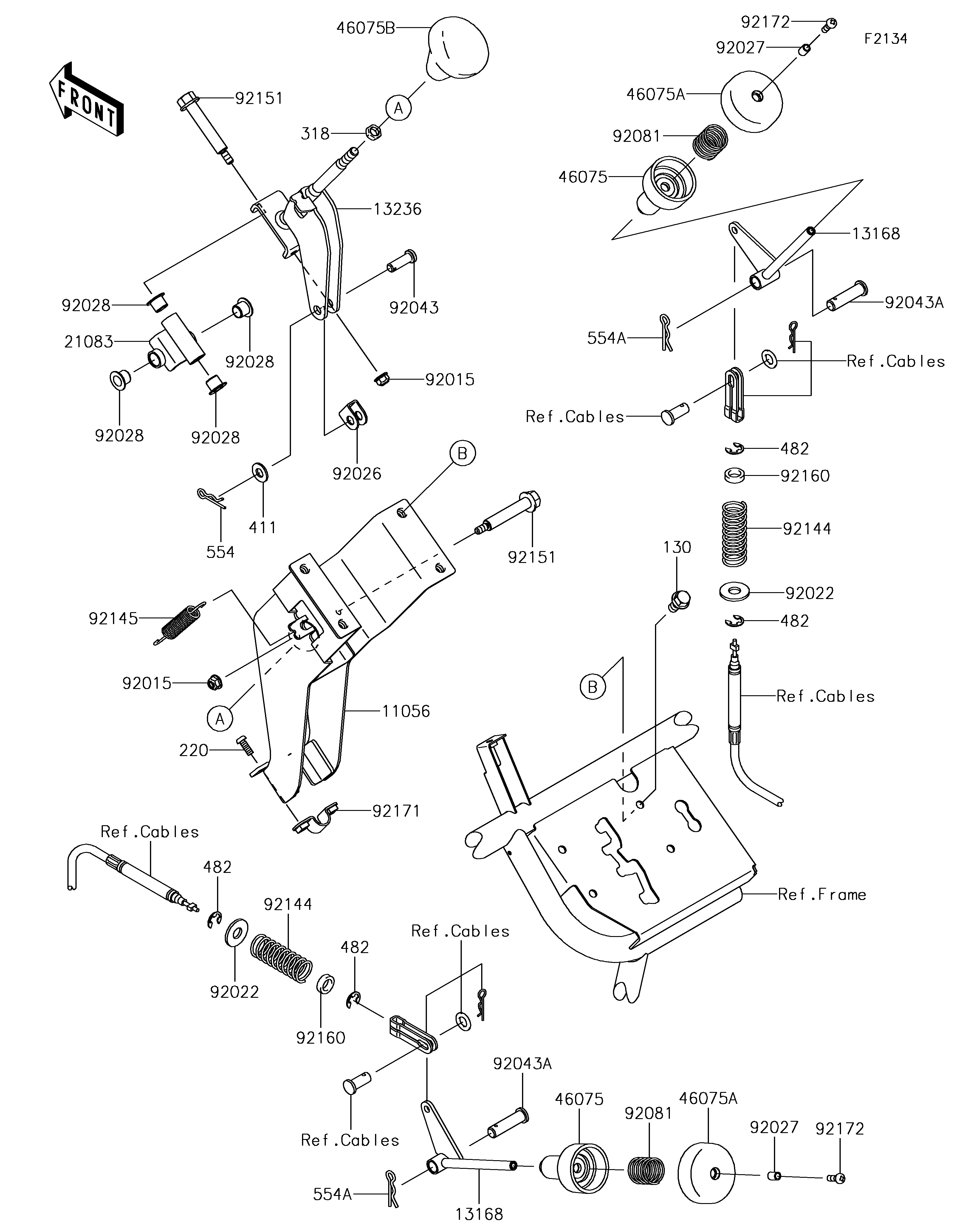

2019 MULE SX™ 4x4 XC - Shift Lever(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
13168
13168
13236
21083
46075
46075
46075A
46075A
46075B
92015
92015
92022
92022
92026
92027
92027
92028
92028
92028
92028
92043
92043A
92043A
92081
92081
92144
92144
92145
92151
92151
92160
92160
92171
92172
92172
130
220
318
411
482
482
482
482
554
554A
554A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SHIFT LEVER 11056 11056-2237 1
LEVER 13168 13168-0069 2
LEVER-COMP,SHIFT 13236 13236-0073 1
ARM 21083 21083-0023 1
GRIP 46075 46075-0012 2
GRIP 46075A 46075-0014 2
GRIP,SHIFT 46075B 46075-0046 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 2
WASHER,10.5X26X2.3 92022 92022-044 2
SPACER 92026 92026-0074 1
COLLAR,5X7X9.3 92027 92027-1313 2
BUSHING 92028 92028-1507 4
PIN 92043 92043-0053 1
PIN,10X34 92043A 92043-1069 2
SPRING 92081 92081-1714 2
SPRING 92144 92144-1510 2
SPRING 92145 92145-0249 1
BOLT,6MM 92151 92151-1747 2
DAMPER 92160 92160-3754 2
CLAMP 92171 92171-0365 1
SCREW 92172 92172-7501 2
BOLT-FLANGED,8X16 130 130BA0816 4
SCREW-PAN-CROS,5X14 220 220AA0514 2
NUT-HEX-SMALL 318 318BB0800 1
WASHER-PLAIN,8MM 411 411AA0800 1
CIRCLIP-TYPE-E,8MM 482 482EA8000 4
PIN-SNAP 554 554DA0800 1
PIN-SNAP,10MM 554A 554DA1000 2
