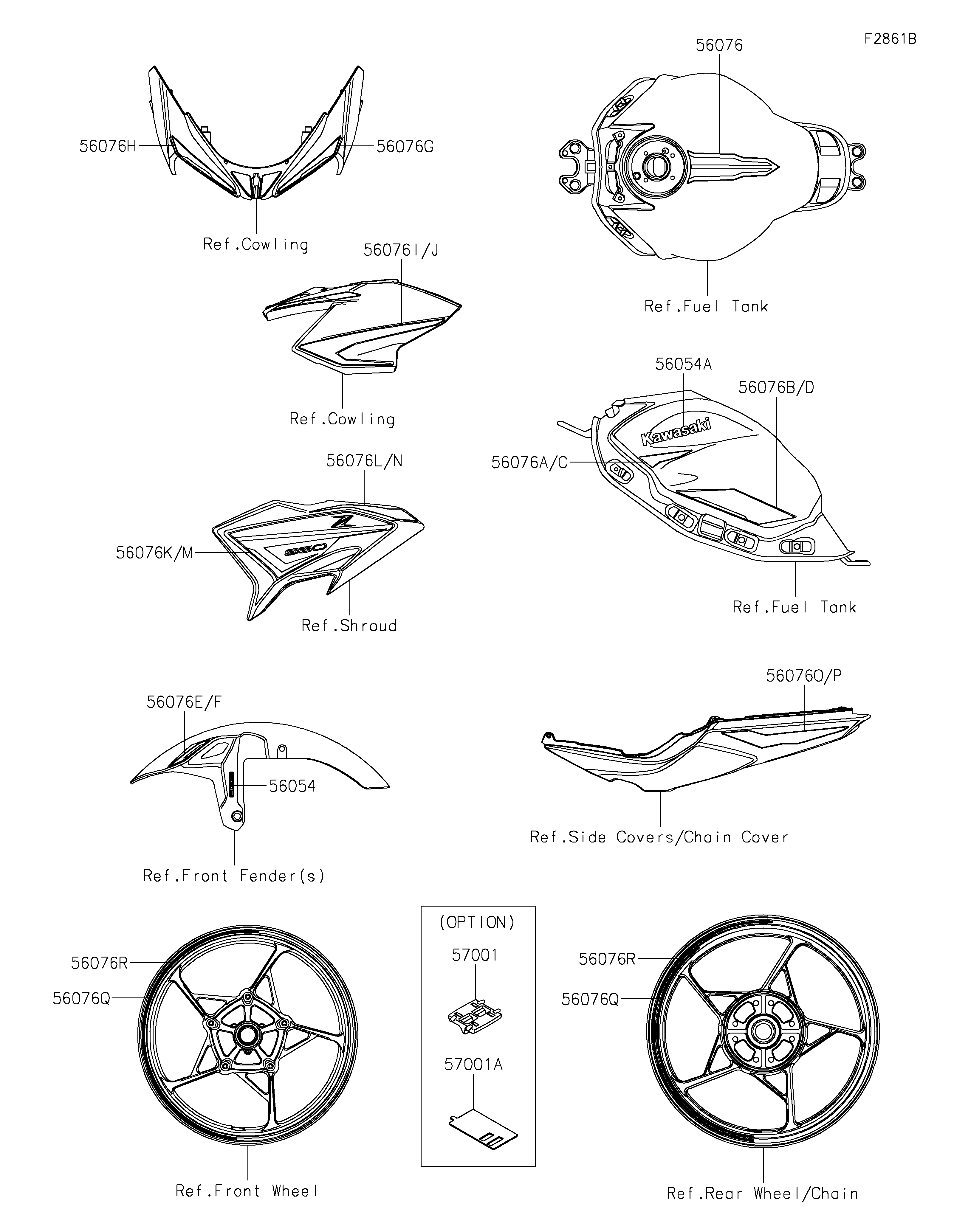

2022 Z650 ABS - Decals(White)(KNFAN/KNFAL)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076M
56076N
56076O
56076P
56076Q
56076Q
56076R
56076R
57001
57001A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,ABS 56054 56054-1412 2
MARK,FUEL TANK,KAWASAKI 56054A 56054-1477 2
PATTERN,FUEL TANK,CNT 56076 56076-2848 1
PATTERN,FUEL TANK,LH,FR 56076A 56076-2849 1
PATTERN,FUEL TANK,LH,RR 56076B 56076-2850 1
PATTERN,FUEL TANK,RH,FR 56076C 56076-2851 1
PATTERN,FUEL TANK,RH,RR 56076D 56076-2852 1
PATTERN,FR FENDER,LH 56076E 56076-2853 1
PATTERN,FR FENDER,RH 56076F 56076-2854 1
PATTERN,UPP COWL.,LH,FR 56076G 56076-2855 1
PATTERN,UPP COWL.,RH,FR 56076H 56076-2856 1
PATTERN,UPP COWL.,LH 56076I 56076-2857 1
PATTERN,UPP COWL.,RH 56076J 56076-2858 1
PATTERN,SHROUD,LH,FR 56076K 56076-2859 1
PATTERN,SHROUD,LH,RR 56076L 56076-2860 1
PATTERN,SHROUD,RH,FR 56076M 56076-2861 1
PATTERN,SHROUD,RH,RR 56076N 56076-2862 1
PATTERN,TAIL COVER,LH 56076O 56076-2863 1
PATTERN,TAIL COVER,RH 56076P 56076-2864 1
PATTERN,WHEEL,BLK/WHT,535X12 56076Q 56076-3744 4
PATTERN,WHEEL,BLK/RED,700X6 56076R 56076-3745 4
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
RIM STRIPE APPLICATOR,10/12MM 57001A 57001-1836 AR (OPTION)
