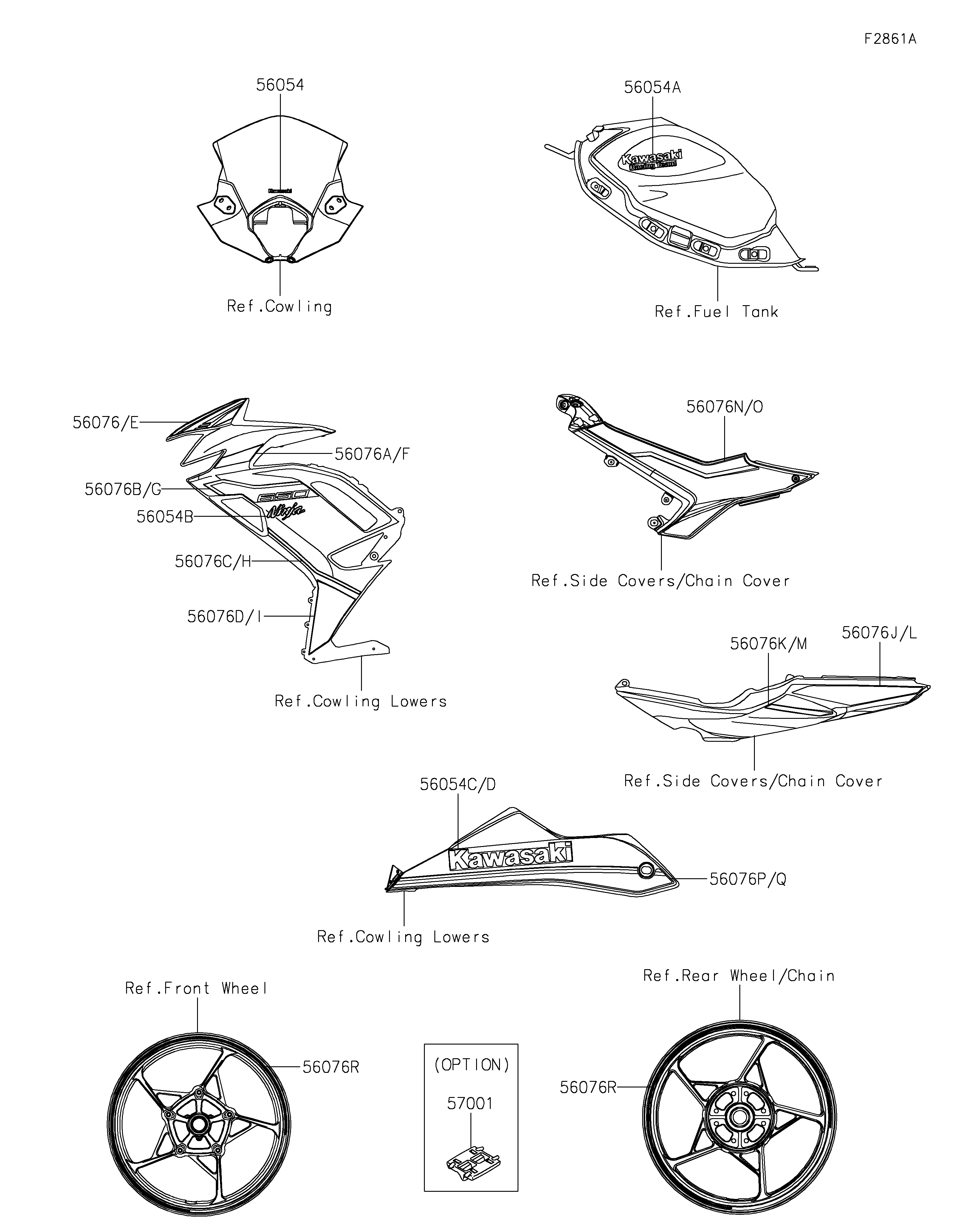

2022 NINJA® 650 - Decals(Green)(NNFAN/NNFAL)
56054
56054A
56054B
56054C
56054D
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076M
56076N
56076O
56076P
56076Q
56076R
56076R
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD,KAWASAKI | 56054 | 56054-2261 | 1 | ||
| MARK,FUEL TANK,KRT | 56054A | 56054-2790 | 1 | ||
| MARK,SIDE COWL.,NINJA | 56054B | 56054-2815 | 1 | ||
| MARK,LWR COWL.,RH,KAWASAKI | 56054C | 56054-2817 | 1 | ||
| MARK,LWR COWL.,LH,KAWASAKI | 56054D | 56054-2828 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP,UPP | 56076 | 56076-1693 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP | 56076A | 56076-1694 | 1 | ||
| PATTERN,SIDE COWL.,LH,CNT | 56076B | 56076-1695 | 1 | ||
| PATTERN,SIDE COWL.,LH,CNT,LWR | 56076C | 56076-1696 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR,LWR | 56076D | 56076-1697 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP,UPP | 56076E | 56076-1698 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP | 56076F | 56076-1699 | 1 | ||
| PATTERN,SIDE COWL.,RH,CNT | 56076G | 56076-1700 | 1 | ||
| PATTERN,SIDE COWL.,RH,CNT,LWR | 56076H | 56076-1701 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR,LWR | 56076I | 56076-1702 | 1 | ||
| PATTERN,TAIL COVER,LH,UPP | 56076J | 56076-1703 | 1 | ||
| PATTERN,TAIL COVER,LH,LWR | 56076K | 56076-1704 | 1 | ||
| PATTERN,TAIL COVER,RH,UPP | 56076L | 56076-1705 | 1 | ||
| PATTERN,TAIL COVER,RH,LWR | 56076M | 56076-1706 | 1 | ||
| PATTERN,SIDE COVER,LH | 56076N | 56076-1707 | 1 | ||
| PATTERN,SIDE COVER,RH | 56076O | 56076-1708 | 1 | ||
| PATTERN,LWR COWL.,LH | 56076P | 56076-1709 | 1 | ||
| PATTERN,LWR COWL.,RH | 56076Q | 56076-1710 | 1 | ||
| PATTERN,WHEEL,BLACK,6X1079 | 56076R | 56076-2170 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | 1 | (OPTION) |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,KRT | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COWL.,NINJA | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWL.,RH,KAWASAKI | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWL.,LH,KAWASAKI | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,UPP,UPP | |
| REF # | 56076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,UPP | |
| REF # | 56076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,CNT | |
| REF # | 56076B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,CNT,LWR | |
| REF # | 56076C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,LWR,LWR | |
| REF # | 56076D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,UPP,UPP | |
| REF # | 56076E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,UPP | |
| REF # | 56076F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,CNT | |
| REF # | 56076G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,CNT,LWR | |
| REF # | 56076H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,LWR,LWR | |
| REF # | 56076I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH,UPP | |
| REF # | 56076J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH,LWR | |
| REF # | 56076K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH,UPP | |
| REF # | 56076L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH,LWR | |
| REF # | 56076M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56076N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56076O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWL.,LH | |
| REF # | 56076P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWL.,RH | |
| REF # | 56076Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,BLACK,6X1079 | |
| REF # | 56076R |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
