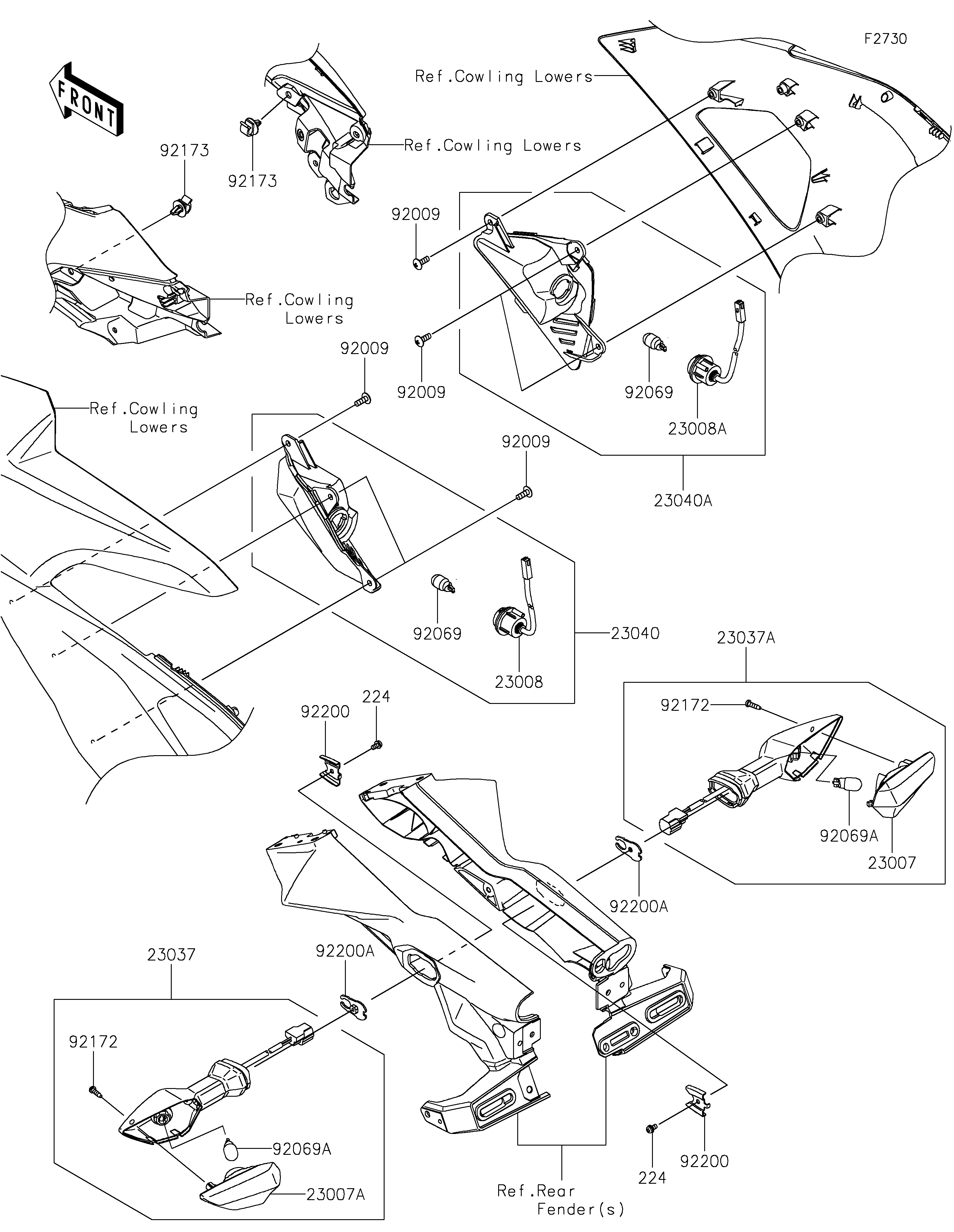

2022 NINJA® 650 - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
23007
23007A
23008
23008A
23037
23037A
23040
23040A
92009
92009
92009
92009
92069
92069
92069A
92069A
92172
92172
92173
92173
92200
92200
92200A
92200A
224
224
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LENS-COMP 23007 23007-0228 1
LENS-COMP 23007A 23007-0229 1
SOCKET-ASSY,LH 23008 23008-0167 1
SOCKET-ASSY,RH 23008A 23008-0168 1
LAMP-ASSY-SIGNAL,RR,LH 23037 23037-0535 1
LAMP-ASSY-SIGNAL,RR,RH 23037A 23037-0536 1
LAMP-SIGNAL,FR,LH 23040 23040-0135 1
LAMP-SIGNAL,FR,RH 23040A 23040-0136 1
SCREW,TAPPING,5X14 92009 92009-1197 6
BULB,12V 10W 92069 92069-0058 2
BULB,12V 10W 92069A 92069-0090 2
SCREW,4X14 92172 92172-1117 2
CLAMP,CABLE CLIP 92173 92173-1022 2
WASHER 92200 92200-0855 2
WASHER,SIGNAL LAMP 92200A 92200-2294 2
SCREW-PAN-WP-CROS,4X8 224 224AB0408 2
