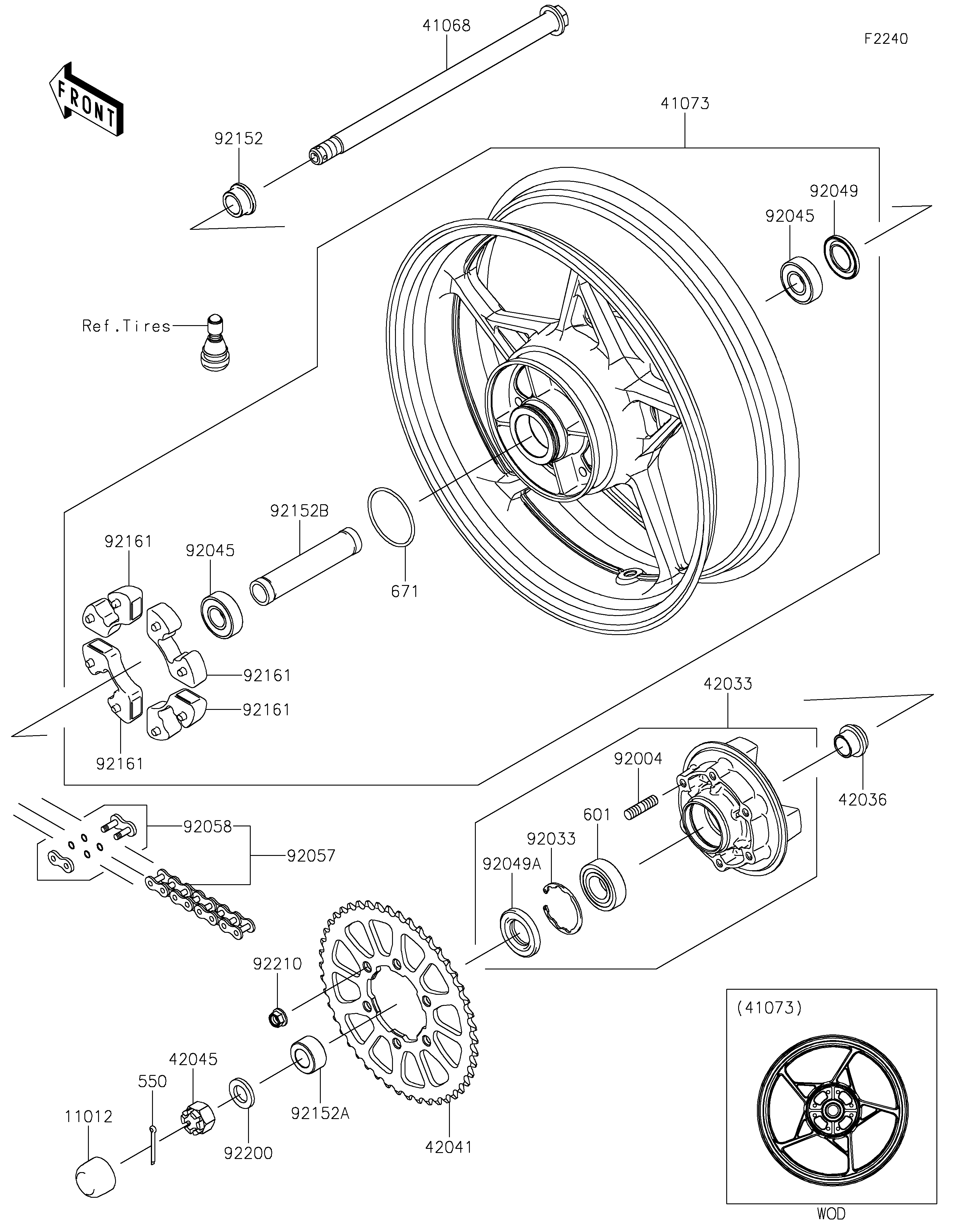

2022 NINJA® 650 - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
11012
41068
41073
42033
42036
42041
42045
92004
92033
92045
92045
92049
92049A
92057
92058
92152
92152A
92152B
92161
92161
92161
92161
92200
92210
550
601
671
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,AXLE NUT 11012 11012-1590 1
AXLE,RR,20X339.9 41068 41068-0617 1
WHEEL-ASSY,RR,G.BLACK 41073 41073-0704-QT 1
COUPLING-ASSY,RR HUB 42033 42033-0570 1
SLEEVE,RR HUB,L=23 42036 42036-1251 1
SPROCKET-HUB,46T 42041 42041-0177 1
NUT,CASTLE,18MM 42045 42045-018 1
STUD,10X19 92004 92004-0048 6
RING-SNAP,52MM 92033 92033-1043 1
BEARING-BALL,20X47X14 92045 92045-0821 2
SEAL-OIL,28 47 5 92049 92049-0140 1
SEAL-OIL 92049A 92049-1287 1
CHAIN,DRIVE,DID520VEX114L 92057 92057-0695 1
JOINT-CHAIN 92058 92058-0044 1
COLLAR,RR AXLE,RH,L=17 92152 92152-0302 1
COLLAR,20X35X18 92152A 92152-0751 1
COLLAR,20.2X27.2X133 92152B 92152-2228 1
DAMPER,SHOCK,RR HUB 92161 92161-0303 4
WASHER,19X32X4 92200 92200-1865 1
NUT,LOCK,FLANGED,10MM 92210 92210-0276 6
PIN-COTTER,4.0X35 550 550AA4035 1
BEARING-BALL 601 601B6205UU 1
O RING,60MM 671 671B2560 1
