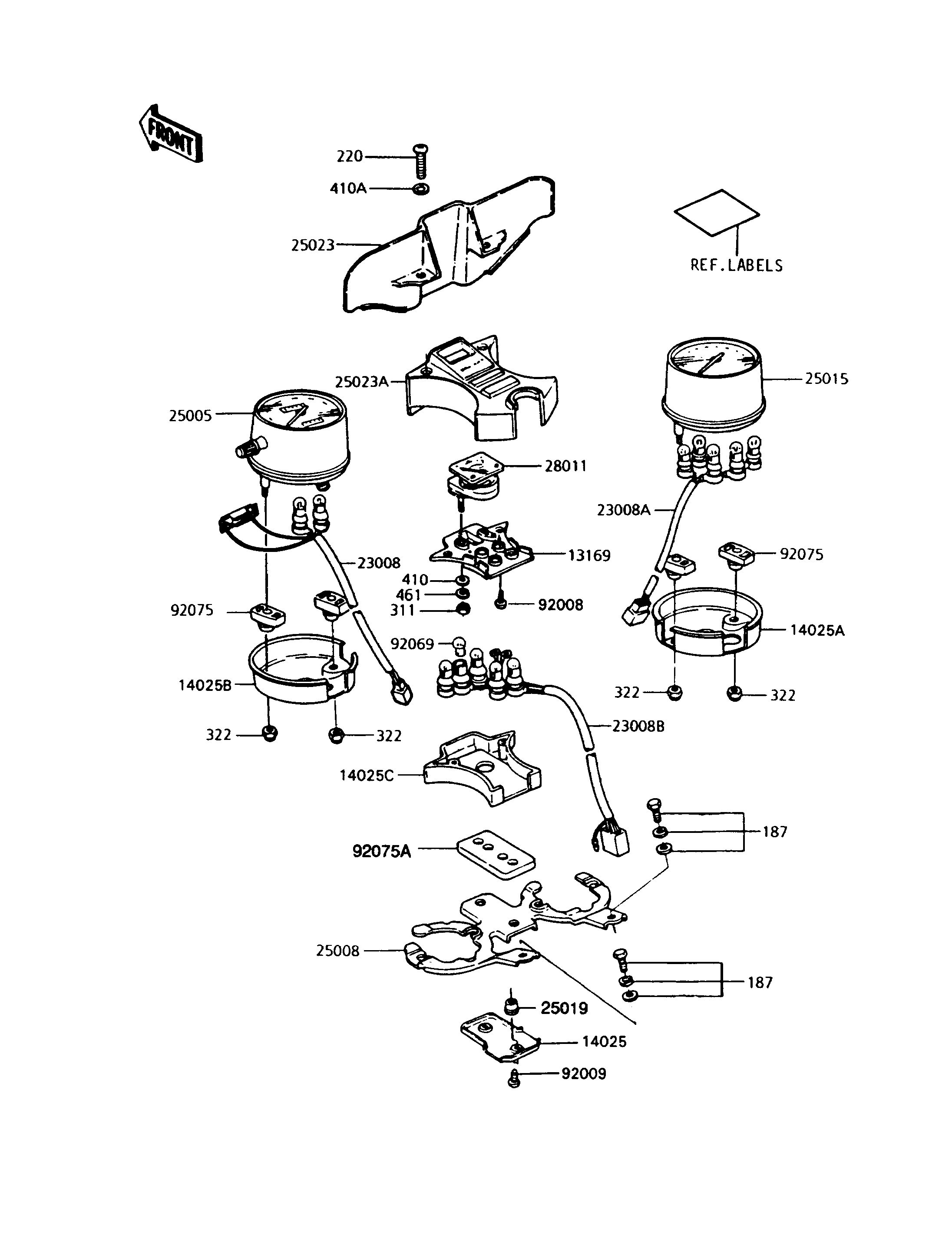

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,SOCKET | 13169 | 13169-1238 | 1 | ||
| COVER,METER BRACKET | 14025 | 14025-1211 | 1 | ||
| COVER,TACHOMETER | 14025A | 14025-1458 | 1 | ||
| COVER,SPEEDOMETER | 14025B | 14025-4019 | 1 | ||
| COVER,PILOT BOX,LWR | 14025C | 14025-4020 | 1 | ||
| SOCKET-ASSY,SPEEDOMETER | 23008 | 23008-1142 | 1 | ||
| SOCKET-ASSY,TACHOMETER | 23008A | 23008-1143 | 1 | ||
| SOCKET-ASSY,FUEL METER | 23008B | 23008-1144 | 1 | ||
| SPEEDOMETER,MPH | 25005 | 25005-1170 | 1 | ||
| BRACKET-METER | 25008 | 25008-4001 | 1 | ||
| TACHOMETER,X1000RPM | 25015 | 25015-1114 | 1 | ||
| DAMPER,METER | 25019 | 25019-023 | 2 | ||
| COVER-METER CASE | 25023 | 25023-4003 | 1 | ||
| COVER-METER CASE,PILOT BOX,UPP | 25023A | 25023-4004 | 1 | ||
| METER,FUEL | 28011 | 28011-1027 | 1 | ||
| SCREW,TAPPING,3.5X12 | 92008 | 92008-012 | 2 | ||
| SCREW,TAPPING,4X10 | 92009 | 92009-1040 | 2 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 12 | ||
| DAMPER,SHOCK,METER | 92075 | 92075-1101 | 4 | ||
| DAMPER,PILOT BOX | 92075A | 92075-1246 | 1 | ||
| BOLT-UPSET-WSP | 187 | 187B0614 | 2 | ||
| SCREW-PAN-CROS | 220 | 220C0445 | 2 | ||
| NUT-HEX | 311 | 311B0400 | 4 | ||
| NUT-CAP | 322 | 322C0500 | 4 | ||
| WASHER-PLAIN-SMALL,4MM | 410 | 410B0400 | 2 | ||
| WASHER-PLAIN-SMALL,4MM,BLACK | 410A | 410F0400 | 2 | ||
| WASHER-SPRING,4MM | 461 | 461F0400 | 2 |
