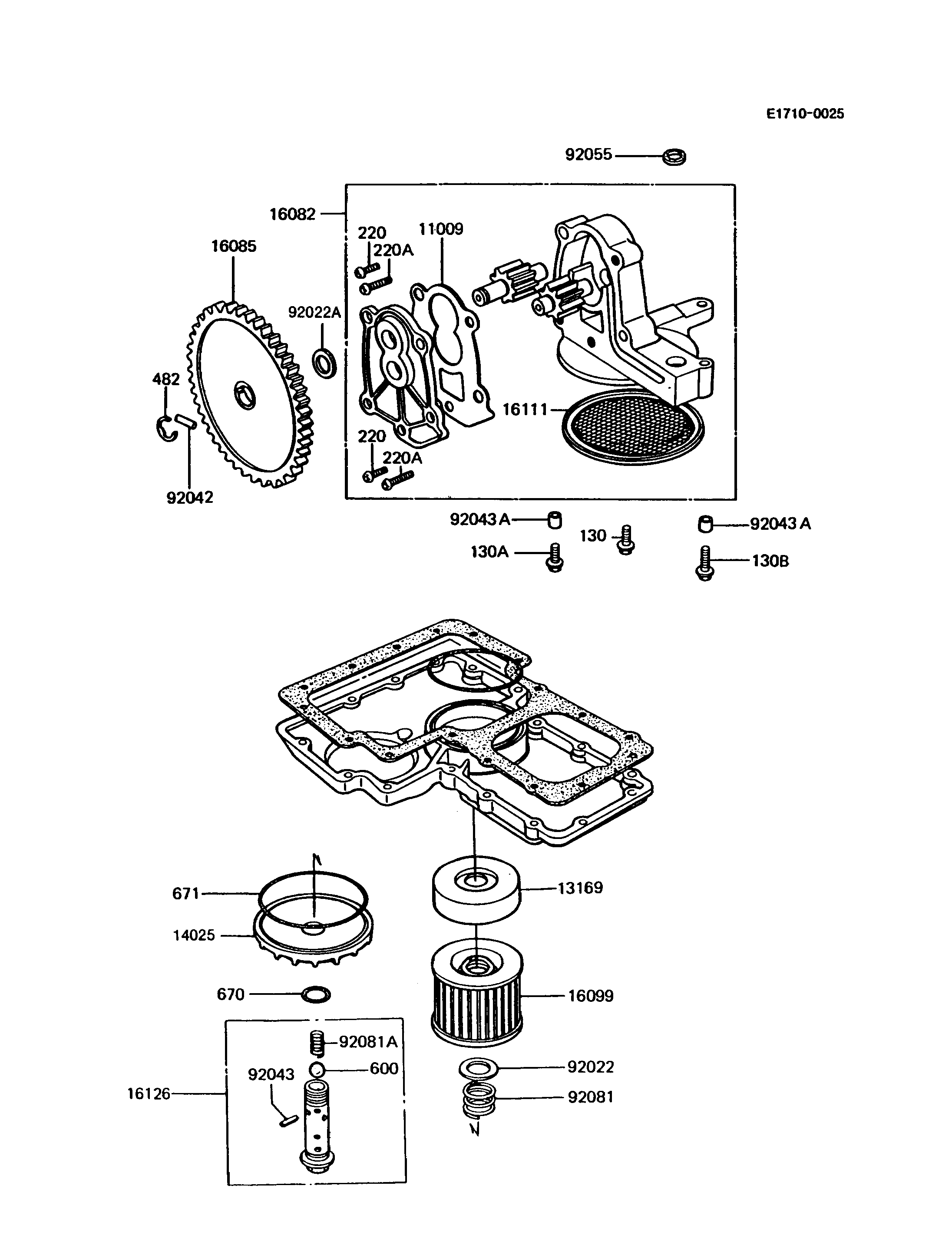

1995 Police 1000 - Oil Pump/Oil Filter
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,OIL PUMP | 11009 | 11009-1029 | 1 | ||
| PLATE,OIL FILTER | 13169 | 13169-1313 | 1 | ||
| COVER,OIL FILTER,F.BLACK | 14025 | 14025-1422 | 1 | ||
| PUMP-ASSY-OIL | 16082 | 16082-1032 | 1 | ||
| GEAR,OIL PUMP,49T | 16085 | 16085-1038 | 1 | ||
| ELEMENT-OIL FILTER | 16099 | 16099-003 | 1 | ||
| FILTER,OIL PUMP | 16111 | 16111-004 | 1 | ||
| VALVE,OIL FILTER | 16126 | 16126-1108 | 1 | ||
| WASHER,20.5X30X1 | 92022 | 92022-1012 | 1 | ||
| WASHER,10.2X18X1.0,SK5 | 92022A | 92022-1415 | 1 | ||
| PIN,DOWEL,4X14.8 | 92042 | 92042-042 | 1 | ||
| PIN,SPRING,2X20 | 92043 | 92043-111 | 1 | ||
| PIN,DOWEL,8X10 | 92043A | 92043-1302 | 2 | ||
| RING-O,OD=18 | 92055 | 92055-048 | 1 | ||
| SPRING,OIL FILTER | 92081 | 92081-1018 | 1 | ||
| SPRING | 92081A | 92081-109 | 1 | ||
| BOLT-FLANGED,6X25 | 130 | 130G0625 | 1 | ||
| BOLT-FLANGED,6X35 | 130A | 130G0635 | 1 | ||
| BOLT-FLANGED,6X45 | 130B | 130G0645 | 1 | ||
| SCREW-PAN-CROS,6X18 | 220 | 220B0618 | 4 | ||
| SCREW-PAN-CROS,6X28 | 220A | 220B0628 | 2 | ||
| CIRCLIP-TYPE-E,7MM | 482 | 482J7000 | 1 | ||
| BALL-STEEL,3/8" | 600 | 600A1200 | 1 | ||
| O RING,16MM | 670 | 670B2016 | 1 | ||
| O RING,90MM | 671 | 671B2590 | 1 |
