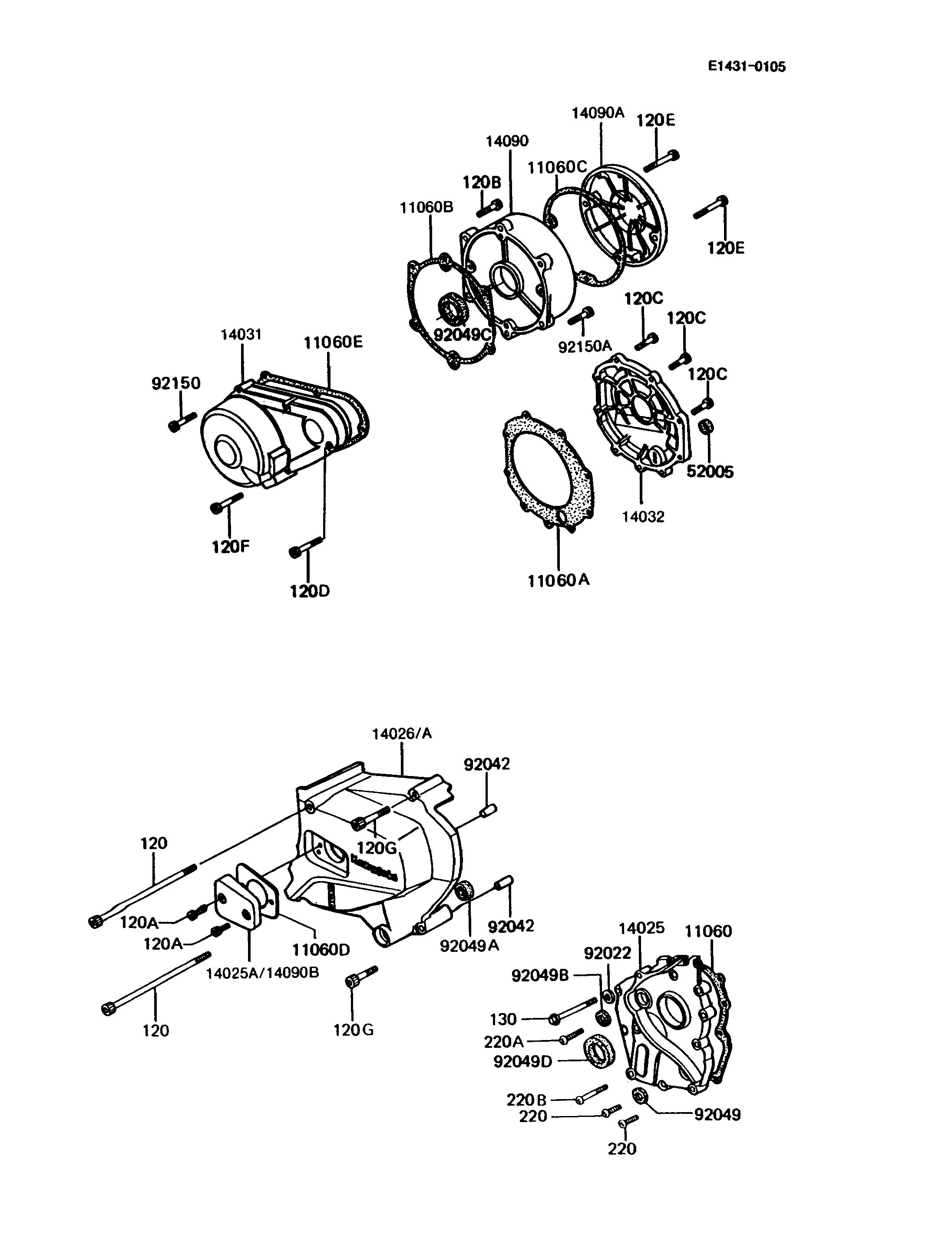

1995 Police 1000 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TRANSMISSION COVER 11060 11060-1069 1
GASKET,CLUTCH COVER 11060A 11060-1070 1
GASKET,RH ENGINE COVER 11060B 11060-1071 1
GASKET,PULSING COIL COVER 11060C 11060-1072 1
GASKET,CLUTCH ADJUSTING COVER 11060D 11060-1073 1
GASKET,GENERATOR COVER 11060E 11060-1075 1
COVER,TRANSMISSION 14025 14025-1240 1
COVER-CHAIN 14026A 14026-1202 1
COVER-GENERATOR 14031 14031-1292 1
COVER-CLUTCH 14032 14032-1375 1
COVER,ENGINE COVER 14090 14090-1420 1
COVER,PULSING COIL 14090A 14090-1421 1
COVER,CLUTCH RELEASE 14090B 14090-1422 1
GAUGE,OIL LEVEL 52005 52005-1009 1
WASHER,6.1X12X1 92022 92022-077 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
SEAL-OIL,SB12205 92049 92049-004 1
SEAL-OIL,CLUTCH RELEASE 92049A 92049-1003 1
SEAL-OIL,SD-8187 92049B 92049-1017 1
SEAL-OIL,SC32487 92049C 92049-1033 1
SEAL-OIL,AE2343F0 92049D 92049-1070 1
BOLT,SOCKET,6X40 92150 92150-1653 1
BOLT,SOCKET,6X22 92150A 92150-1654 3
BOLT-SOCKET 120 120Z06125 2
BOLT-SOCKET 120A 120Z0614 2
BOLT-SOCKET 120B 120Z0622 3
BOLT-SOCKET 120C 120Z0625 9
BOLT-SOCKET 120D 120Z0630 6
BOLT-SOCKET 120E 120Z0635 2
BOLT-SOCKET 120F 120Z0640 1
BOLT-SOCKET 120G 120Z0670 2
BOLT-FLANGED,6X55 130 130G0655 1
SCREW-PAN-CROS,6X20,WHITE 220 220B0620 6
SCREW-PAN-CROS,6X28 220A 220B0628 1
SCREW-PAN-CROS,6X40 220B 220B0640 2
