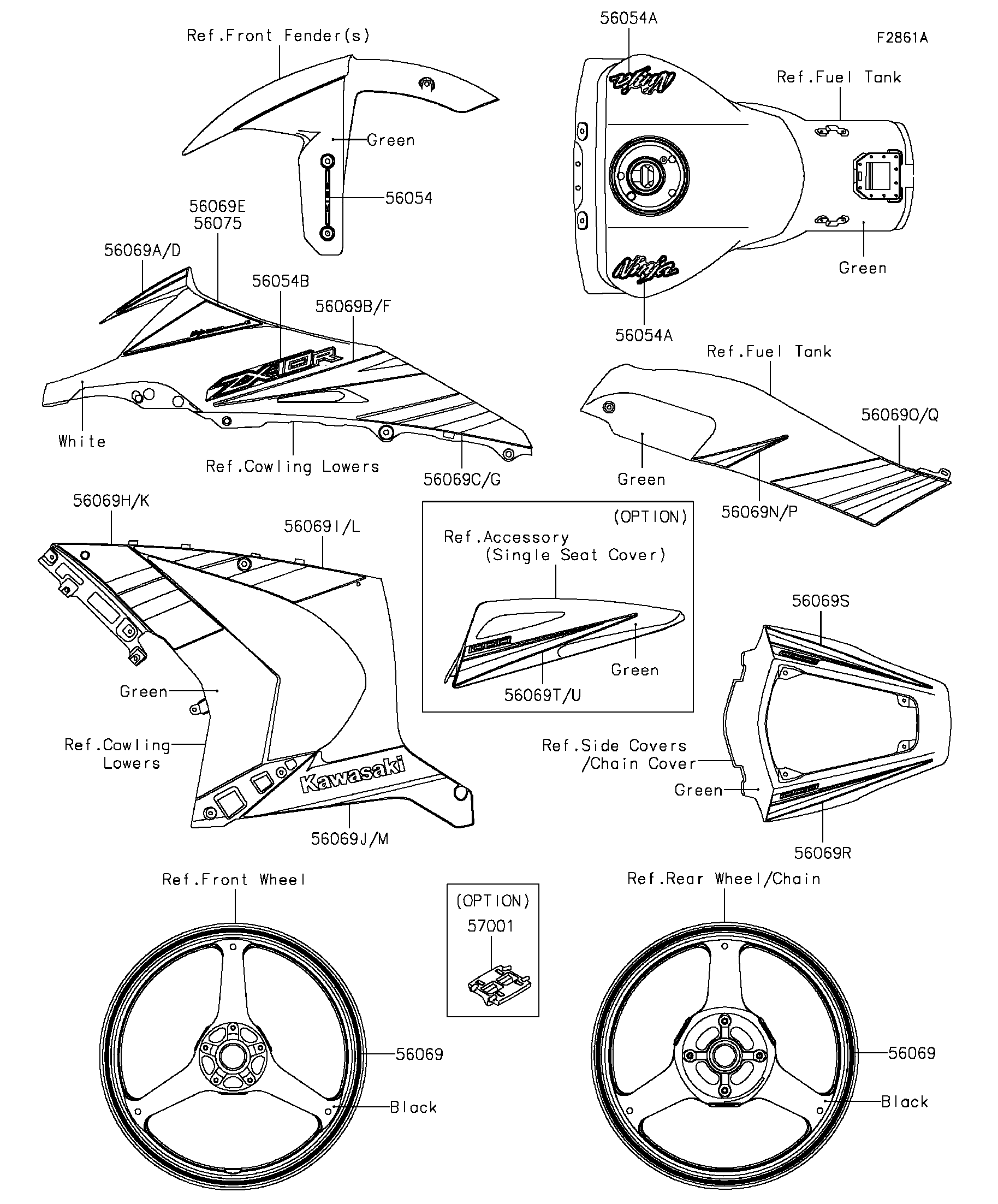

2015 Ninja® ZX™-10R ABS 30th Anniversary Edition - Decals(Green)(KFFA)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054A
56054B
56069
56069
56069A
56069B
56069C
56069D
56069E
56069F
56069G
56069H
56069I
56069J
56069K
56069L
56069M
56069N
56069O
56069P
56069Q
56069R
56069S
56069T
56069U
56075
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,KIBS 56054 56054-0919 2
MARK,FUEL TANK,NINJA 56054A 56054-1414 2
MARK,UPP COWL.,ZX-10R 56054B 56054-1558 2
PATTERN,WHEEL,GREEN,4X1353 56069 56069-0103 4
PATTERN,UPP COWL.,LH,UPP 56069A 56069-7605 1
PATTERN,UPP COWL.,LH,FR 56069B 56069-7607 1
PATTERN,UPP COWL.,LH,RR 56069C 56069-7608 1
PATTERN,UPP COWL.,RH,UPP 56069D 56069-7609 1
PATTERN,UPP COWL.,RH,LWR 56069E 56069-7610 1
PATTERN,UPP COWL.,RH,FR 56069F 56069-7611 1
PATTERN,UPP COWL.,RH,RR 56069G 56069-7612 1
PATTERN,LWR COWL.,LH,FR 56069H 56069-7613 1
PATTERN,LWR COWL.,LH,RR 56069I 56069-7614 1
PATTERN,LWR COWL.,LH,KAWASAKI 56069J 56069-7615 1
PATTERN,LWR COWL.,RH,FR 56069K 56069-7616 1
PATTERN,LWR COWL.,RH,RR 56069L 56069-7617 1
PATTERN,LWR COWL.,RH,KAWASAKI 56069M 56069-7618 1
PATTERN,TANK COVER,LH,UPP 56069N 56069-7619 1
PATTERN,TANK COVER,LH,LWR 56069O 56069-7620 1
PATTERN,TANK COVER,RH,UPP 56069P 56069-7621 1
PATTERN,TANK COVER,RH,LWR 56069Q 56069-7622 1
PATTERN,TAIL COVER,LH 56069R 56069-7623 1
PATTERN,TAIL COVER,RH 56069S 56069-7624 1
PATTERN,SEAT COVER,LH 56069T 56069-7798 1 (OPTION)
PATTERN,SEAT COVER,RH 56069U 56069-7799 1 (OPTION)
PATTERN,UPP COWL.,LH,LWR 56075 56075-0122 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
