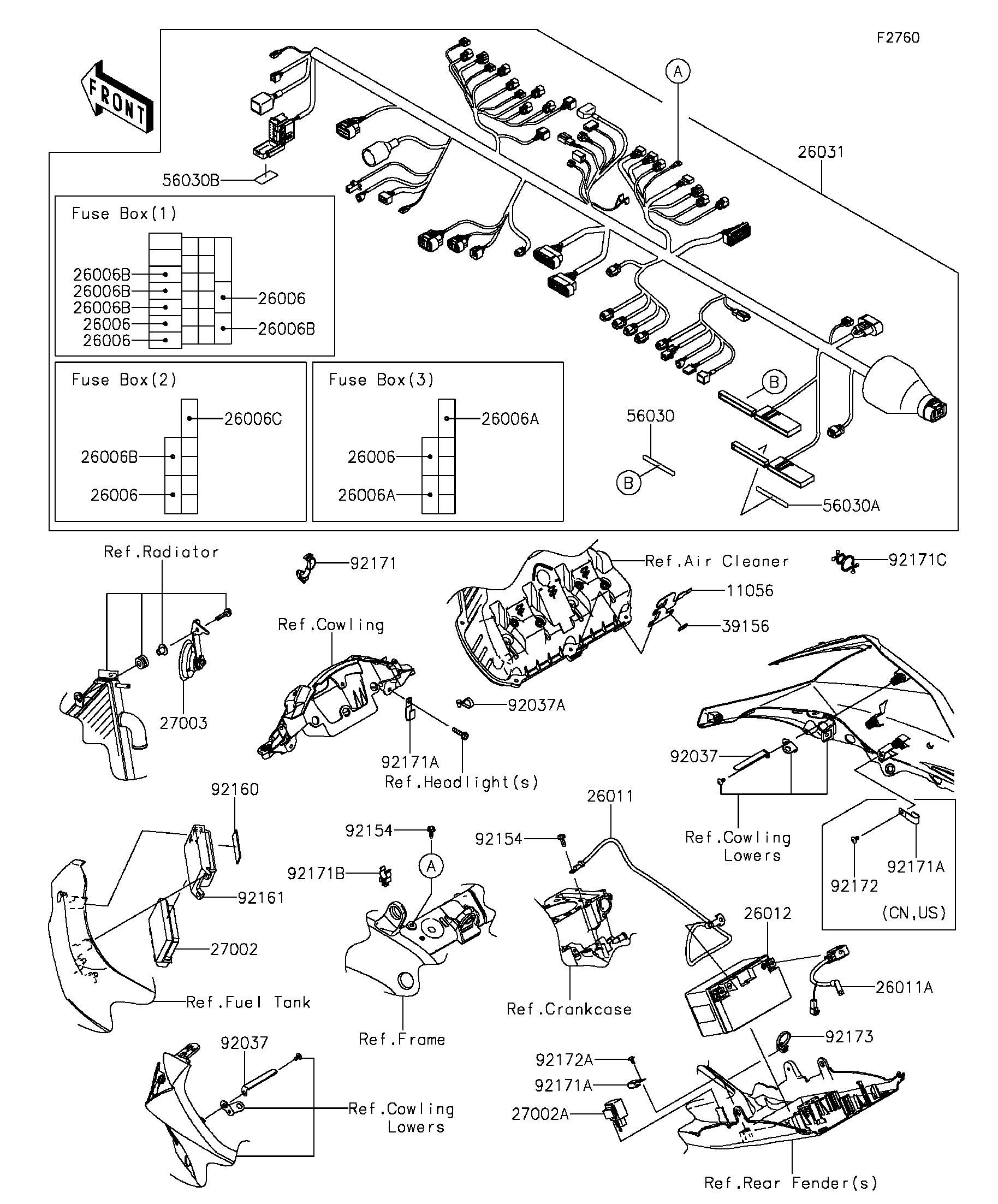

2015 Ninja® ZX™-10R ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11056
26006
26006
26006
26006
26006
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006C
26011
26011A
26012
26031
27002
27002A
27003
39156
56030
56030A
56030B
92037
92037
92037A
92154
92154
92160
92161
92171
92171A
92171A
92171A
92171B
92171C
92172
92172A
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-0384 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 5
FUSE,MINI BLADE,25A,NATURAL 26006A 26006-0020 2
FUSE,MINI BLADE,10A,RED 26006B 26006-1078 5
FUSE,MINI BLADE,30A,GREEN 26006C 26006-1080 1
WIRE-LEAD,BATTERY(-) 26011 26011-0298 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0316 1
BATTERY,YTZ10S,12V 8.6AH 26012 26012-0564 1
HARNESS,MAIN 26031 26031-1717 1
RELAY-ASSY 27002 27002-0007 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1097 1
HORN 27003 27003-0073 1
PAD,HEAT GUARD 39156 39156-0389 1
LABEL,FUSE BOX2 56030 56030-0399 1
LABEL,FUSE BOX3 56030A 56030-0400 1
LABEL,FUSE BOX1 56030B 56030-0755 1
CLAMP 92037 92037-1679 2
CLAMP,SPEED,L=80.5 92037A 92037-1903 1
BOLT,FLANGED,6X16 92154 92154-0551 2
DAMPER 92160 92160-1075 1
DAMPER,RELAY BOX 92161 92161-0909 1
CLAMP,CLIP,DIA=20 92171 92171-0068 1
CLAMP 92171A 92171-0305 2 CA
CLAMP 92171A 92171-0305 3 CN,US
CLAMP 92171B 92171-0687 1
CLAMP 92171C 92171-1176 1
SCREW,TAPPING,5X10 92172 92172-0262 1 CN,US
SCREW,TAPPING,5X10 92172A 92172-0335 1
CLAMP 92173 92173-0791 1
