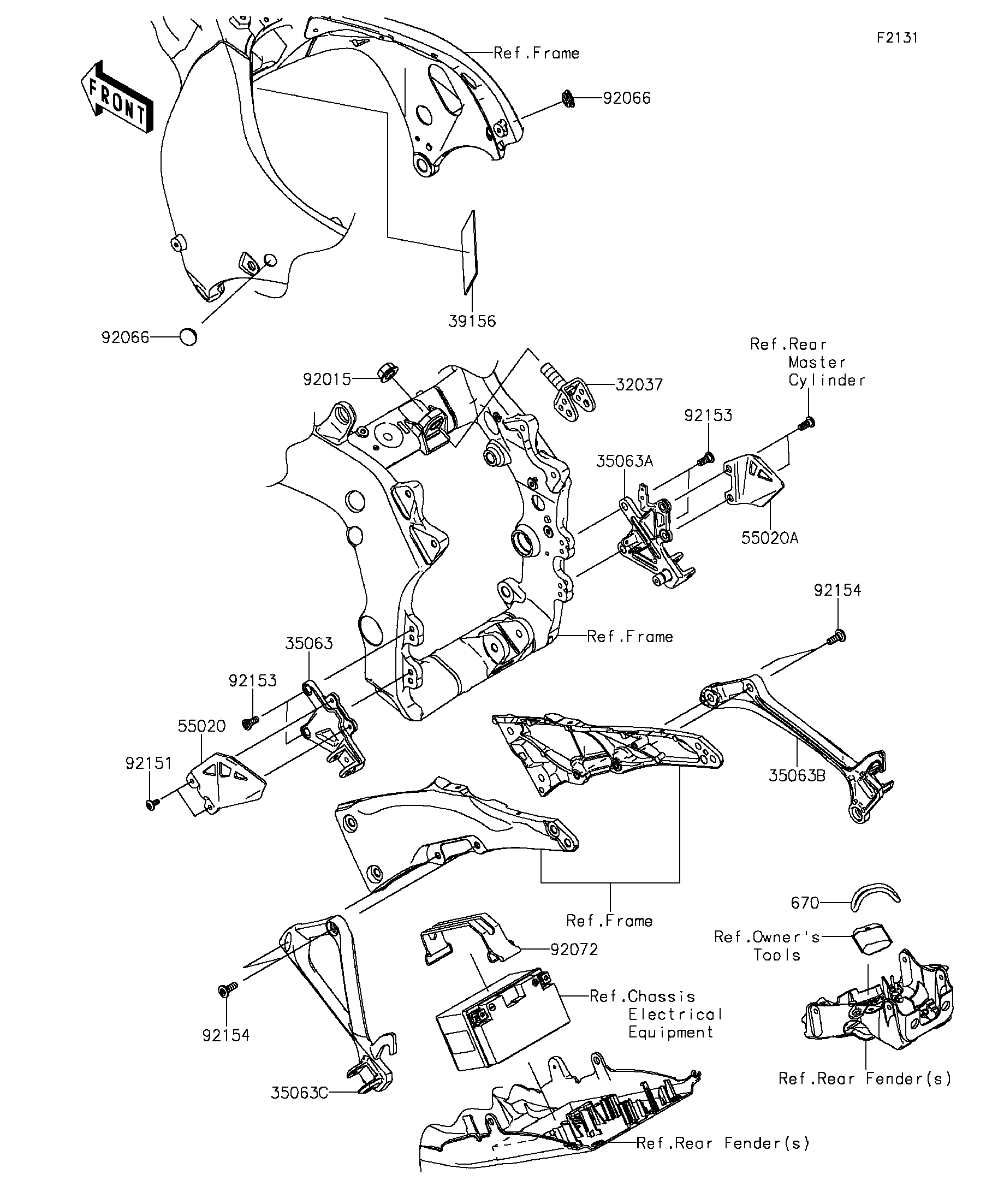

2015 Ninja® ZX™-10R ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
32037
35063
35063A
35063B
35063C
39156
55020
55020A
92015
92066
92066
92072
92151
92153
92153
92154
92154
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-SHOCKABSORBER 32037 32037-0149 1
STAY,FR STEP,LH,F.S.BLACK 35063 35063-0697-18R 1
STAY,FR STEP,RH,F.S.BLACK 35063A 35063-0698-18R 1
STAY,RR STEP,RH,F.S.BLACK 35063B 35063-0700-18R 1
STAY,RR STEP,LH,F.S.BLACK 35063C 35063-0852-18R 1
PAD,50X115X2 39156 39156-0923 1
GUARD,FR STEP,LH 55020 55020-0569 1
GUARD,FR STEP,RH 55020A 55020-0570 1
NUT,FLANGED,16MM 92015 92015-1316 1
PLUG,17MM 92066 92066-1320 2
BAND,L=168 92072 92072-1306 1
BOLT,SOCKET,6X14 92151 92151-1654 2
BOLT,SOCKET,8X20 92153 92153-1621 4
BOLT,SOCKET,8X23 92154 92154-0300 4
O RING,54.6X5.7 670 670B5055 1
