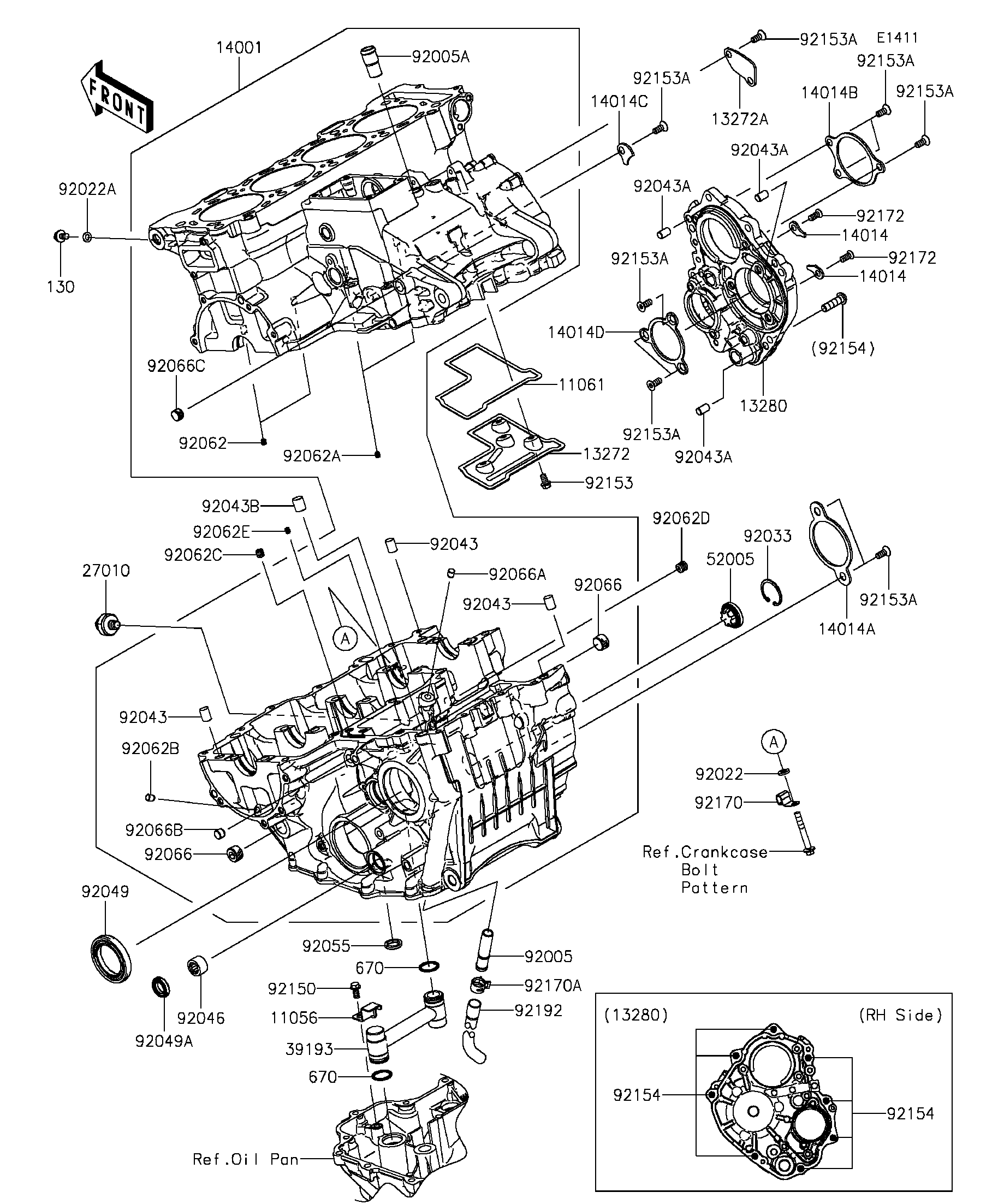

Parts Diagrams |
11056
11056
11061
11061
13272
13272
13272A
13272A
13280
13280
14001
14001
14014
14014
14014
14014
14014A
14014A
14014B
14014B
14014C
14014C
14014D
14014D
27010
27010
39193
39193
52005
52005
92005
92005
92005A
92005A
92022
92022
92022A
92022A
92033
92033
92043
92043
92043
92043
92043
92043
92043A
92043A
92043A
92043A
92043A
92043A
92043B
92043B
92046
92046
92049
92049
92049A
92049A
92055
92055
92062
92062
92062A
92062A
92062B
92062B
92062C
92062C
92062D
92062D
92062E
92062E
92066
92066
92066
92066
92066A
92066A
92066B
92066B
92066C
92066C
92150
92150
92153
92153
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92154
92154
92154
92154
92170
92170
92170A
92170A
92172
92172
92172
92172
92192
92192
130
130
670
670
670
670
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,OIL PIPE | 11056 | 11056-0189 | 1 | ||
| GASKET,BREATHER ROOM | 11061 | 11061-0435 | 1 | ||
| PLATE,BREATHER ROOM | 13272 | 13272-0886 | 1 | ||
| PLATE | 13272A | 13272-0887 | 1 | ||
| HOLDER,TRANSMISSION | 13280 | 13280-0744 | 1 | ||
| SET-CRANKCASE | 14001 | 14001-0598 | 1 | ||
| PLATE-POSITION | 14014 | 14014-0042 | 2 | ||
| PLATE-POSITION | 14014A | 14014-0044 | 1 | ||
| PLATE-POSITION | 14014B | 14014-0046 | 1 | ||
| PLATE-POSITION | 14014C | 14014-0559 | 1 | ||
| PLATE-POSITION | 14014D | 14014-0560 | 1 | ||
| SWITCH,OIL PRESSURE | 27010 | 27010-1313 | 1 | ||
| PIPE-OIL | 39193 | 39193-0061 | 1 | ||
| GAUGE | 52005 | 52005-1120 | 1 | ||
| FITTING | 92005 | 92005-0126 | 1 | ||
| FITTING,BREATHER | 92005A | 92005-1238 | 1 | ||
| WASHER,6.5X13X2.0 | 92022 | 92022-1523 | 1 | ||
| WASHER,6.2X11X1 | 92022A | 92022-304 | 1 | ||
| RING-SNAP | 92033 | 92033-1305 | 1 | ||
| PIN,10X14 | 92043 | 92043-1506 | 3 | ||
| PIN,8X14 | 92043A | 92043-1567 | 3 | ||
| PIN,10.1X12X14 | 92043B | 92043-4009 | 1 | ||
| BEARING-NEEDLE,HK1412FM | 92046 | 92046-0043 | 1 | ||
| SEAL-OIL,TC38 57 8 | 92049 | 92049-0068 | 1 | ||
| SEAL-OIL,TC14245 | 92049A | 92049-1520 | 1 | ||
| RING-O | 92055 | 92055-0211 | 1 | ||
| NOZZLE | 92062 | 92062-0004 | 2 | ||
| NOZZLE | 92062A | 92062-0010 | 2 | ||
| NOZZLE | 92062B | 92062-0012 | 1 | ||
| NOZZLE,8X8 | 92062C | 92062-0020 | 1 | ||
| NOZZLE,10X10 | 92062D | 92062-0021 | 1 | ||
| NOZZLE,6X8,SILVER | 92062E | 92062-1081 | 1 | ||
| PLUG | 92066 | 92066-0156 | 2 | ||
| PLUG,OIL LINE,7.2X8 | 92066A | 92066-1012 | 1 | ||
| PLUG | 92066B | 92066-1013 | 1 | ||
| PLUG | 92066C | 92066-1110 | 1 | ||
| BOLT,FLANGED-SMALL,6X12 | 92150 | 92150-1841 | 1 | ||
| BOLT,6X10 | 92153 | 92153-0381 | 4 | ||
| BOLT,6X11.7 | 92153A | 92153-0848 | 11 | ||
| BOLT,TORX,8X28 | 92154 | 92154-0415 | 8 | ||
| CLAMP | 92170 | 92170-1804 | 1 | ||
| CLAMP | 92170A | 92170-1938 | 1 | ||
| SCREW,TORX,6X14 | 92172 | 92172-0384 | 2 | ||
| TUBE,10.5X13X80 | 92192 | 92192-0985 | 1 | ||
| BOLT-FLANGED,6X10 | 130 | 130BD0610 | 1 | ||
| O RING,18MM | 670 | 670D2018 | 2 |
