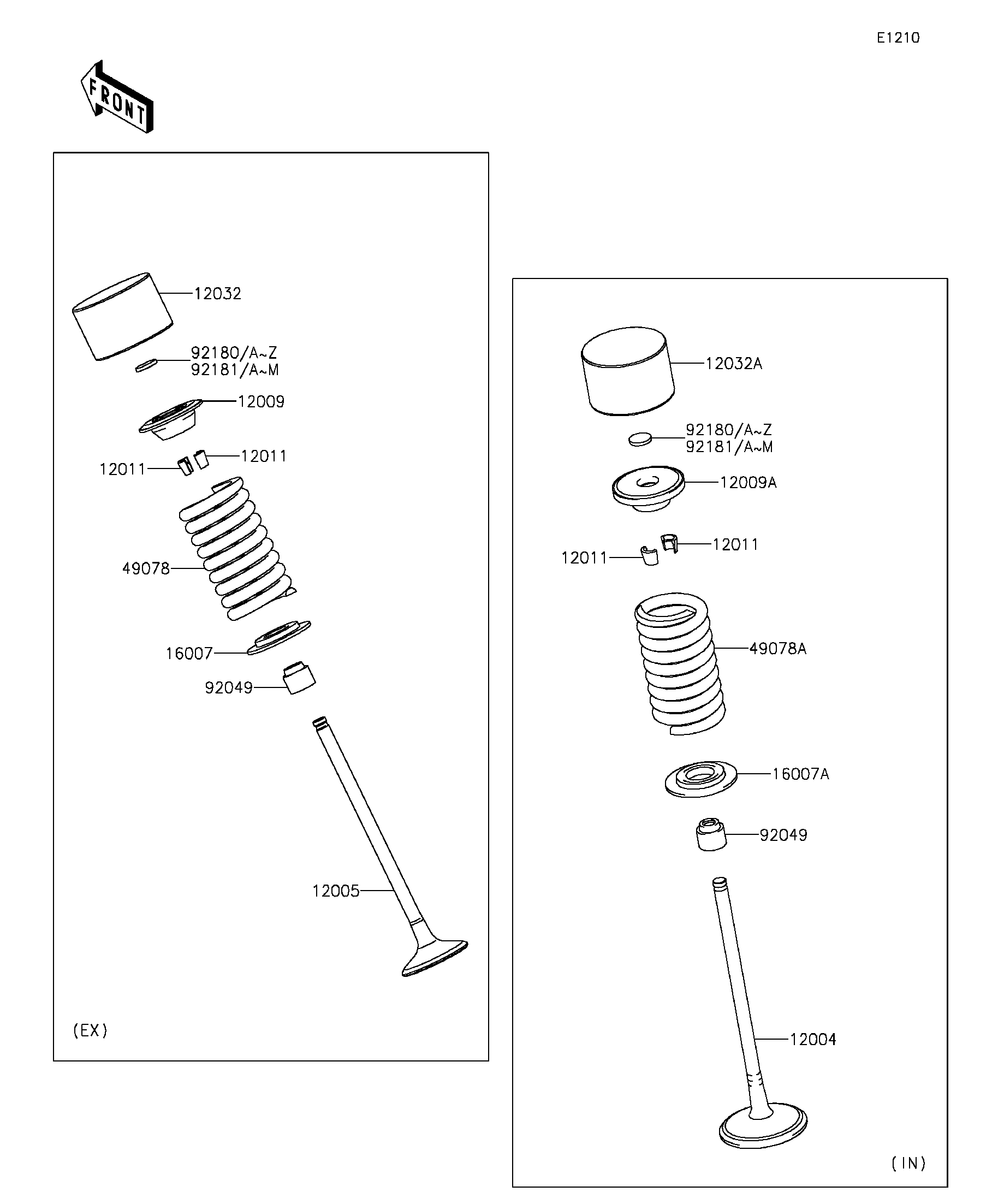

2015 Ninja® ZX™-10R ABS - Valve(s)

DOWNLOAD PDF
SELECT A NEW PART
12004
12004
12005
12005
12009
12009
12009A
12009A
12011
12011
12011
12011
12011
12011
12011
12011
12032
12032
12032A
12032A
16007
16007
16007A
16007A
49078
49078
49078A
49078A
92049
92049
92049
92049
92180
92180
92180
92180
92180A
92180A
92180A
92180A
92180B
92180B
92180B
92180B
92180C
92180C
92180C
92180C
92180D
92180D
92180D
92180D
92180E
92180E
92180E
92180E
92180F
92180F
92180F
92180F
92180G
92180G
92180G
92180G
92180H
92180H
92180H
92180H
92180I
92180I
92180I
92180I
92180J
92180J
92180J
92180J
92180K
92180K
92180K
92180K
92180L
92180L
92180L
92180L
92180M
92180M
92180M
92180M
92180N
92180N
92180N
92180N
92180O
92180O
92180O
92180O
92180P
92180P
92180P
92180P
92180Q
92180Q
92180Q
92180Q
92180R
92180R
92180R
92180R
92180S
92180S
92180S
92180S
92180T
92180T
92180T
92180T
92180U
92180U
92180U
92180U
92180V
92180V
92180V
92180V
92180W
92180W
92180W
92180W
92180X
92180X
92180X
92180X
92180Y
92180Y
92180Y
92180Y
92180Z
92180Z
92180Z
92180Z
92181
92181
92181
92181
92181A
92181A
92181A
92181A
92181B
92181B
92181B
92181B
92181C
92181C
92181C
92181C
92181D
92181D
92181D
92181D
92181E
92181E
92181E
92181E
92181F
92181F
92181F
92181F
92181G
92181G
92181G
92181G
92181H
92181H
92181H
92181H
92181I
92181I
92181I
92181I
92181J
92181J
92181J
92181J
92181K
92181K
92181K
92181K
92181L
92181L
92181L
92181L
92181M
92181M
92181M
92181M
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-0044 8
VALVE-EXHAUST 12005 12005-0059 8
RETAINER-VALVE SPRING,EX 12009 12009-0017 8
RETAINER-VALVE SPRING,IN 12009A 12009-0708 8
COLLET 12011 12011-1053 32
TAPPET,D26.5,EX 12032 12032-0013 8
TAPPET,IN 12032A 12032-0015 8
SEAT-SPRING,EX 16007 16007-0003 8
SEAT-SPRING,IN 16007A 16007-0044 8
SPRING-ENGINE VALVE,EX 49078 49078-0078 8
SPRING-ENGINE VALVE,IN 49078A 49078-0709 8
SEAL-OIL,VSB 4.3 7.5 5.3 8.3 92049 92049-1349 16
SHIM,T=1.300 92180 92180-0108 16
SHIM,T=1.325 92180A 92180-0109 AR
SHIM,T=1.350 92180B 92180-0110 AR
SHIM,T=1.375 92180C 92180-0111 AR
SHIM,T=1.400 92180D 92180-0112 AR
SHIM,T=1.425 92180E 92180-0113 AR
SHIM,T=1.450 92180F 92180-0114 AR
SHIM,T=1.475 92180G 92180-0115 AR
SHIM,T=1.500 92180H 92180-0116 AR
SHIM,T=1.525 92180I 92180-0117 AR
SHIM,T=1.550 92180J 92180-0118 AR
SHIM,T=1.575 92180K 92180-0119 AR
SHIM,T=1.600 92180L 92180-0120 AR
SHIM,T=1.625 92180M 92180-0121 AR
SHIM,T=1.650 92180N 92180-0122 AR
SHIM,T=1.675 92180O 92180-0123 AR
SHIM,T=1.700 92180P 92180-0124 AR
SHIM,T=1.725 92180Q 92180-0125 AR
SHIM,T=1.750 92180R 92180-0126 AR
SHIM,T=1.775 92180S 92180-0127 AR
SHIM,T=1.800 92180T 92180-0128 AR
SHIM,T=1.825 92180U 92180-0129 AR
SHIM,T=1.850 92180V 92180-0130 AR
SHIM,T=1.875 92180W 92180-0131 AR
SHIM,T=1.900 92180X 92180-0132 AR
SHIM,T=1.925 92180Y 92180-0133 AR
SHIM,T=1.950 92180Z 92180-0134 AR
SHIM,T=1.975 92181 92180-0135 AR
SHIM,T=2.000 92181A 92180-0136 AR
SHIM,T=2.025 92181B 92180-0137 AR
SHIM,T=2.050 92181C 92180-0138 AR
SHIM,T=2.075 92181D 92180-0139 AR
SHIM,T=2.100 92181E 92180-0140 AR
SHIM,T=2.125 92181F 92180-0141 AR
SHIM,T=2.150 92181G 92180-0142 AR
SHIM,T=2.175 92181H 92180-0143 AR
SHIM,T=2.200 92181I 92180-0144 AR
SHIM,T=2.225 92181J 92180-0145 AR
SHIM,T=2.250 92181K 92180-0146 AR
SHIM,T=2.275 92181L 92180-0147 AR
SHIM,T=2.300 92181M 92180-0148 AR
